CMM-1CO CABLE OIL DEGASSING UNIT

GlobeCore / Products / Custom Equipment / CMM-1CO CABLE OIL DEGASSING UNIT
The СММ-1СО is designed to remove solid particles, gas and moisture from cable oil1, to store portions of prepared cable oil...
    Advantages
    • one unit for all cable oil tasks: drying and degassing of oil, evacuation of cable lines and filling of make-up tanks;
    • improved reliability of OF cable line operation;
    • simple operation and servicing;
    • can be manufactured in stationary (containerized, skid-mounted, under tent) or mobile (castor wheels, trailer) variants.

The СММ-1СО is designed to remove solid particles, gas and moisture from cable oil1, to store portions of prepared cable oil and to add oil to OF cable 2 lines with voltage up to 500 kV. The unit can also be used for evacuation of transformer3 and other equipment.

The unit can process cable oil with the following initial quality:

  • moisture content below 100 ppm;
  • ISO4 4406 purity class -/19/16 or better.

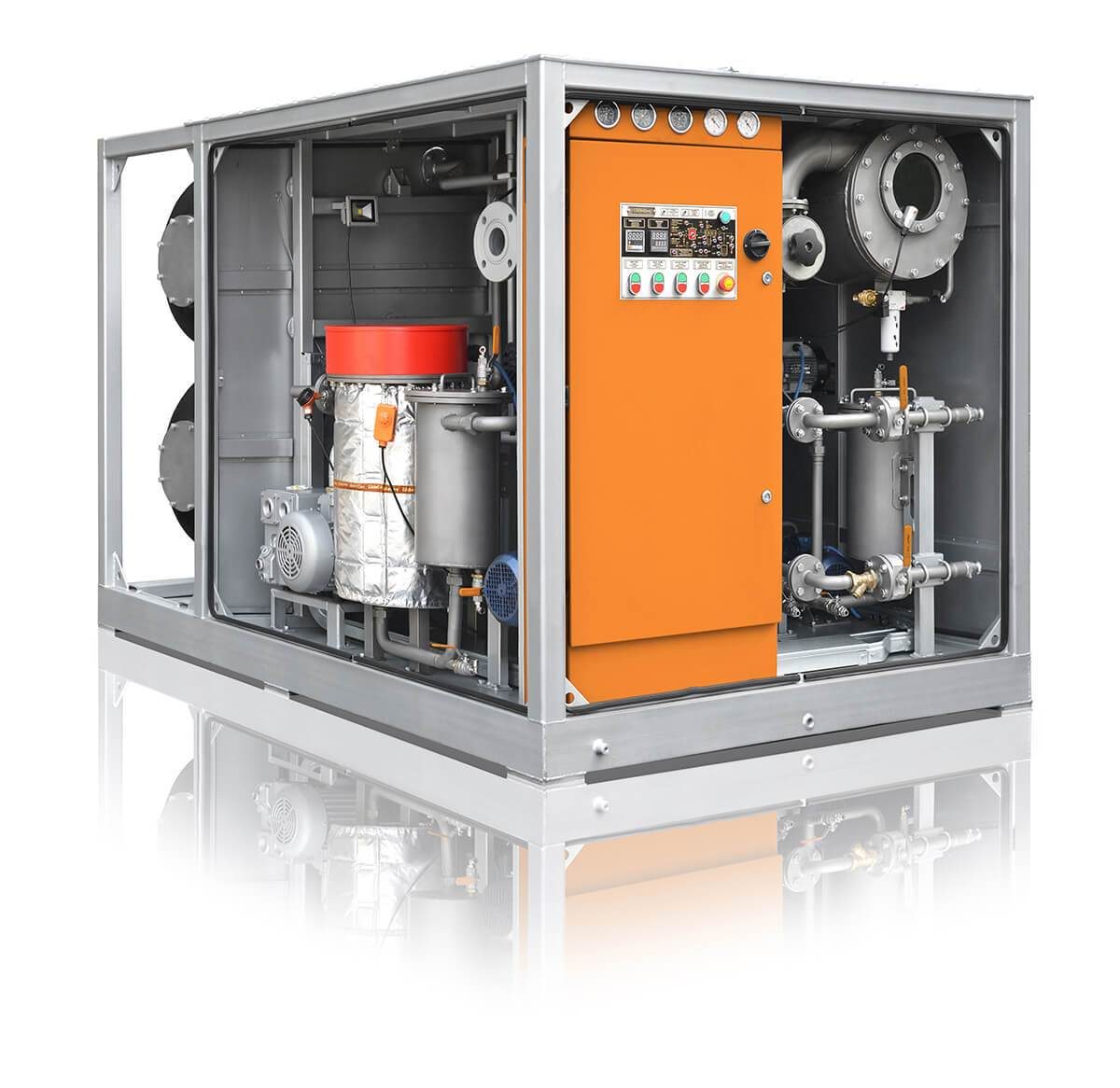

All components of the unit, except for prepared oil storage tanks, are installed in a container. Container front and sides are equipped with access doors for servicing the unit.

The СММ-1СО consists of a vacuum5 chamber, an input pump, a heater, an output pump, coarse and fine filters6, a control cabinet, a vacuum pump7 and a backing pump, as well as oil storage tanks.

Parameter Value
1 Capacity, m3/hour,  not less than 1
2* Processed oil parameters:
– gas content, % vol, not more than 0.05
– moisture content, ppm, not more than 5
– ISO 4406 purity class -/14/12
– particulate matter, g/ton, not more than 8
– filtration, μm 2
– dielectric strength, kV, not less than 70
3 Oil temperature in heating mode, ºС, not more than 70
4 Filtration coefficient ≥50
5 Outlet pressure, (nominal/max), bar 2/12
6  Oil heater power, kW 18
7 Oil heater watt density, W/cm2, max 1.15
8  Max power requirement, kW 27
10  Oil storage tank capacity,  m3 0.7
11 Power supply
– voltage, V Custom
– AC frequency, Hz
12  Dimensions,  mm
– length 2450
– height 1700
– width 1550
13  Weight kg 1800

Note –  * Initial oil quality:

  • gas content below 10.5%vol;
  • moisture content below 0.01% (100 ppm);
  • temperature above 0ºС.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
