CMM-10/15 mobile oil plant

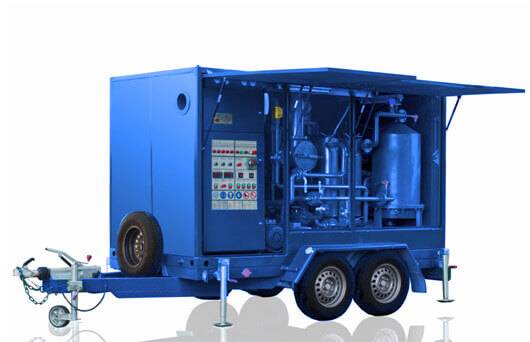

CMM-10-10n mobile oil plant

Mobile oil plant

The unit is built as a self-contained unit with all components and operating assemblies protected by metal panels and easy opening gas-spring loaded doors on the sides and back of the unit. The “Containerized”unit is placed on a tandem axle trailer that is street legal and ready to be towed to any remote  location.

The unit consists of a vacuum chamber, input and output oil pumps, coarse and fine filters, oil trap, oil heater, pipelines with valves, vacuum pump section and a control cabinet.

Parameter

Value

Capacity, m3/hour / gals. per hour:
  • degassing, drying and filtration mode

8/2117

  • heating and filtration mode

15/3970

Processed oil parameters*:
  • volumetric gas content %, max

0.1

  • mass moisture content, g/ton, max

3.0

  • filtration fineness, micron

1

Oil output temperature in heating mode, ºС/ ºF

90/194

Outlet pressure, MPa

0.4

Oil heater power, kW

180

Max power consumption, kW

210

Residual pressure in vacuum chamber during degassing, mbar, max

267

Residual pressure in vacuum chamber during air tightness test, mbar, max

26.7

Air leak into the chamber in 1 hour, mbar max:

267

Electric power parameters
  • voltage, V

415

  • AC frequency, Hz**

50/60

Dimensions, mm/ft, max
  • length

4750/15’7’’

  • height

2100/6’11’’

  • width

2320/7’7’’

Weight, kg/lbs, max

3500/7735

Note: * initial oil parameters:

  • volumetric gas content – below 5%;
  • mass moisture content – below 01% (100 g/ton);
  • temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power
