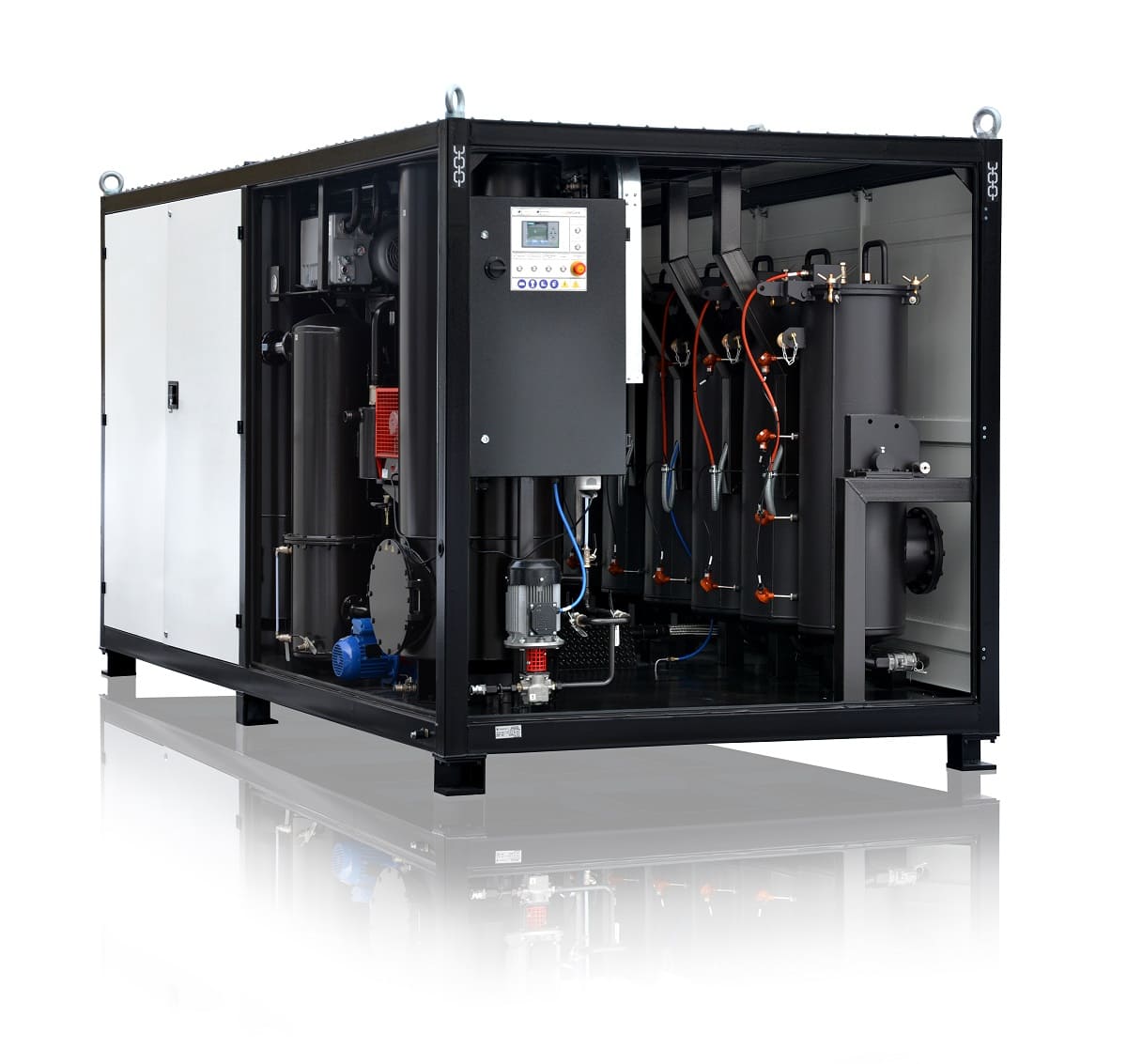

CMM-8RP Sorbent Reactivation Unit

The CMM-8RP is designed for restoration of used sorbent (fuller’s earth or bleaching clay) used in sorbent columns of oil treatment equipment.

In comparison with the CMM-4RP model, the CMM-8RP can restore more than double the amount of sorbent per cycle: 770 kg against 300 kg.

Operating principle

When the sorbent in the columns of oil treatment equipment is saturated, it is loaded into the invertible columns of the CMM-8RP. The reactivation process takes 20 hours. The high temperature and vacuum facilitate the removal of the contaminant from the sorbent. The effluent goes into a moisture separator and then into a buffer tank. The liquid from the separator is removed by a pump.

The sorbent is unloaded by opening the lids of the columns and tilting the columns.

No

Parameter

Value

1

Capacity, kg/20 hours (lbs/20 hours)

770 (1700)

2

Sorbent maximum reactivation time, hours

20

3

Sorbent loss, %

3..10

4

Power requirement, kW

24

5

Total power consumption per one reactivation cycle, kWhour

70

6

Power supply parameters

Customizable

7

Control system

Manual

8

Dimensions, mm (in)

– length

– width

– height



4350 (171)

2100 (83)

2250 (89)

9

Weight, kg (lbs)

3450 (7600)

  • complete removal of oil from the sorbent;
  • reactivated sorbent can again be used to process oil with any degree of contamination;
  • a minimum 10 sorbent reactivation cycles are possible;
  • after the sorbent is completely exhausted, it can be disposed of without harmful environmental effects.
