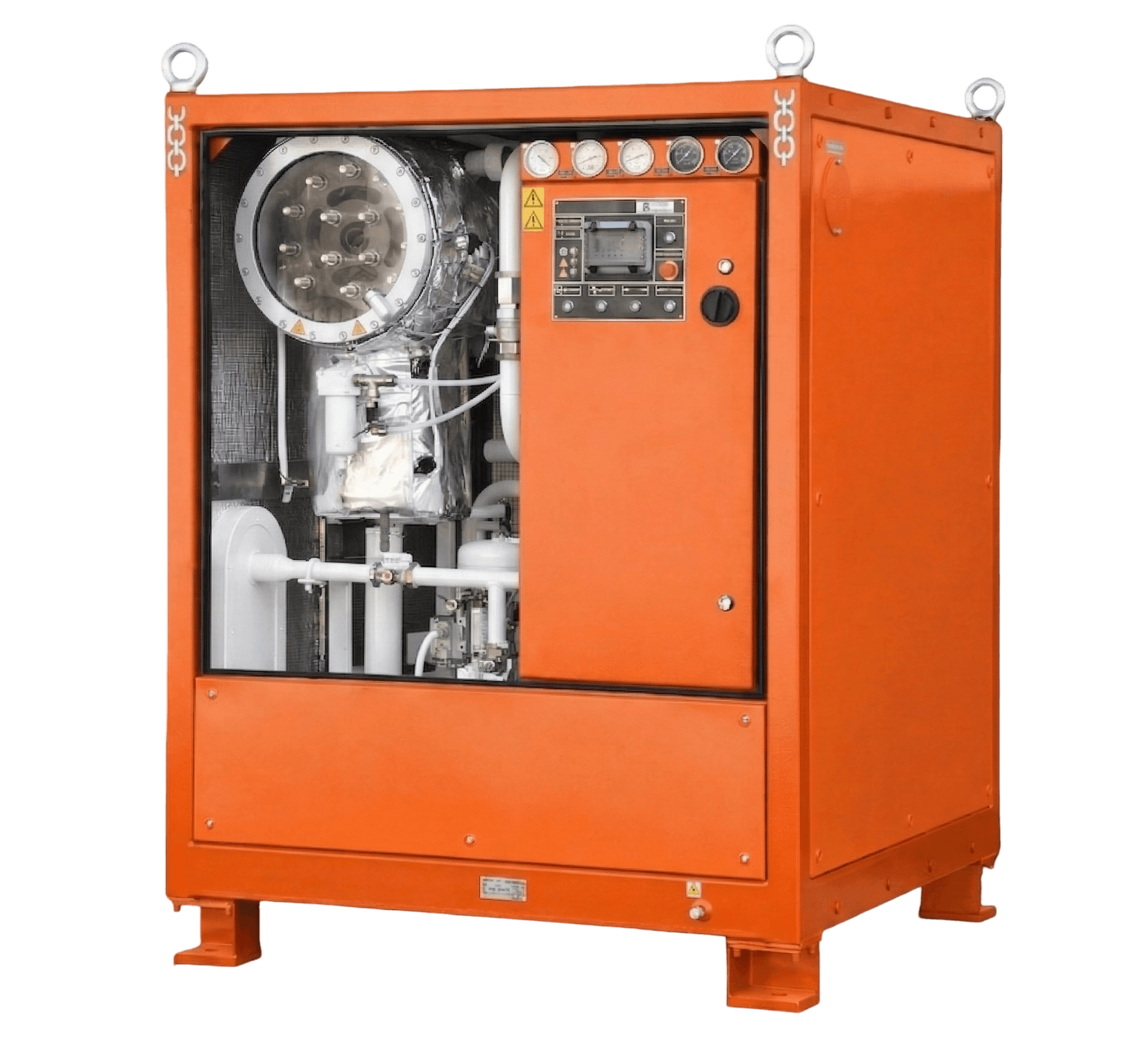

CMM-2.2 Mobile Oil Purification Machine
The CMM-2.2 mobile oil purification machine removes solid particles, water, and gases from dielectric insulating oil. It is used during installation, repair, and operation of high-voltage oil-filled equipment, including power transformers and high-voltage switches. The plant has a capacity of 2.2 m³/hour (582 gallons/hour) in thermal vacuum drying mode and 1.0 m³/hour (265 gallons/hour) in degassing mode.
About CMM-2.2 Mobile Oil Filtration Machine
The CMM-2.2 mobile oil plant is designed to remove solid particles, water, and gases from dielectric insulating oil used in high-voltage oil-filled equipment. The unit is suitable for servicing power transformers, high-voltage switches, and similar equipment during installation, maintenance, and repair.

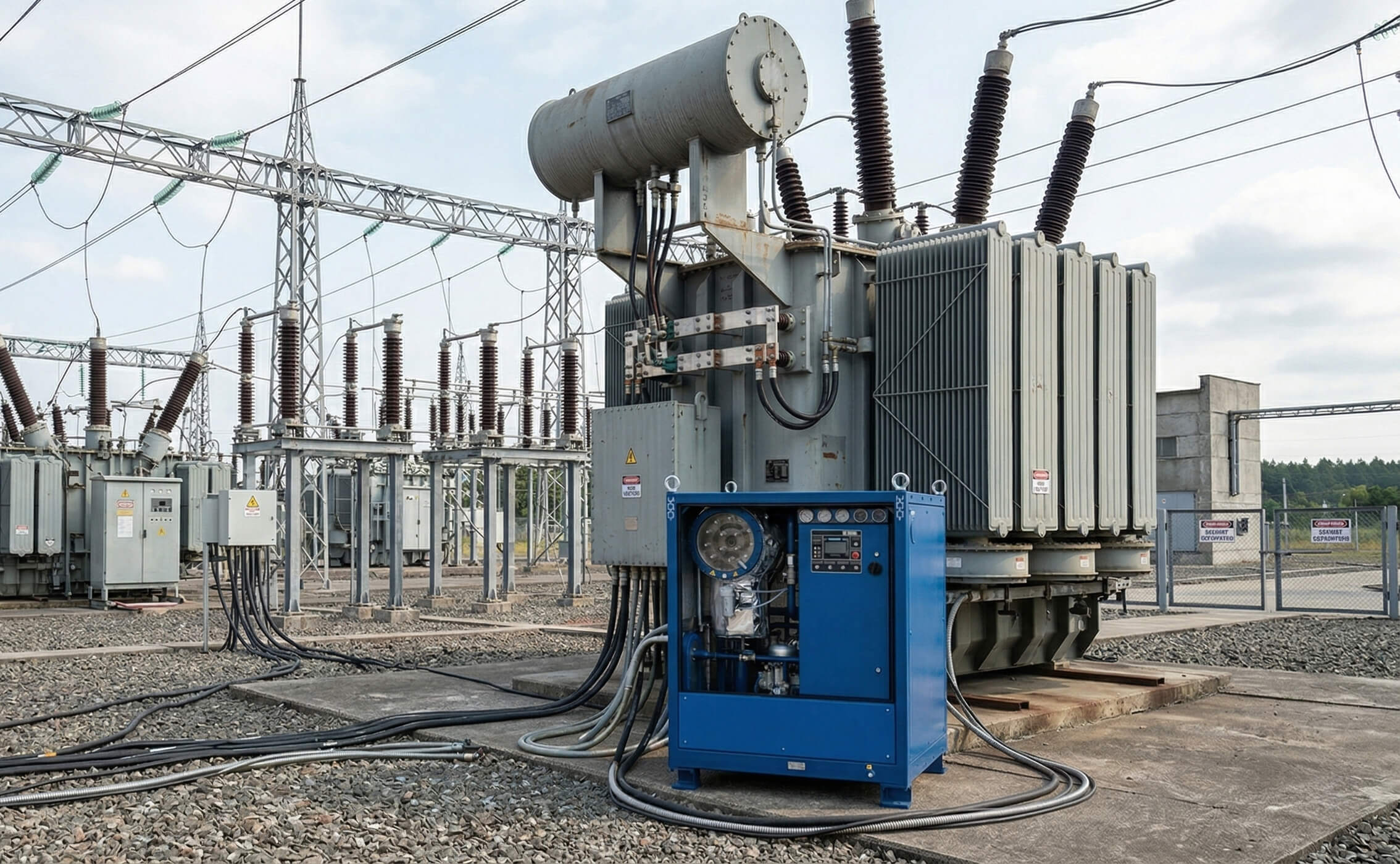

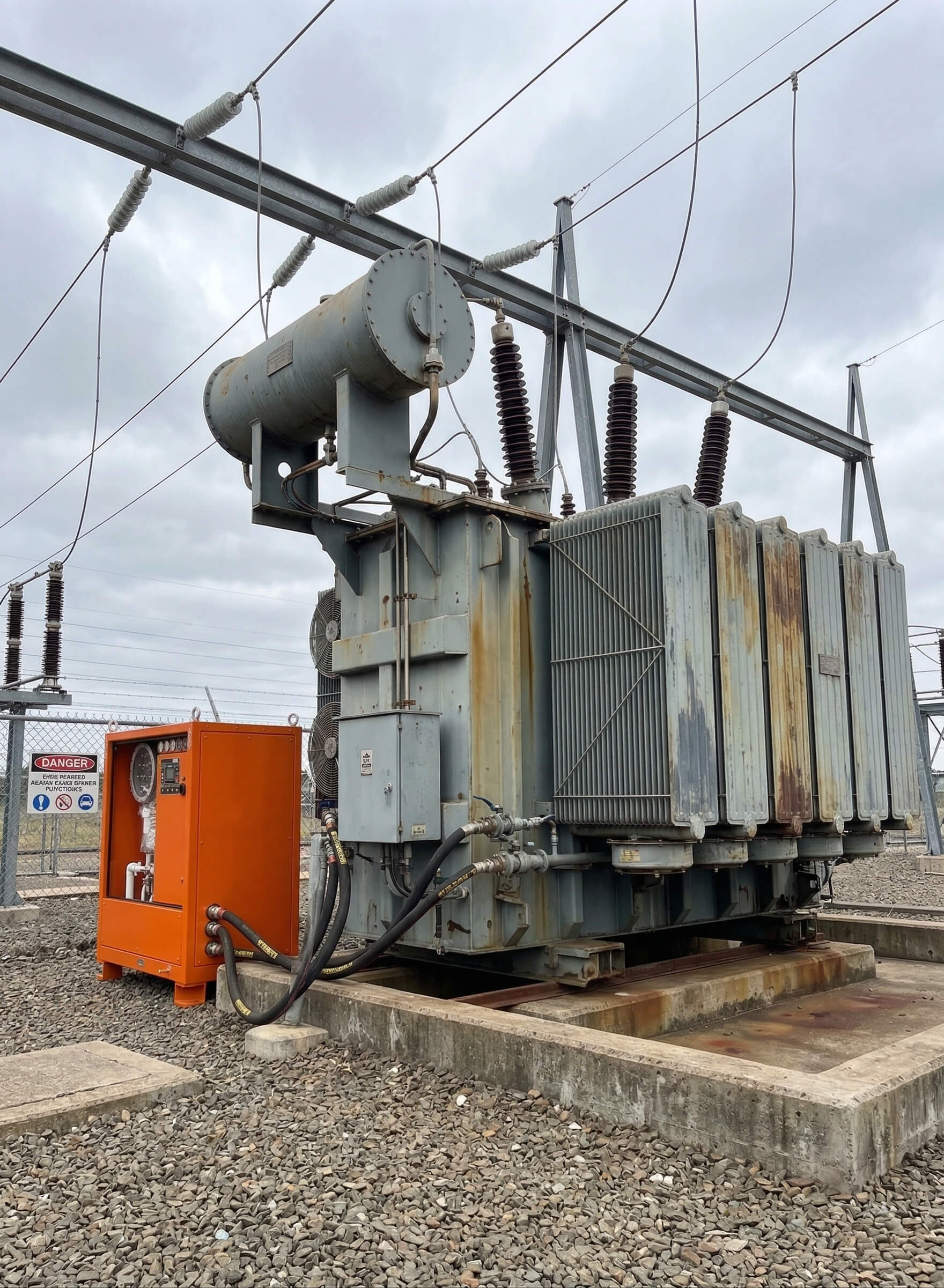

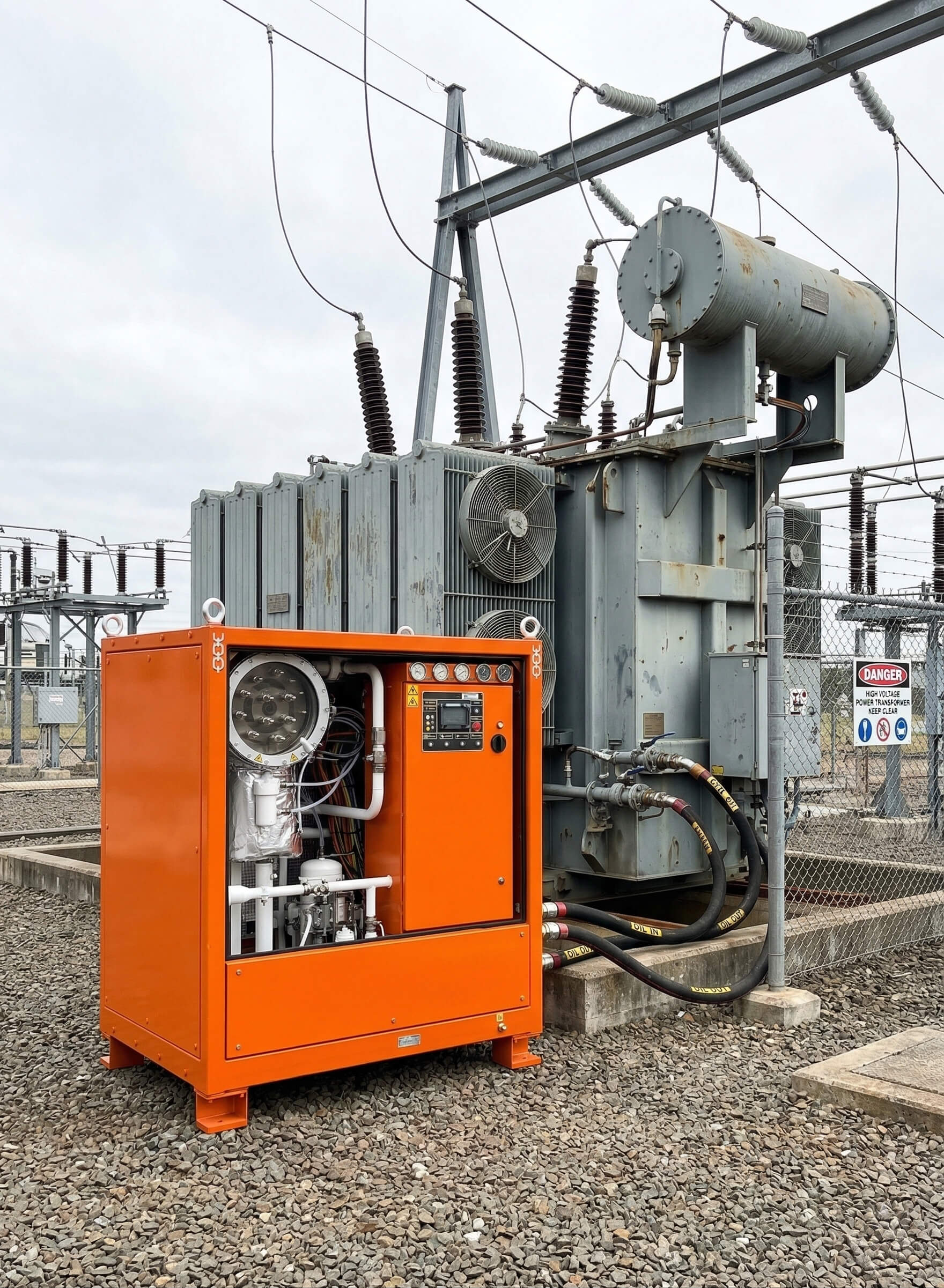

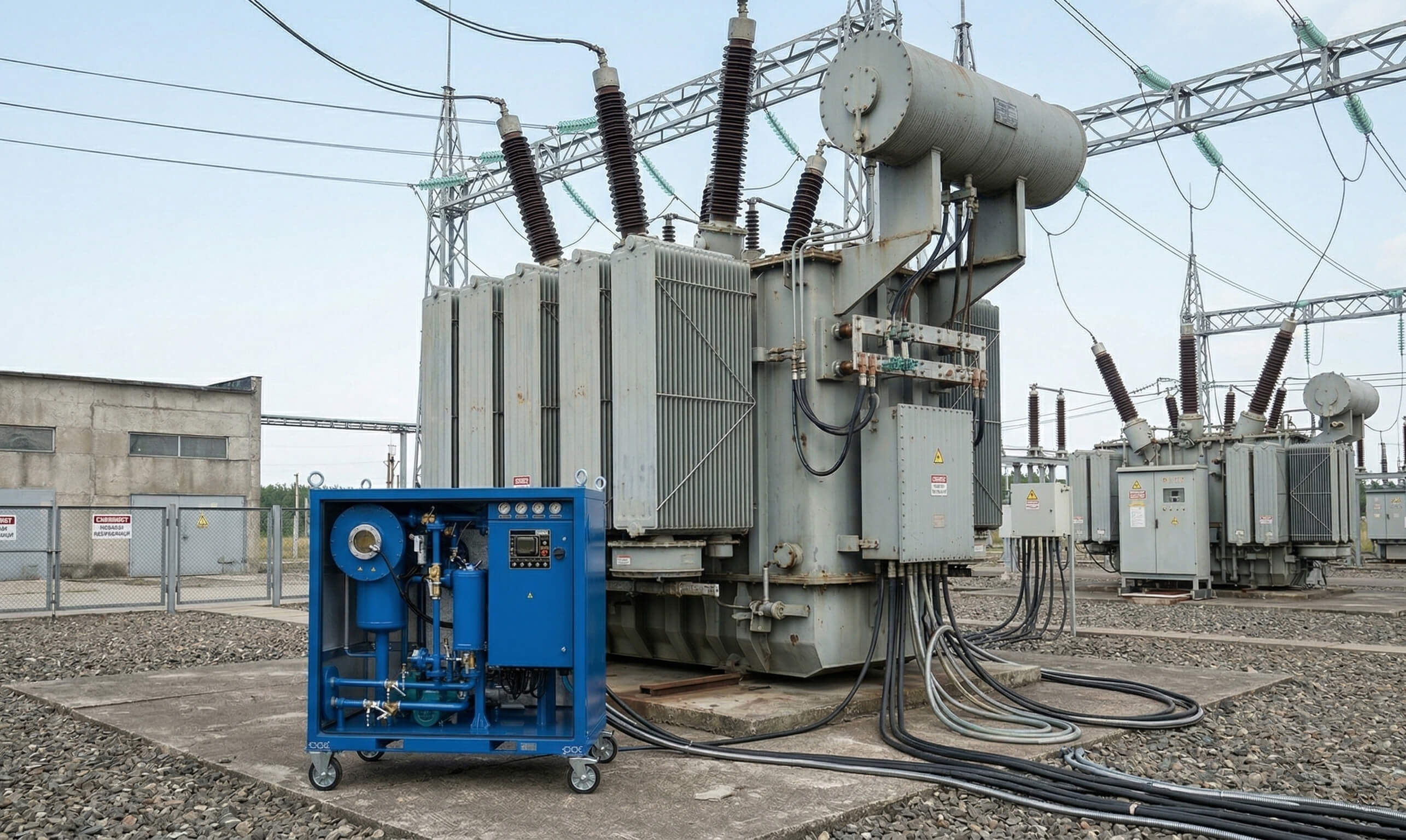

The plant operates in thermal vacuum drying and degassing modes, ensuring effective oil treatment in field and industrial conditions. Its compact mobile design allows operation outdoors, under canopy, or indoors with adequate ventilation, making it a practical solution for on-site oil purification tasks.
Benefits
Specification
| Parameter | Value |
|---|---|
| Capacity gallons per hour | |
| Thermal vacuum drying mode | 582 gallons/hour |
| Degassing mode | 1.0 / 264.7 |
| Processed oil parameters | |
| Mass moisture content, max | 10 g/ton |
| Filtration fineness | 5 micron |
| Total gas content, max | 1.5% |
| Max oil output temperature in heating mode | 60 °C / 140 °F |
| Min outlet pressure | 0.2 MPa |
| Oil heater power, max | 36 kW |
| Max power consumption | 40 kW |
| Electric power | |
| Voltage | 380 V |
| AC frequency | 50/60 Hz |
| Dimensions, mm / ft | |
| Length | 1550 / 5’1’’ |
| Width | 1000 / 3’3’’ |
| Height | 1850 / 6’1’’ |
| Operating conditions | |
| Ambient temperature | +5 to +35 °C / 8 °F to 104 °F |
| Atmospheric pressure | 84 to 106.7 kPa |
| Elevation above sea level | Up to 2000 m / 6561 ft |
| Installation conditions | Outdoors, under canopy, or indoors with adequate ventilation |
Note: Parameters indicated in the table imply the following initial conditions:
- Volumetric gas content below 10.5%
- Mass moisture content below 0.005% (50 g/ton)
- Oil temperature above 0 °C / 32 °F
- With initial heating of oil in the unit to +60 ± 5 °C / 140 ± 9 °F
** All equipment sold in the USA is designed to operate on 60 Hz AC power.
Review
Why dielectric oil purification matters
The condition of dielectric insulating oil directly affects the reliability and safety of high-voltage oil-filled equipment. Solid particles, water, and dissolved gases reduce insulating performance, accelerate aging, and increase the risk of faults during operation.
Regular purification and degassing help maintain oil quality within required limits, support stable equipment performance, and reduce the probability of unplanned shutdowns during installation, repair, and long-term operation.
