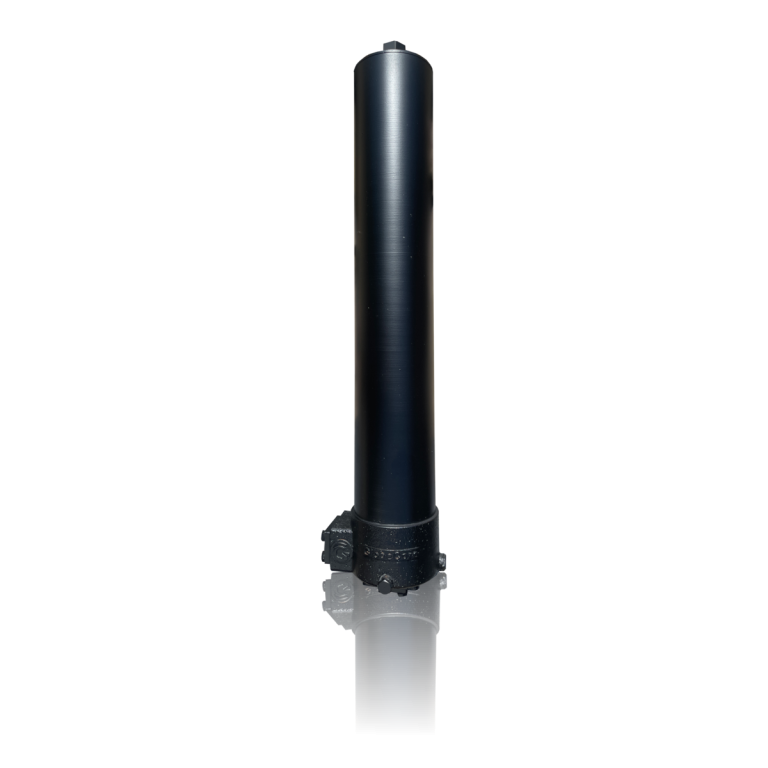

The filter GC Fine with a filtration factor β = 4000.
The
-
Advantages
- High filtration efficiency;
- High filtration accuracy;
- Durable structure.
The GC Fine filter is designed to remove mechanical impurities with a filtration factor β = 4000. The filter’s accuracy can be selected from a nominal range of 0.9 to 22 microns.
The filter is a closed structure consisting of the lower housing, tubular casing, and upper cover. All parts of the housing are tightly sealed together. The filter element is installed inside and sealed with rubber rings.
The lower housing contains connection points for the contaminated and cleaned fluid lines. There are also drainage plugs located there.
The upper cover contains a vent plug.
| # | Parameter | Value |
| 1 | Production capacity, liters/hour | 12000 |
| 2 | Maximum pressure, bar | 12 |
| 3 | Material of structure | Steel, cast iron |
| 4 | Filter liquid temperature, °C | From -25 to +120 |
| 5 | Process connection | Flanges, Ø30mm |
| 6 | Dimensions, mm: | |
| – Height | 1190 | |
| – Width | 240 | |
| – Depth | 210 | |
| 7 | Weight, kg | 56 |
- High filtration efficiency;
- High filtration accuracy;
- Durable structure.
GC Fine filter with filtration ratio β = 4000 can be used in:
GC Fine filter with filtration ratio β = 4000 can be used in:
- Transformer oil filtration;
- Hydraulic oil filtration;
- Lubricating oil filtration;
- Engine oil filtration;
- Gear oil filtration;
- Compressor oil filtration;
- Turbine oil filtration;
- Fuel oil filtration;
- Diesel fuel filtration (grade #2);
- Kerosene filtration;
- Mineral oil filtration;
- Oil-based fluid filtration;
- Cutting oil filtration;
- Heat transfer oil filtration;
- Brake fluid filtration;
- Coolant oil filtration;
- Insulation oil filtration;
- Transport oil filtration;
- Aviation hydraulic fluid filtration;
- Marine oil filtration;
- Biodegradable oil filtration;
- Metalworking fluid filtration;
- Biolubricant filtration;
- Vegetable oil filtration;
- Silicone oil filtration;
- Esther oil filtration for transformers;
- Low-viscosity oil filtration;
- Soluble oil filtration;
- Industrial oils filtration;
- Rust preventive oil filtration;
- Paper machine oil filtration;
- Textile machine oil filtration;
- Plastic injection mold oil filtration;
- Railroad oil filtration;
- Food-grade oil filtration;
- Pharmaceutical oil filtration;
- Water-glycol fluid filtration;
- Oil-based coolant fluid filtration.
