Unidade de desgaseificação móvel CMM-6/7
The СММ-6/7 is designed for purification of electrical insulating oils, removing water, gas and solid particles, and for transformer evacuation.

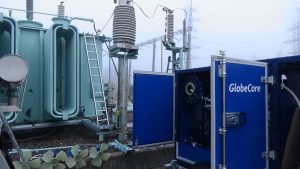

This unit is normally used during installation, operation and servicing of oil-filled high voltage equipment (transformer, high voltage switches etc).
The unit can be operated in the following modes:
- transformer heating: in this mode the oil is filtered and heated;
- oil degassing: this mode is for filtration, drying and degassing oil;
- transformer evacuation.
|
Parameter |
Value |
|
|
Capacity, m3/hour, not less than |
||
|
– degassing, drying and filtration mode |
2-6 |
|
|
– heating and filtration mode |
2-7 |
|
|
* Processed oil parameters: |
||
|
– gas content, % vol, max |
0,1 |
|
|
– water content, ppm, max |
10 |
|
|
– ISO 4406 purity class |
16/14/12 |
|
|
Max oil output temperature in heating mode, ºС |
90 |
|
|
Outlet pressure, MPa |
0,2 |
|
|
Max heater power, kW |
100 |
|
|
Max power consumption, kW |
115 |
|
|
Residual vacuum chamber pressure for degassing, Pa, max |
267 |
|
|
Residual vacuum chamber pressure for seal test, Pa, max |
26,7 |
|
|
Max air leak in 1 hour seal test, Pa |
267 |
|
|
Power supply |
||
|
– voltage, V |
400 |
|
|
– frequency, Hz** |
50/60 |
|
|
Dimensions, mm (sem reboque/com reboque) |
||
|
– length |
2600/3750 |
|
|
– height |
1250/1840 |
|
|
– width |
1500/1940 |
|
|
Weight, kg (sem reboque/com reboque) |
1100/1500 |
|
* Note – Initial oil quality parameters:
- gas content: below 10.5% vol
- water content: below 0.005% (50 g/t)
- temperature: above 0 ºС.
** Todo o equipamento fornecido nos EUA usa 60 Hz de corrente alternada.
- versatility;
- no need to use adsorbents for transformer oil drying;
- no air pollution and no waste streams to dispose of or store;
- simple operation and servicing;
- best oil quality even after one processing cycle;
- low power requirements;
- low noise levels.
