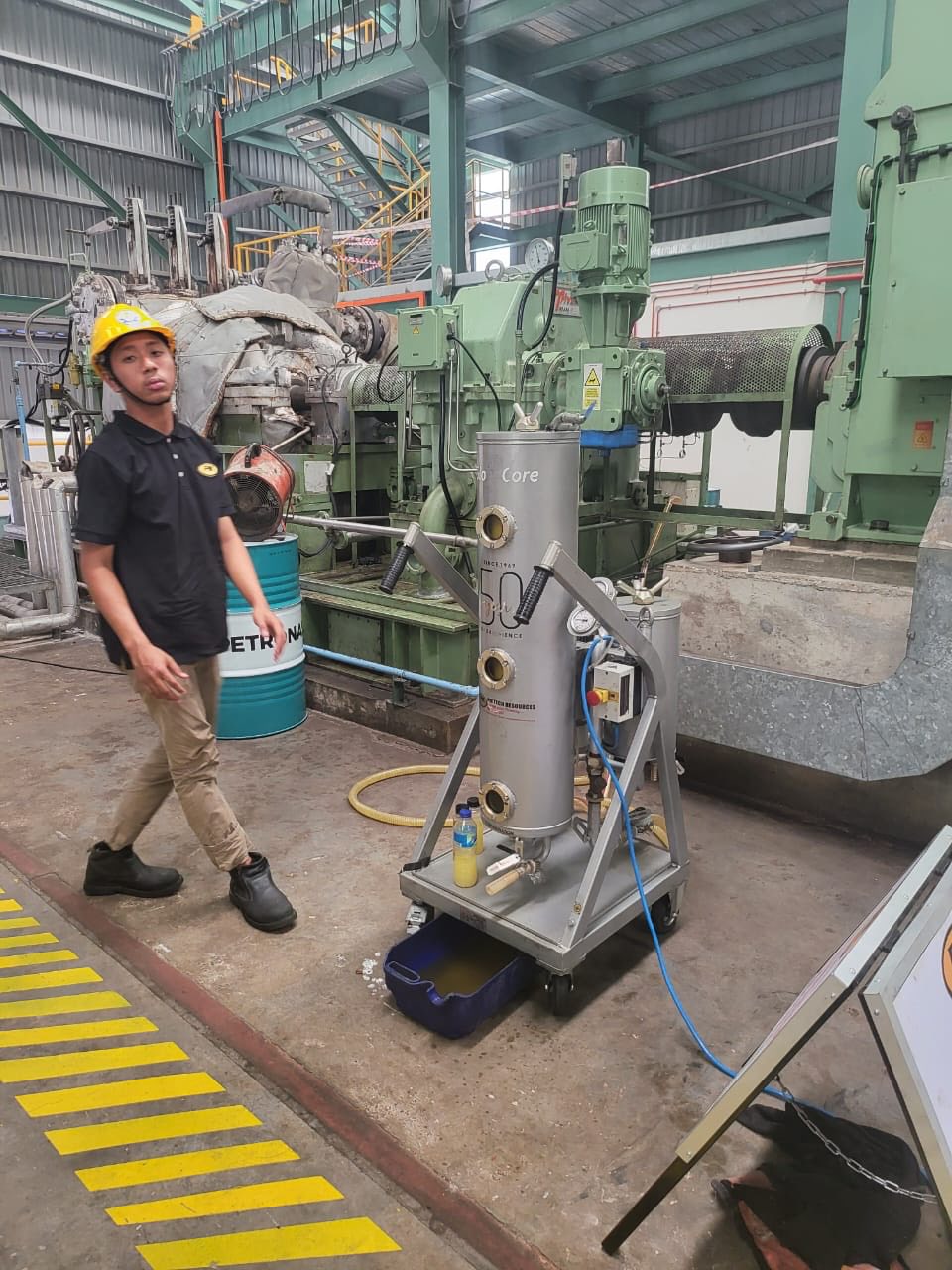

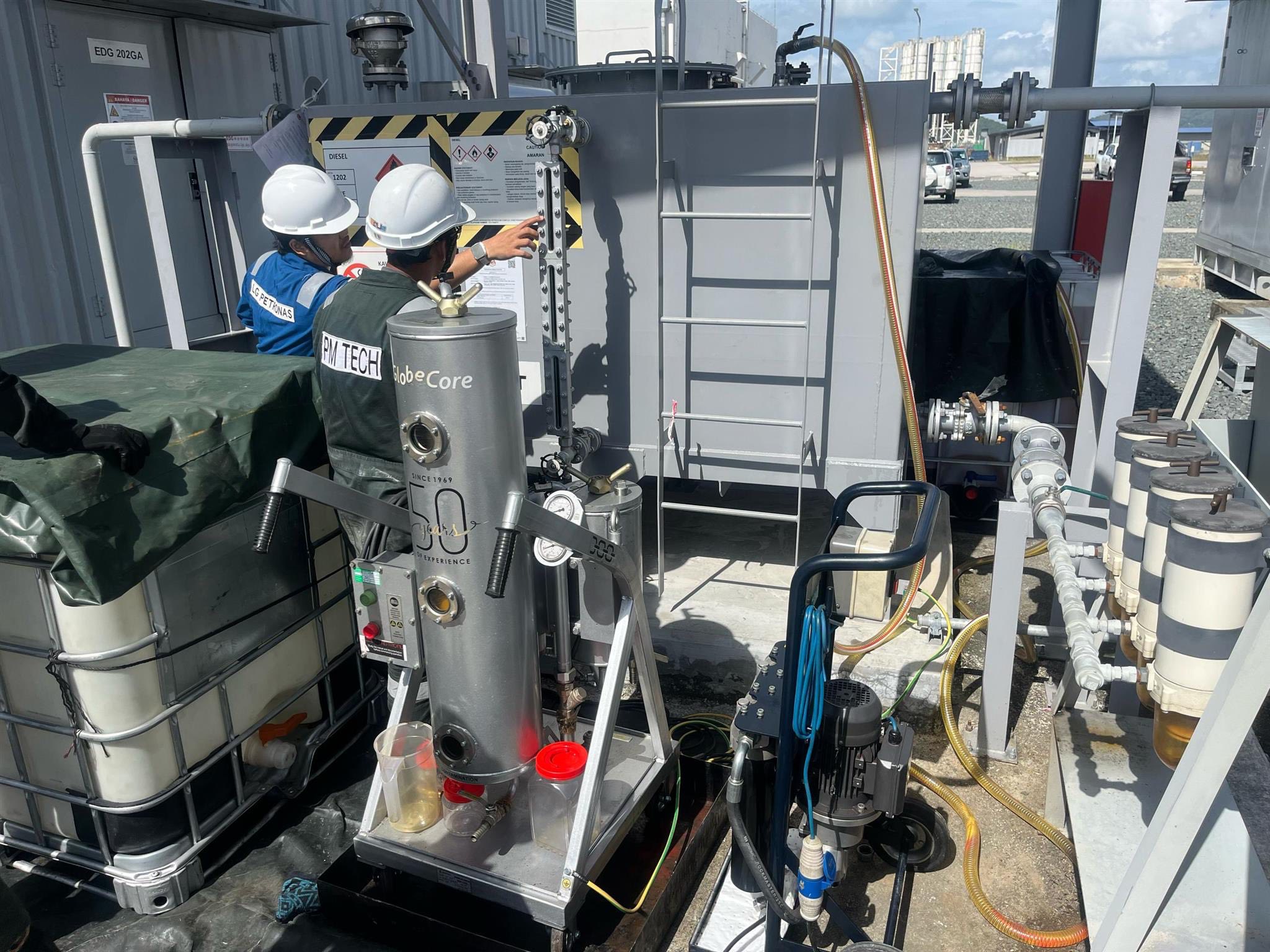

CMM-1,0CF Unit for Removal of Water from Oil
CMM-1,0CF
-
Advantages
- can process oil with extremely high water content, as high as 50/50 % and above;
- the processed material is not subjected to heating, chemicals or other factors that can adversely affect its properties;
- low power consumption;
- relative compact dimensions;
- high mobility.
The unit is designed for purification1Oil purification (transformer, turbine, industrial, etc.) removes oil contaminants in order to prolong oil service life. of industrial, hydraulic2A hydraulic fluid or hydraulic liquid is the medium by which power is transferred in hydraulic machinery. Common hydraulic fluids are based on mineral oil or water., turbine3, transformer4Transformer oil is an oil that is stable at high temperatures and has excellent electrical insulating properties. and other oil types, as well as diesel fuel5Diesel fuel in general is any liquid fuel used in diesel engines, whose fuel ignition takes place, without any spark, as a result of compression of the inlet air mixture and then injection of fuel., kerosene6Kerosene, also known as paraffin, lamp oil, and coal oil (an obsolete term), is a combustible hydrocarbon liquid which is derived from petroleum. and petroleum with especially high moisture content.
The unit can process oil with extremely high water content, as high as 50/50 % and above.
Water is removed by coagulation7Coagulation is a clumping the small, destabilized particles together into larger aggregates so that they can be more easily separated from the oil.. When oil passes through a special filter element8Filter is a device which separates solids from fluids (liquids or gases) by adding a medium through which only the fluid can pass., water molecules gather into droplets and flow down the surface of the filter into a settling vessel. The water can then be drained through a valve.
A cartridge filter with 1, 3, 5 or 25 μm9The micrometre (International spelling as used by the International Bureau of Weights and Measures; SI symbol: μm) or micrometer (American spelling), also commonly known by the previous name micron, is an SI derived unit of length equalling 1×10−6 metre (SI standard prefix “micro-” = 10−6); that is, one millionth of a metre (or one thousandth of a millimetre, 0.001 mm, or about 0.000039 inch). filtration fineness is installed in the unit to remove particulate matter from the oil.
| No |
Parameter |
Value |
|
| 1 | Processing rate, m3/hour |
1 |
|
| 2 | Filtration fineness, μm*; stage 1 / stage 2 |
25 |
5 |
| 3 | Rate of water removal |
99% |
|
| 4 | Power consumption, kW |
1,1 |
|
| 5 | Max pressure difference, MPa |
0.5 |
|
| 8 | Oil output pressure, bar |
2…2.5 |
|
| 9 | Three phase 50Hz power supply voltage, V |
380 |
|
| 10 | Dimensions, mm max
– length – width – height |
600 600 1100 |
|
| 11 | Weight, kg max |
120 |
|
The СММ-1CF is the smallest capacity unit in the coagulation purification equipment range.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].Aplication :
- can process oil with extremely high water content, as high as 50/50 % and above;
- the processed material is not subjected to heating, chemicals or other factors that can adversely affect its properties;
- low power consumption;
- relative compact dimensions;
- high mobility.
Aplication :
The CMM-1CF unit can be used for:
- transformer oil drying;
- turbine oil drying;
- hydraulic oil drying;
- industrial oil drying;
- cable oil drying;
- compressor oil drying;
- gear oil drying;
- silicone oil drying;
- drying of dielectric fluid Midel 7131;
- drying of FR3 dielectric fluid;
- drying of oil for X-ray machines;
- drying of fire-resistant turbine oil Fyrquel;
- cutting oil filtration;
- diesel fuel purification.
