USBL-1 Laboratory Blending System
USBL-1 Laboratory Blending System
2 liquids | Blending | Small footprint | Laboratory

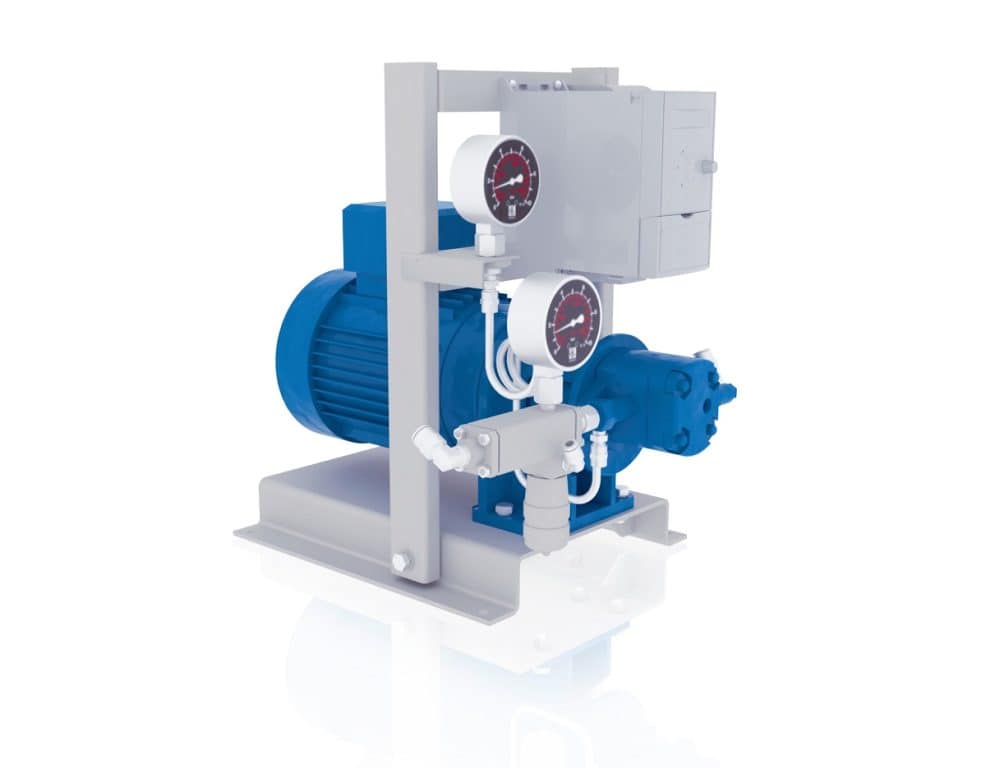

The high-speed laboratory blending unit USBL-1 is designed for accurate and high-quality blending of liquids of two components of oil products, even in small volumes. This ensures high quality and consistency of the final product.
This unit can be used in laboratories at oil refineries. Its main purpose is to accurately and quickly mix 2 components, allowing specialists to accurately determine the right ratio of components to achieve the optimal result.
The resulting sample can then be directly used for detailed laboratory analysis to ensure compliance with all quality standards.
| No. | Parameter | Value |
|---|---|---|
| 1 | Number of liquids to be mixed (max) |
2 |
| 2 | Rated capacity of the unit when mixing all ingredients, L/h (gpm):
— at 50 Hz — at 100 Hz |
112 (0.49) |
| 4 | Maximum design pressure of the main liquid discharge, MPa |
1.0 |
| 5 | Power rating, kW (max)
— at 50 Hz — at 60 Hz |
0.76 0.92 |
| 6 | Overall dimensions, mm, max
— length — width — height |
410 (16.1) 360 (14.2) 400 (15.7) |
| 7 | Weight, kg (lbs), max |
25 (55) |
- it can be used by research institutions and laboratories;
- produces samples of mixed liquids for laboratory testing;
- helps in testing the effectiveness of various additives and optimizing mixing formulas.
Application:
Windshield washer fluid production
Crude oil homogenisation for unification this oil before processing and before shipment from terminals
Homogenization of water-fuel oil emulsion for combustion in boilers as fuel
Diesel- and biodiesel-based fuel compounding
