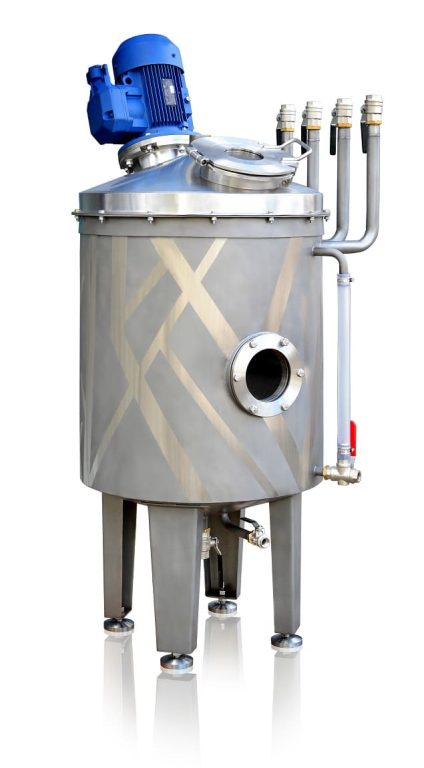

USB-5 high-speed mixing unit is intended for production of sanitizers based on alcohols and water solutions. The design provides for mixing two to four separate liquids (main ingredient, additional ingredients) determined by formulation and fed batchwise by a transfer pump into a tank equipped with a mixer. If necessary, it is possible to increase the quantity of mixed ingredients. The free-flowing ingredients which are soluble in liquid and have the particle sizes permissible for utilized transfer pump can be added through a feeding hatch.

Seq.No.	Indicators	Values
1.	Quantity of mixed ingredients	2–4*
2.	Capacity, L/cycle, not less than	150*
3.	Number of recommended operating cycles, cycles/hour	2
4.	Total tank volume, L	250
5.	Required power, kW	1.1
6.	Power voltage (50 Hz, 3 phases), V	380
7.	Dimensions in working position, mm – length – width – height	810 770 1,600
8.	Weight, kg (lb), not more than	150

* The quantity of mixed ingredients and the capacity depend on the formulation

Aplication :

reasonable price;
compact sizes and light weight;
simplicity of design;
mixing two to four ingredients;
the unit design allows for operation at both newly constructed and existing enterprises.

Aplication :

GlobeCore High-speed Mixing Unit Application Fields

GlobeCore impeller mixers can be used in chemical, building, food, pharmaceutical, cosmetic, oil and other industries.

GlobeCore impeller mixers application in chemical industry:

chemical reagents mixing;
adhesive production;
pesticide homogenization;
reagents and cellulose mixing for production of paper mass;
insecticides production;
liquid fertilizers production;
homogenization and other agrochemicals for plants spraying;
liquid detergents production;
mosquito repellents production;
antifreeze and windshield washer fluid production;
varnish production;
paint production;
bitumen emulsion mixing;
rubber production;
homogenization for plastic and polymers production;
domestic cleaning products production;
glass masses homogenization for different types of glass production.

GlobeCore impeller mixers application in building industries:

GlobeCore impeller mixers application in food industry:

beverages oxygenation;
sauces and marinades production;
yogurts production;
ice-cream production;
juices production;
drinks saturation with oxygen;
wine blend preparation;
beer production;
liqueurs and alcohol tinctures production.

GlobeCore impeller mixers in pharmaceutical industries:

physiological solutions production;
antiseptics production;
syrups production;
mixtures production;
suspensions production;
obtaining medical creams and ointments;
extracts obtaining;
vaccines production;
multicomponent medicinal production.

GlobeCore impeller mixers application in cosmetic industry:

GlobeCore impeller mixers application in oil industry:

GlobeCore impeller mixers application in other industries:

microorganisms cultures mixing in bioreactors;
biological substrates homogenization for biofuel;
pulp mixing for paper production;
wastewater treatment mixing with reagents;
mixing of reagents and ores for efficient minerals extraction;
microorganisms cultures mixing in laboratory conditions;
manure and chicken droppings mixing.

Aplication :

USB-5 high-speed mixing unit for production of sanitizers (0.15 – 0.3 m3/h)

USB-5

GlobeCore High-speed Mixing Unit Application Fields
