CMM-4 MOBILE UNIT FOR POWERED TRANSFORMER OIL PROCESSING

GlobeCore / Products / Custom Equipment / CMM-4 MOBILE UNIT FOR POWERED TRANSFORMER OIL PROCESSING

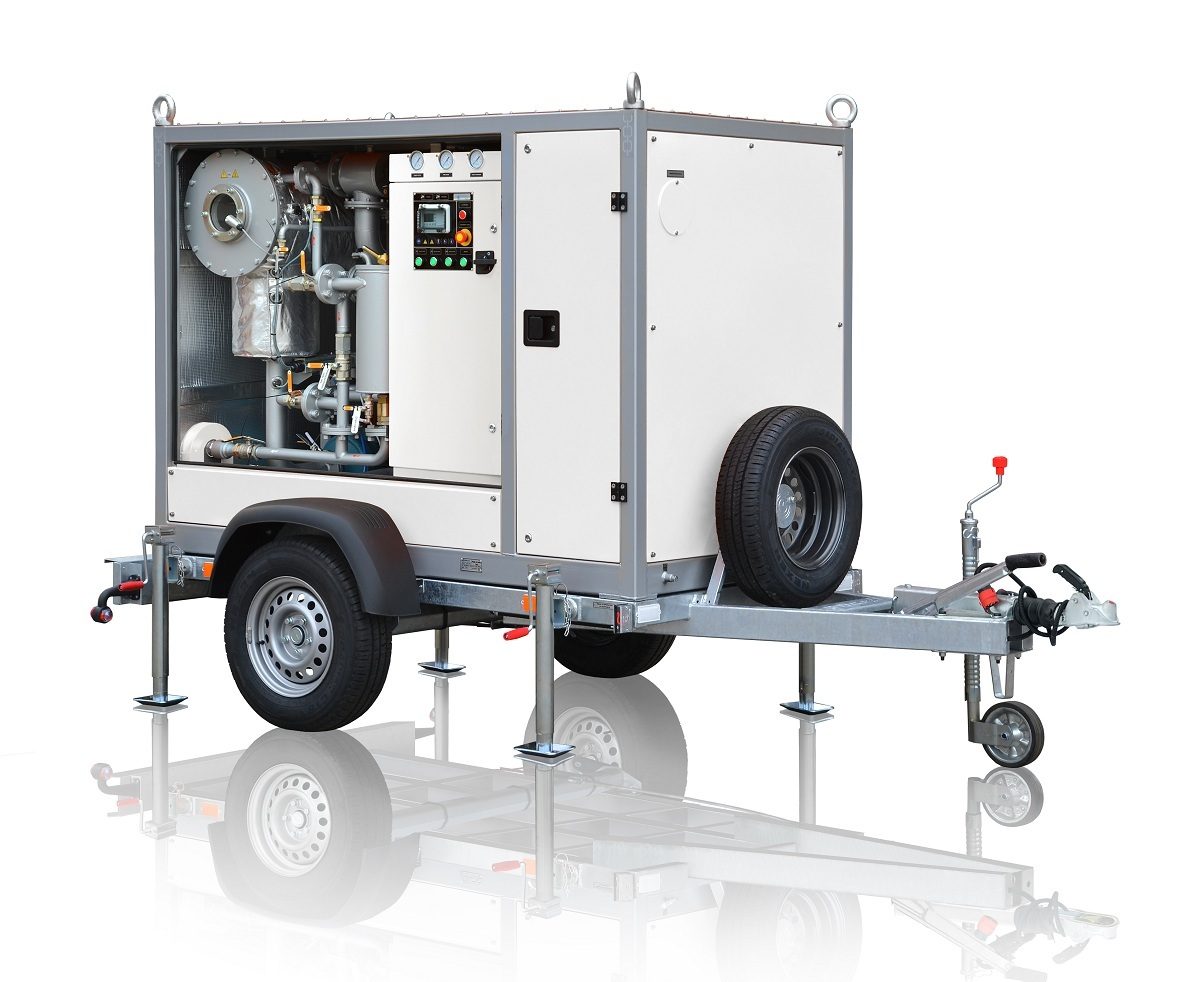

Oil Purification1 Plant GlobeCore CMM-4 may be used for: (1) heating electrical equipment that contains dielectric insulating oil2 with hot oil; (2) for vacuum3 drying...
    ADVANTAGES
    • Drying, degassing and filtration of oil
    • On site drying of transformer with simultaneous treatment of the oil
    • First filling of electrical apparatuses with insulating oil
    • As option can be mounted on roadworthy trailer

Oil Purification1 Plant GlobeCore CMM-4 may be used for:

(1) heating electrical equipment that contains dielectric insulating oil2 with hot oil;

(2) for vacuum3 drying of transformers4; and

(3) for vacuumizing5.

The unit is best suited to facilities that install, repair and service oil filled electric power transformers and other oil filled electrical equipment.

Parameter Value
Oil Purification Capacity, m3/hour / gals. per hour:
  • oil degassing, nitrogenation, oil drying and oil filtration mode
4/1059.0
  • heating and filtration mode
7/1853.0
Capacity adjustment range, m3/hour / gals. per hour 0-4/0-1059.0
Processed oil parameters (after Oil Purification)*:
  • mass moisture content, g/ton, max
10
  • ISO 4406 purity class
9
  • solid particle content, g/ton, max
8
  • filtration fineness, micron
5
  • dielectric strength, kV, min
70
Oil temperature in oil heating mode, ºС/ ºF 90/184
Oil Filtration rate ≥50
Outlet pressure, Mpa 0.35
Oil output head, meters 35.0
Oil heater power, kW 55
Oil heater mean surface power, W/cm2, max 1.15
Max power consumption, kW 63
Electric power
  • voltage, V
380
  • AC frequency, Hz**
50/60
Dimensions, mm/ft
  • length
1650/5’5’’
  • width
1250/5’3’’
  • Height
1650/4’1’’
Weight, kg/lbs 50/2,033.2

Note: * initial oil parameters:

  • volumetric gas content – below 5%
  • mass moisture content – below 0.01% (100 g/ton)
  • temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power

Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
