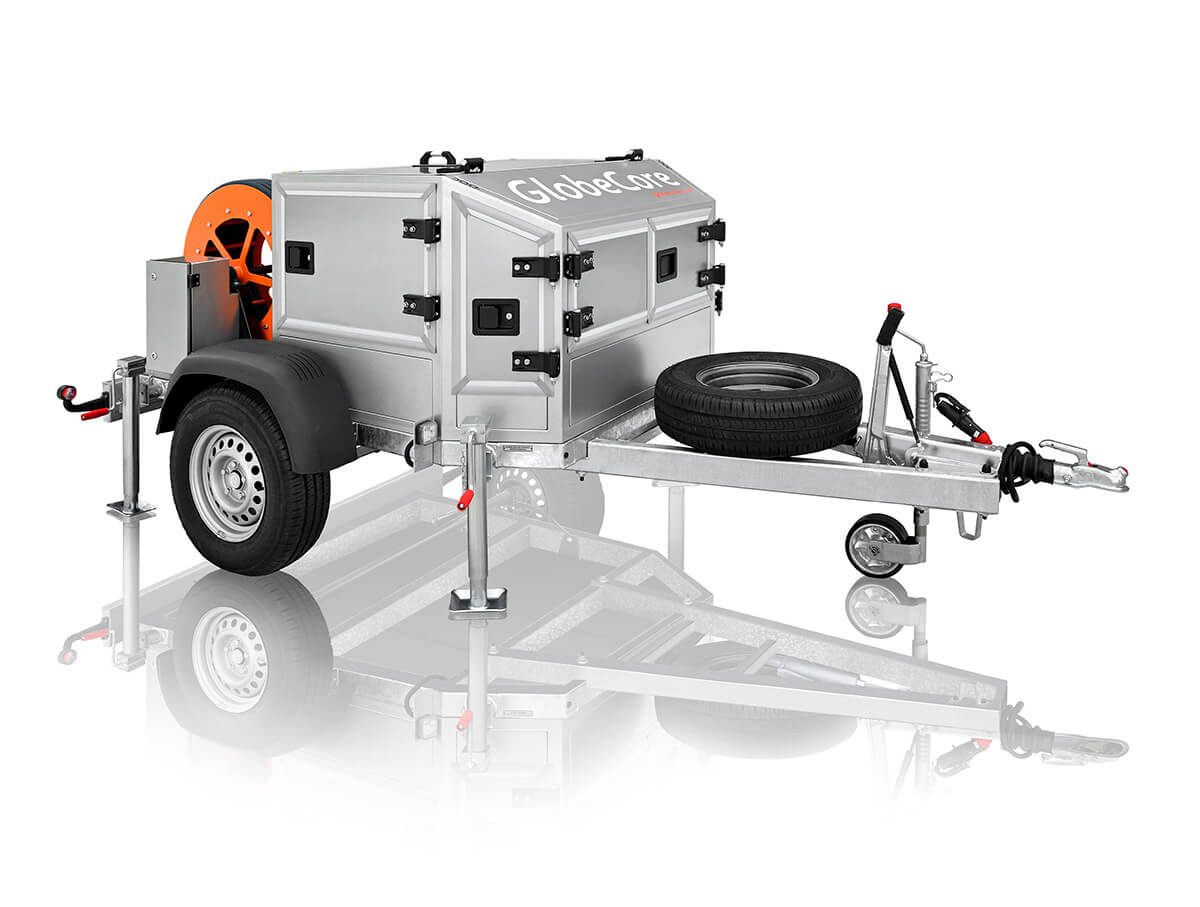

CMM-GL Gearbox oil changer
The CMM-GL unit is designed to drain used oil from and pump new oil into wind turbine gearboxes1A gearbox is typically used...
    Advantages
    • high quality of oil change in wind turbine gearboxes;
    • reduction of wind turbine downtime (the oil change takes less than one hour);
    • mobility (transportation around the wind farm by automobile, standard container installation is also possible);
    • collection of oil spills from the gearbox fairing;
    • can pump oil from one container to another;
    • full and easy access for inspection or servicing.

The CMM-GL unit is designed to drain used oil from and pump new oil into wind turbine gearboxes1A gearbox is typically used in a wind turbine to increase rotational speed from a low-speed rotor to a higher speed electrical generator.. The unit can also flush2The term “oil flushing” is used extensively in the process heating industry to refer to the cleaning of pipes and process equipment. the gearbox with special oil. The machine can service main and azimuth gearboxes, as well as blade angle of attack gearboxes.

The unit operates with mineral3Mineral oil is any of various colorless, odorless, light mixtures of higher alkanes from a mineral source, particularly a distillate of petroleum. and synthetic4Synthetic oil is a lubricant consisting of chemical compounds that are artificially made. Synthetic lubricants can be manufactured using chemically modified petroleum components rather than whole crude oil, but can also be synthesized from other raw materials gearbox oils with the following specifications:

  • kinematic viscosity5The viscosity of a fluid is a measure of its resistance to deformation at a given rate. at 40°С  – 8…50 mm2/sec;
  • density6The density, or more precisely, the volumetric mass density, of a substance is its mass per unit volume. at 20°С – 800…950 kg/m3;
  • ISO 7The International Organization for Standardization (ISO) is an international standard-setting body composed of representatives from various national standards organizations. 4406 purity class – -/19/16 or better.

CMM-GL gearbox oil changer design

The СММ-GL is a trailer with one axle, which supports the control section and the process section. The process section also includes hose reels. Control section doors are equipped with secure locks.

The unit requires an external power source. The CMM-GL is fully automated with a special controller, which manages operation of pumps, valves, capacitance sensors, temperature sensors, flow switches, filters8An oil filter is a filter designed to remove contaminants from engine oil, transmission oil, lubricating oil, or hydraulic oil., manometers9A Manometer isa device to measure pressures. and flow meters.

Modes of operation

Used oil drain mode

In this mode, the vacuum pump10A vacuum pump is a device that removes gas molecules from a sealed volume in order to leave behind a partial vacuum. extracts oil from a gearbox into the vacuum chamber until the chamber is full. Then a gearpump transports the oil to a prepared container.

Gearbox flushing mode

In this mode, oil is supplied by the gearpump to the required elevation (up to 60 meters) and is injected into the gearbox under pressure, washing away the remaining old oil and particulate matter.

New oil supply mode

In this mode, the gearpump supplies oil to the required elevation (up to 60 meters).

Filtration mode

While pumping new or flushing oil into the gearbox, the oil passes through a 15 μm11The micrometre (International spelling as used by the International Bureau of Weights and Measures; SI symbol: μm) or micrometer (American spelling), also commonly known by the previous name micron, is an SI derived unit of length equalling 1×10−6 metre (SI standard prefix “micro-” =10-6); that is, one millionth of a metre (or one thousandth of a millimetre, 0.001 mm, or about 0.000039 inch). filter for enhanced purity.

Parameter Value
1. Oil output rate, m3/hour, not less than 0,6
2. Oil drain rate, m3/hour, not less than 0,13
3. Output pressure, MPa 1,3
4. Max power consumption, kW 4,1
5. Power supply
– voltage, V (customizable) 380 (240, 400, 480)
– AC frequency, Hz (customizable) 50 (60)
6. Dimensions, mm
– length 3509
– width 1959
– height 1306
7. Empty weight, kg 900
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].

Aplication :

  • high quality of oil change in wind turbine gearboxes;
  • reduction of wind turbine downtime (the oil change takes less than one hour);
  • mobility (transportation around the wind farm by automobile, standard container installation is also possible);
  • collection of oil spills from the gearbox fairing;
  • can pump oil from one container to another;
  • full and easy access for inspection or servicing.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].

Aplication :

GlobeCore CMM-GL units can be used for :

  • oil refilling of large marine engines and other oil-filled equipment used on board ships;
  • oil change in hydraulic units and turbines at large hydroelectric power plants;
  • oil change in large gearboxes used in mining equipment and at smelteries;
  • oil change in the steam turbine systems of thermal power plants;
  • oil change in the engines of large transport aircraft;
  • oil change in the moving parts of mechanical trackers of solar power plants;
  • oil change in the systems of large elevators and escalators of shopping malls, airports, and subways;
  • oil change in the transmissions of locomotives and other railway rolling stock;
  • oil change in the gearboxes and hydraulic systems of large agricultural machines: grain harvesters, tractors, and irrigation systems;
  • oil change in the transmission systems of excavators, cranes, and bulldozers;
  • oil change in the mechanical systems of amusement rides, for example, roller coasters;
  • testing and servicing of gearboxes and engines at factories and manufacturing facilities;
  • oil change in the mechanical systems of сrude oil production platforms, natural gas pipelines, and crude oil refining equipment;
  • oil change in the compressors and pumps of heat exchangers and refrigeration equipment;
  • oil change in oil cooling and lubrication systems for die-casting machines and extruders;
  • oil change in the mechanical systems of equipment for production of biodiesel, biogas, and other types of biofuel;
  • oil change in the equipment of pumping stations that ensure water supply and wastewater treatment;
  • oil change in the mechanical systems of large mining machines and transport systems used in the mining industry which include conveyors, drilling rigs, and lifting arrangements;
  • oil change in the mechanical systems of thermal solar power plants and geothermic pumps;
  • oil change in the hydraulic and transmission systems of specialized equipment for construction of tunnels and mines, such as tunnel shields and drilling rigs;
  • oil change in the mechanical systems of airport equipment: baggage tugs, passenger transportation buses, and snow removal machines;
  • oil change in the high-pressure systems of underwater research and resource extraction equipment, including remotely controlled submersibles and autonomous underwater vehicles;
  • oil change in the mechanical systems of machines for recycling of plastics, scrap metal, and other waste.
