MCU ZEOLITE OIL DRYING UNIT

GlobeCore / Products / Custom Equipment / MCU ZEOLITE OIL DRYING UNIT

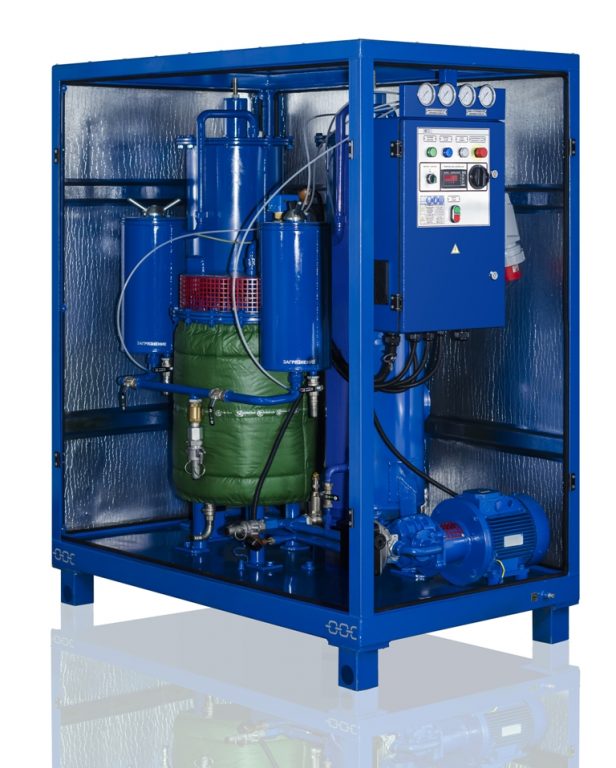

МЦУ-71
The MCU oil purification1 unit is designed for removal of solid particles and water from dielectric insulating oils2 (with a viscosity3 of no more than 70...
    ADVANTAGES
    • dielectric strength of transformer oil increased from 5-10 to 50 kV and above after only one pass;
    • silica gel can be used instead of zeolite to reduce oil acidity;
    • zeolite can be restored without removal of zeolite cartridges using a BRZ unit;
    • simple operation and servicing.

The MCU oil purification1 unit is designed for removal of solid particles and water from dielectric insulating oils2 (with a viscosity3 of no more than 70 cSt at 50°C/122°F.

Additionally, this unit is designed to significantly reduce acid levels in used insulating oil.

The unit is used for installation, repair and operation of high voltage oil containing equipment with voltage up to 1150 kV (power transformers4high voltage switches5 etc).

The system consists of two separate sections: a BNF heating and filtration section and CP-260 sorbent6 cartridges that which are connected by flexible hoses.

Ambient conditions for operation:

  • ambient temperature 283 to 308 K (+10 to +35°C/ 49.7 to 97.73°F);
  • pressure 84 to 106.7 kPa (630 to 800 mm. hg);
  • elevation up to 2000 meters/6561 feet above sea level;
  • explosion and fire safe area.

Parameter Value
MCU-1.7 MCU-4.3 MCU-7
Capacity, m3/hour, minimum/gals. per hour
• drying, regeneration and filtration mode 1.7/450 4.3/1138 1.5-2.0/392-529
• heating mode 1.7/450 4.3/1138 3.6-4.3/953-1138
Max oil outlet temperature, ⁰С/⁰F:
• drying and filtration mode 35/95
• heating mode 60/140 65/149
Sorbent max load, kg 100
Sorbent regeneration temperature, ⁰С/⁰F:
Zeolite NaA 250/482
Silica gel 120/248
Sorbent regeneration without unloading No Yes
Processed oil parameters:
• industrial purity class (ISO 4406) 9 (-/14/12)
• solid particle content, max, g/t 2.5 10
• acid number, mg KOH/g of oil, max 0.02…0.05
• nominal filtration fineness, micron 5…25 5
• mass weight content, g/ton per cycle, max 10
• dielectric loss tangent at 90 ⁰С/194 ⁰F, max 1.5
• dielectric strength, kW, min 65
Mean heater surface power, W/cm2, max 1.2
Heater power, kW, max 28.8
Max power consumption, kW 33
Three phase AC power voltage, 50/60Hz, V 380/220 380
Dimensions, mm/ft, max, length/width/height 1270/700/1400

4’16”/2’29”/4’59’

1270/700/1500

4’16”/2’29”/492”

1500/900/1735

4’59”/2’95”/5’69”

Weight, kg/lbs, max 500/1,105 550/1,215.5 7501,657.5
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
