Vane Vacuum Pumps (Support Pumps)
Vane
-
Advantages
- Simple installation and maintenance;
- Low noise level;
- Low energy consumption.

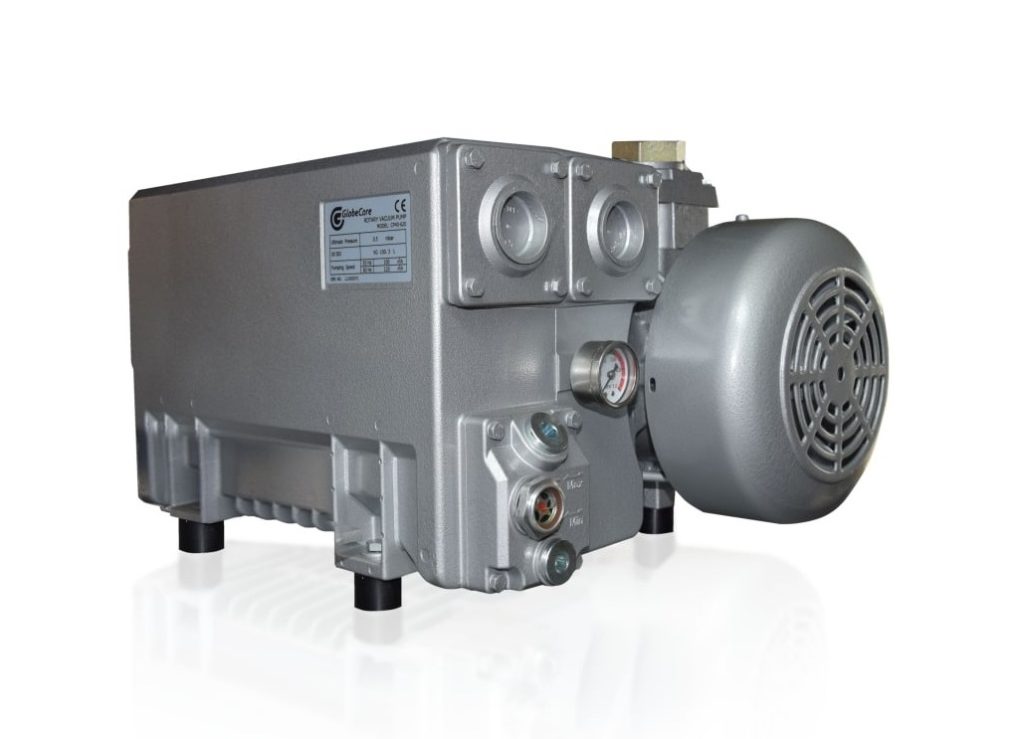

GC Vane Vacuum Pumps (Support Pumps)
GC vane vacuum pumps are designed to create a preliminary vacuum. These backing pumps are typically used in high-vacuum systems as a first stage, operating in conjunction with high-vacuum pumps.
The vane vacuum pump consists of a cylindrical chamber and rotating vanes. The rotating vanes are off-center relative to the center of the chamber. This displacement creates two zones within the chamber: one zone creates a vacuum that draws in air, while the other zone compresses and expels the air.
Some potential application areas for vane vacuum pumps include:
• Plastic Manufacturing (vacuum forming, filling, coating)
• Food Production (sterilization, packaging)
• Medical Sector (sterilization)
• Chemical Industry (paint production)
• Pharmaceutical Industry (ampoule production)
And more.
| No. |
Model |
GC10-520 (50 Hz) |
GC10-520 (60 Hz) |
GC40-620 (50 Hz) |
GC40-620 (60 Hz) |
GC40-620 (50 Hz) |
GC40-620 (60 Hz) |
| 1 | Voltage (V) |
200-240/380-440 |
200-240/380-440 |
200-240/380-440 |
200-240/380-440 |
200-240/380-440 |
200-240/380-440 |
| 2 | Power (kW) |
0.76 |
0.92 |
1.5 |
2.2 |
3.0 |
3.5 |
| 3 | Current (A) |
2.5-2.9/1.5-1.9 |
2.7-2.5/1.6-1.5 |
6.1-7.6/3.8-5.5 |
5.4-6.3/3.1-3.9 |
6.5-8/4.5-5.2 |
6.6-6.8/3.8-4.2 |
| 4 | Ultimate Pressure (mbar) |
2 |
2 |
0.5 |
0.5 |
0.5 |
0.5 |
| 5 | Maximum Pumping Rate (m3/h) |
20 |
24 |
63 |
76 |
100 |
120 |
| 6 | Noise Level (dB) |
72 |
72 |
74 |
76 |
74 |
76 |
| 7 | Oil Volume (L) |
0.5 |
0.5 |
2 |
2 |
2 |
2 |
| 8 | Weight (kg) |
21.9 |
21.9 |
61.6 |
61.6 |
70 |
70 |
