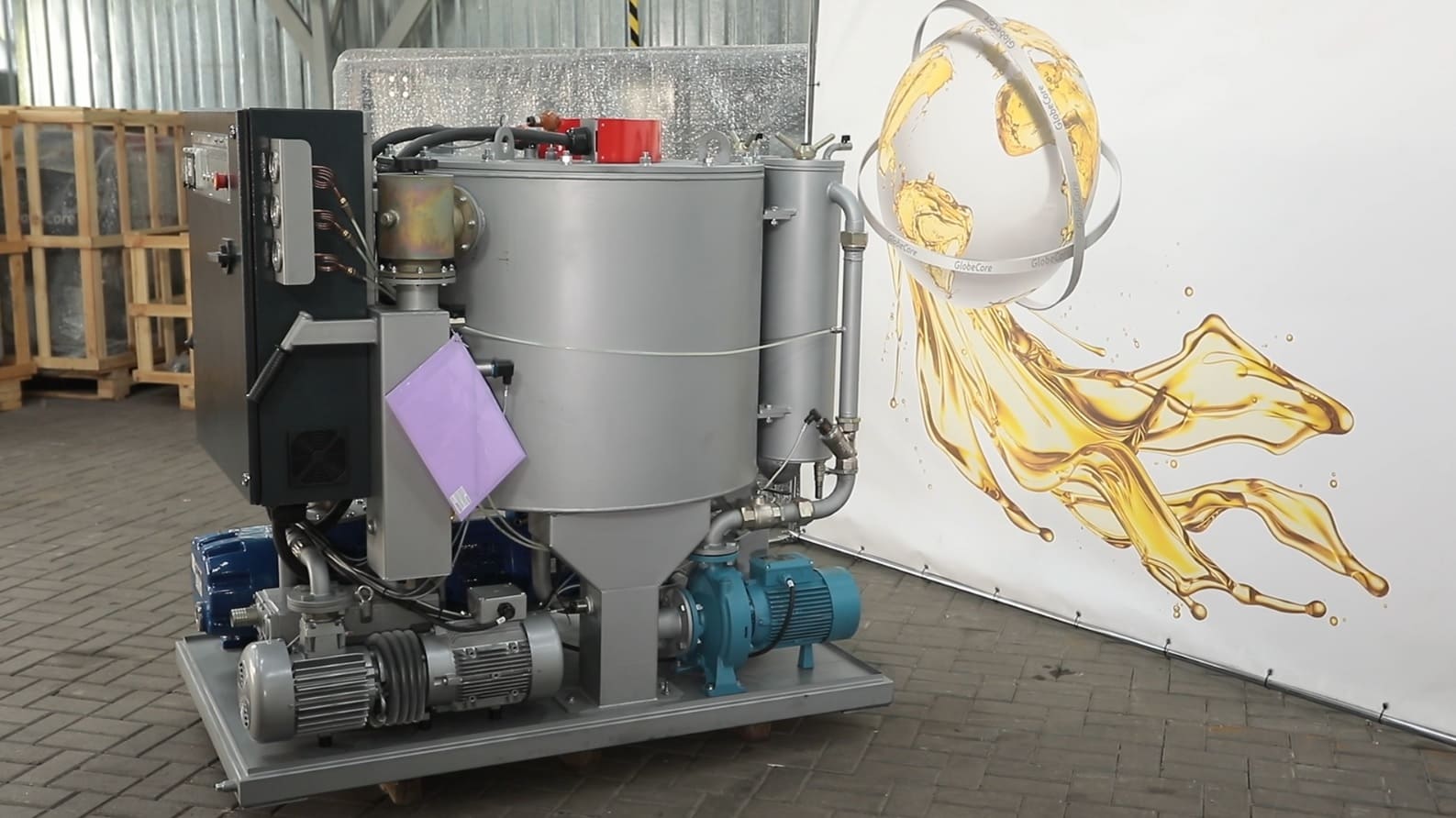

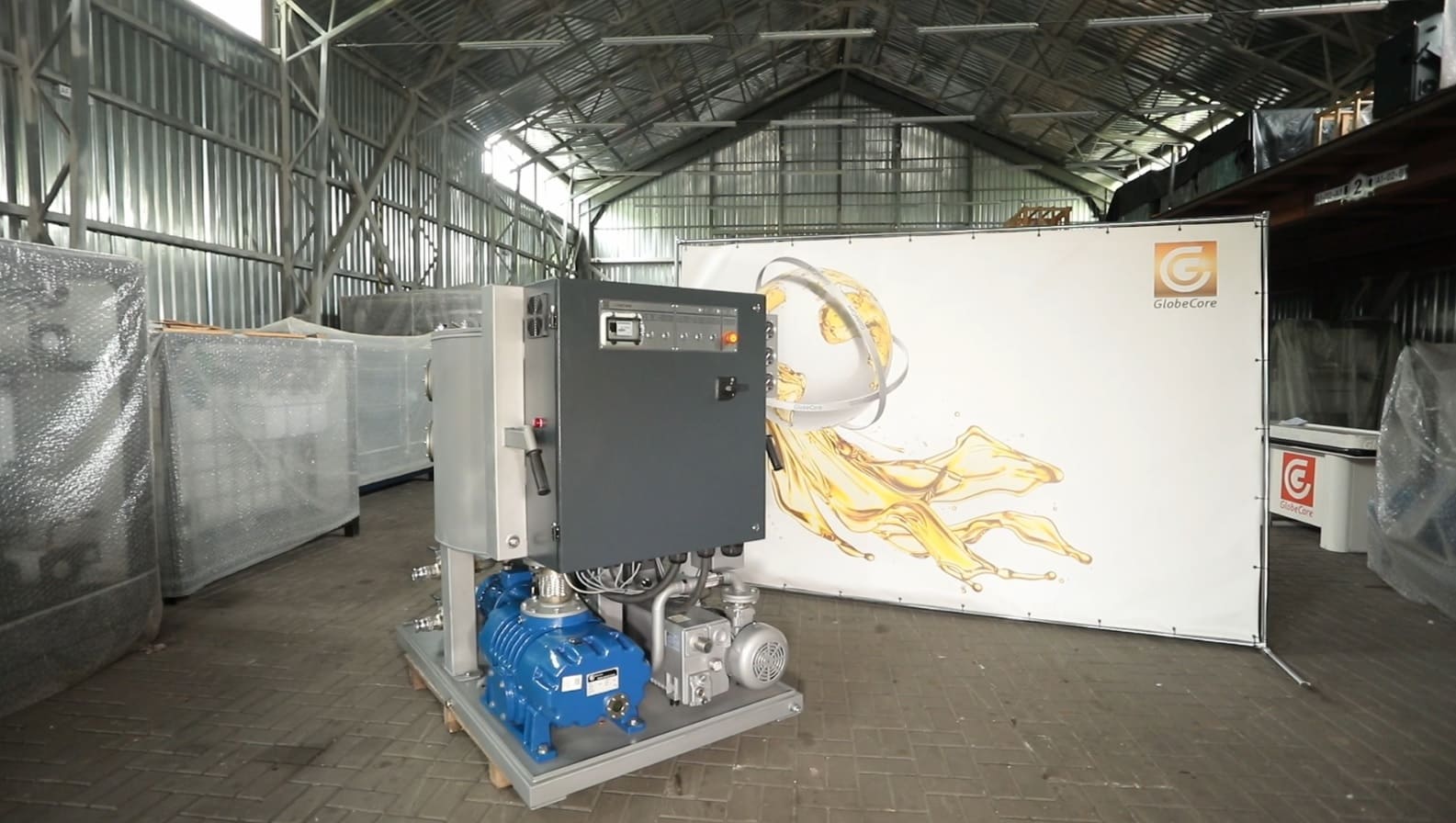

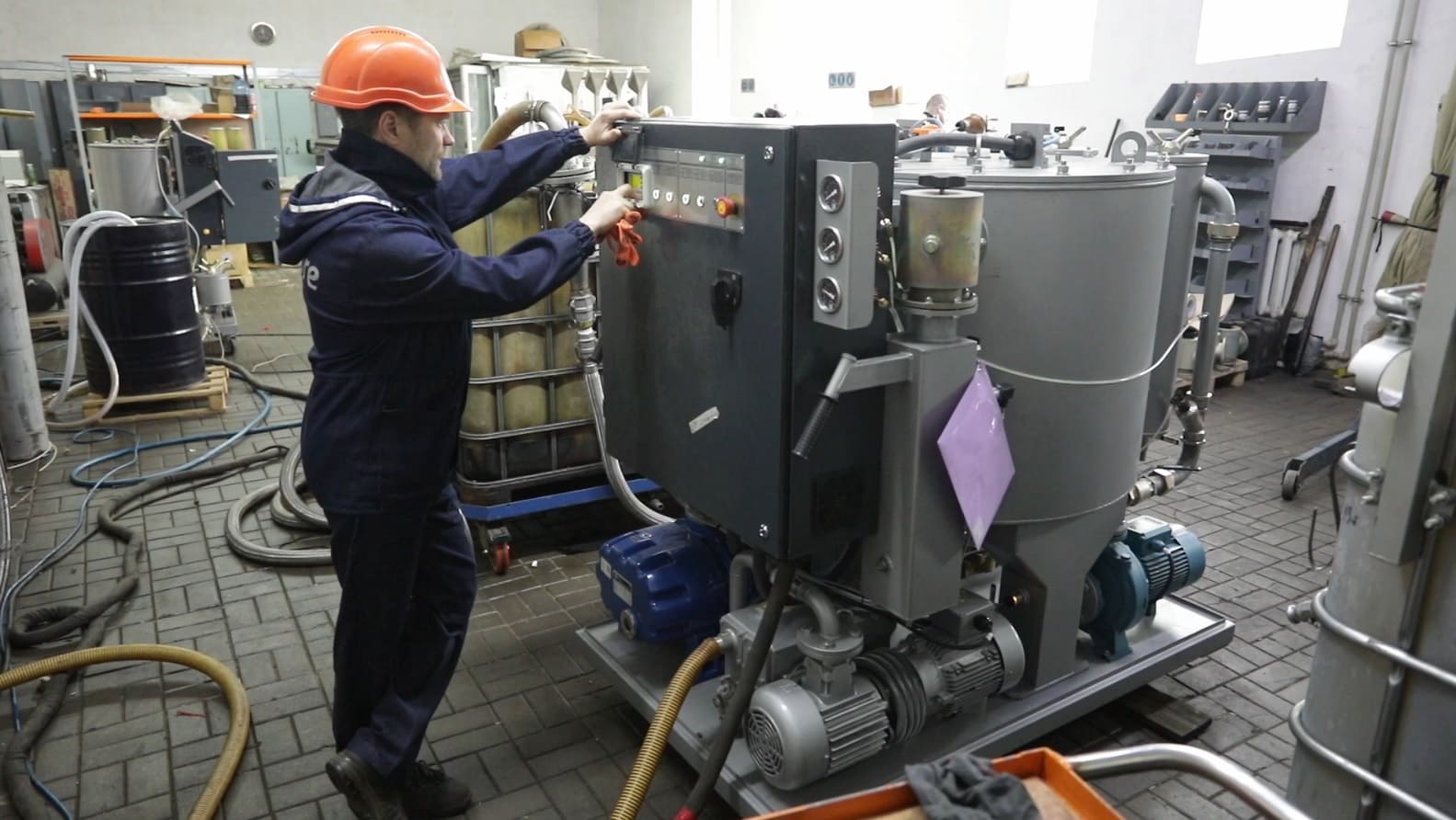

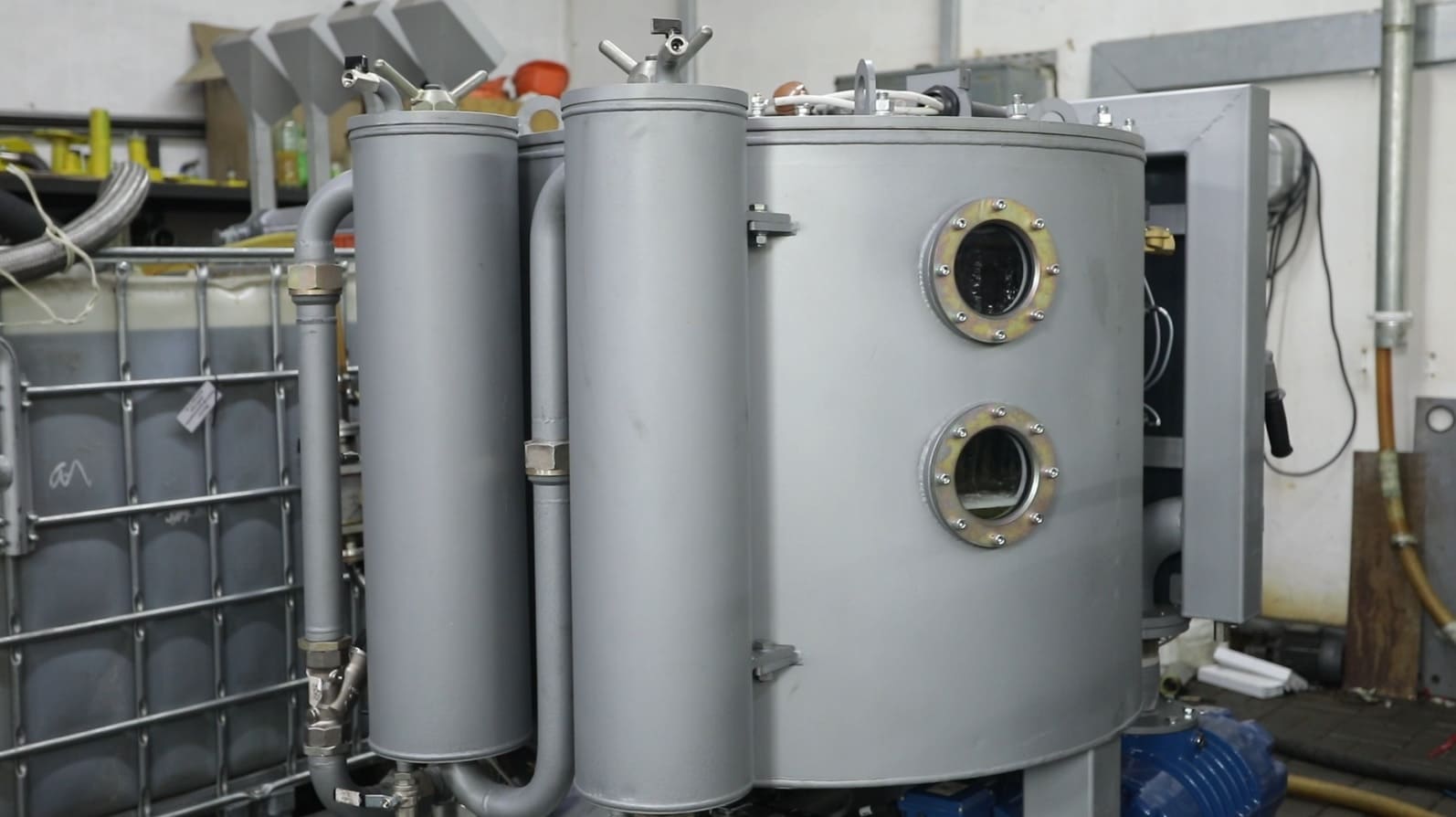

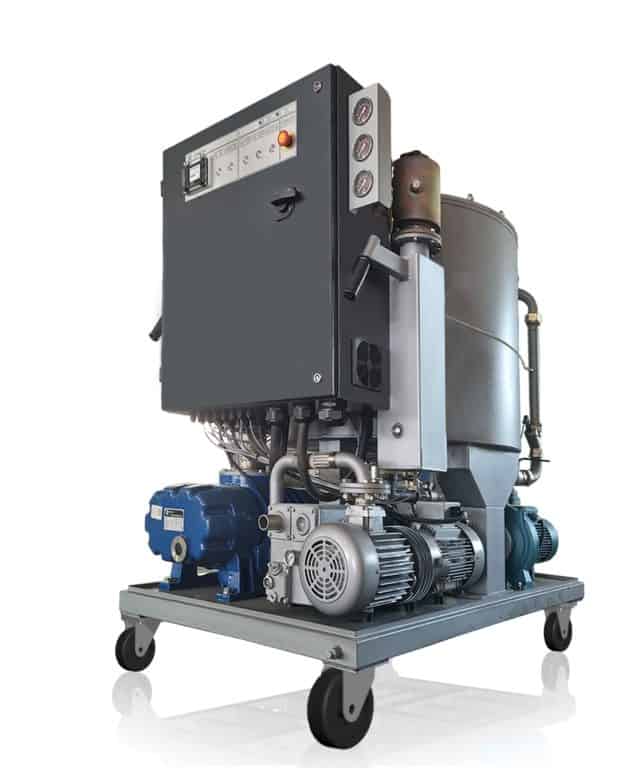

CMM-8LT Oil Processing Unit
Cap: 8000 LPH | Degassing | Vacuum drying | 5 µm filtration
- Description
- Specification
- Advantages
- Application
- FAQ
- Configurator
- Payback Period
- Video
- Gallery
- Publications
The vacuum oil unit CMM-8LT is designed for purification from mechanical impurities and water of electrical insulation oils, the kinematic viscosity of which does not exceed 70 cSt at a temperature of 50°C.
The unit can be used for heating oil-filled electrical apparatuses with hot transformer oil and for their vacuuming.
The station ensures oil purification up to class -/12/9 with an initial purity class of -/16/13 (mass fraction of contaminants not exceeding 0.004%) with multiple passes of the purified product through the filter block.
The station is used in the assembly, repair, and operation of oil-filled high-voltage equipment (power transformers, high-voltage switches, etc.).
| No. |
Specification |
Value |
| 1 | Capacity, m3/h (gal/min) |
8 (35.2) |
| 2 | Maximum oil outlet temperature in heating mode, °C (°F) |
90 (194) |
|
3* |
Parameters of processed oil:
|
5 ppm, or 5 ppm+ (optional) 5 70 |
| 4 | Oil heater power, kW, max |
100 |
| 7 | Power requirement, kW, max |
115 |
| 8 | Three-phase 50 Hz AC power supply voltage, V |
Customizable |
| 9 | Overall dimensions, mm (in), max:
|
1,665 (65.6) 1,650 (65) 1,020 (40.2) |
| 10 | Max weight, kg (lbs) |
1,200 (2,645) |
- Compactness
- Oil heating capability
- High filtration degree
- High maneuverability
- Oil degassing and dehydration
- Protection against oil overheating
Application:
What is the difference between thermovacuum oil purification and oil regeneration?
Thermovacuum oil purification removes dissolved or suspended contaminants from the oil (water, gases, and mechanical impurities), while oil regeneration removes the aging products of the oil itself and restores its chemical properties to a condition close to that of new oil.
Can oil be processed using a CMM-8LT unit while the transformer is energized?
Yes. Oil processing in an energized transformer must not be prohibited by the regulations of the country where the transformer is installed. In addition, the CMM-8LT unit must be equipped with an automatic flow rate control system, and its connection to the transformer must be made using the TSS Transformer Safety System.
Can the acid number of oil be reduced by processing it with a CMM-8LT unit?
No. CMM-R oil regeneration units must be used for this purpose.
What type of vacuum system is used in the CMM-8LT unit?
A single-stage vacuum system. The system uses one vacuum pump to generate a low vacuum.
What vacuum level is generated by the vacuum system of the CMM-8LT unit?
Operating gauge pressure from −0.85 to −0.95 bar.
