UVD Vacuum Oil Filling Unit
UVD
-
ADVANTAGES
- versatility (can store, transport, degas and add transformer oil);
- compact size and mobility;
- simple operation and servicing.

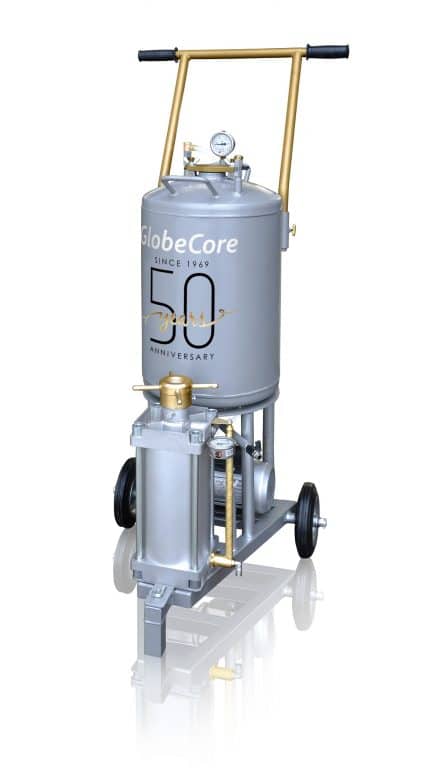

The UVD vacuum1 filling2 unit is designed for preparation (degassing3), storage, transportation and adding of transformer oil into the high voltage ports of transformers4 and switches5; the unit is designed for operation at power plants, substations and other energy facilities.
| Parameter | Value |
| Amount of prepared oil, liters/gals | 30/7.8 |
| Amount of oil in filling section, liters /gals | 4/1.06 |
| Residual pressure in degassing section, Pa (mm.hg) | 6.7 (5х10-2) |
| Oil supply pressure, MPa (kg/cm2) | Up to…0.4 (up to…4) |
| Nominal power, kW | 0.25 |
| 50/60 Hz power supply voltage, V (60Hz USA) | 220 |
| Dimensions, mm/ft: | |
| • length
• width • height |
900/2’11”
780/2’7” 1500/2’4” |
| Empty weight, kg/lbs | 80/176.8 |
- versatility (can store, transport, degas and add transformer oil);
- compact size and mobility;
- simple operation and servicing.
GlobeCore’s UVD units can be used for:
- high-voltage transformer bushings oil filling;
- high-voltage circuit breakers oil filling;
- insulating oil injection machine into disconnectors;
- oil injection machine into cable joints;
- dielectric fluid filling machine for gas-insulated bushings;
- oil top-up machine for locomotive transformer bushings;
- oil injection machine into oil-filled protective relays;
- insulating oil filling machine in bushing production;
- metered oil filling machine in dielectric test cells;
- insulating liquid top-up machine in reactor bushings;
