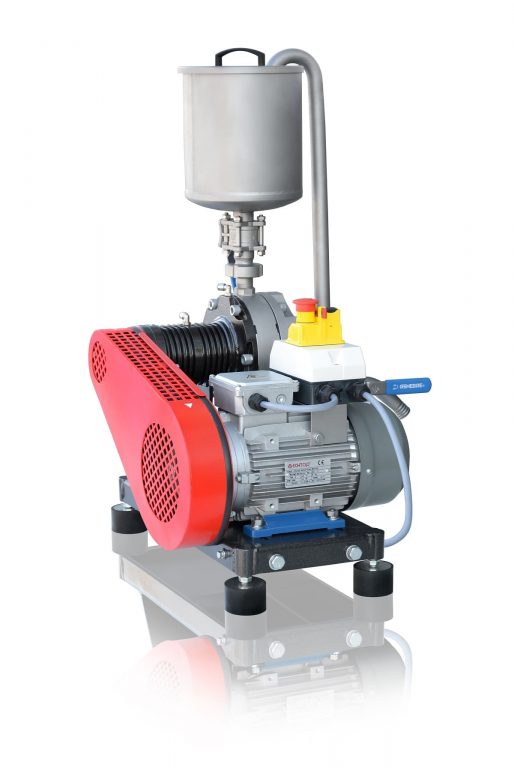

CLM-100.2 Colloid Mill
Cap: 100-1000 LPH | 5 µm milling | Compact | Small footprint
CLM-100.2 colloid mill is designed for homogenization and emulsification of liquid products in a laboratory environment.
The mill can be used to prepare, dissolve, and process many products in various industries, as well as to obtain thick slurries of high shear stresses.
Principle of operation
The principle of operation of CLM-100.2 colloid mill is based on a rotor/stator system diagram. A rotor and a stator consist of concentric tool rings (cutters, knives) with special configurations of grooves and (or) holes that ensure the optimal mode of mechanical impact on processed product.
In working position, the tool rings of the rotor (moving tool) and the stator (stationary tool) enter coaxially against each other and rotate in a contact-free manner at a high relative speed (up to 50 m/s). Contact-free rotation is ensured by technological axial and radial gaps.
The processed product enters the operating chamber of the mill housing through the axial bore of the stator, is run through the rotor/stator system and discharged in the radial direction (product outlet).
When passing through the rotor/stator system, the product is influenced by complex hydrodynamic processes associated with changes in shear stresses, shear forces, and flow velocity. Chemical reactions occur faster due to increased contact surfaces of chemical agents. As a result, intensive dispersion, emulsification, homogenization, grinding, and pulverization of the processed product are achieved.
|
No. |
Parameter |
Value |
| 1 | Capacity of the unit, m3/h (gal/min) |
0.1…1 (0.44… 4.4)* |
| 2 | Kinematic viscosity of product, mm2/s (cSt), max |
150 (1.5) |
| 3 | Operating temperature, °С (°F), max |
180 (356) |
| 4 | Maximum pressure, bar (psi) |
6 (87) |
| 5 | Operating volume of product, L (gal) |
5 (1.3) |
| 6 | Shaft seal type |
mechanical |
| 7 | Rotor/stator tooling type |
nozzle |
| 8 | Replaceable knife kit |
optional** |
| 9 | Knife axial gap (preset), mm (in) |
0.2…2 (8·10-3… 8·10-2) |
| 10 | Knife radial gap, mm (in) |
0.25 (10-3) |
| 11 | Knife tip speed, m/s (m/h), max |
50 (112) |
| 12 | Mill shaft and bearing rotation speed, rpm |
6,800 |
| 13 | Motor shaft rotation speed, rpm |
3,400 |
| 14 | Drive power, kW |
3.3 |
| 15 | Power supply voltage, V |
customizable |
| 16 | Dimensions, mm (in), max: | |
| – length |
550 (21.7) |
|
| – width |
600 (23.6) |
|
| – height |
850 (33.5) |
|
| 17 | Weight, kg (lbs), max |
75 (165) |
* – the capacity of the unit may change and depends on the resulting product type
- The mill can be used to develop new product formulations.
- The mill handles various types of products.
- The mill features compact dimensions.
- The structural components of the mill’s wetted portion are made of stainless, chemically resistant steel.
- The mill can have the rotor/stator tooling of various types and the number of operating stages (rings) depending on the type of processed substance and required impact (nozzle, chamber, cone for milling, cone for viscous products).
- The tools can be collapsible, or made from a solid workpiece and various grades of steel depending on the specific application of the mill.
- The mill can be operated both indoors and in sheltered outdoor areas.
What types of processes can be performed using GlobeCore colloid mills?
Preparation, dissolution, wet grinding, and processing of a wide variety of materials, depending on the design features of the working tool.
What types of rotor/stator milling tools are the mills equipped with?
The mills can be equipped with various types of rotor/stator tools, which can be broadly classified into the following categories: nozzle-type, chamber-type, conical (for grinding), conical (for viscous products), or combined configurations.
The type of rotor/stator tool and the number of processing stages (rings) are selected depending on the required intensity of mechanical and thermal treatment of the product.
The tools can be either dismountable or machined from a single solid blank. They can also be manufactured from different grades of steel, depending on the intended application. This allows the optimal tool geometry and material to be selected for each specific processing task.
What types of steel can be used to manufacture the flow-contact parts and components of GlobeCore colloid mills?
The flow-contact parts and components can be manufactured from structural steels, corrosion-resistant stainless steels, and food-grade steels.
Is it possible to adjust the gap between the rotor and stator?
The gap can be either preset or adjustable, typically ranging from 0.2 mm to 2 mm.
