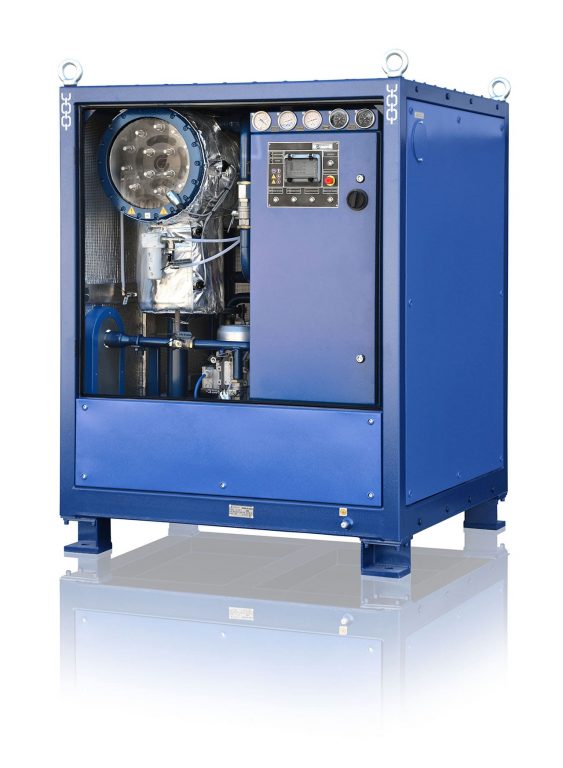

    CMM-2.2 MOBILE OIL PLANT

    blank

    The CMM-2.2 mobile oil plant removes solid particles, water and gases from dielectric insulation oil1.

    The plant is used in the process of installation, repairs and operation of high voltage oil filled equipment (power transformers2high voltage switches3 etc).

    Operating conditions range:

    • ambient temperature from 278 to 313°К (+5 to + 35°C/ 8°F to 104°F);
    • atmospheric pressure 84 to 106.7 kPa (630 to 800 mm.hg);
    • elevation up to 2000 meters/6561 feet above sea level;
    • outdoors and under canopy;
    • indoors with adequate ventilation.

    Parameter Value
    Capacity, m3/hour  / gallon per hour:
    • thermal vacuum drying mode;
    2.2/582.34
    • degassing mode
    1.0/264.7
    Processed oil parameters*:
    • mass moisture content, g/ton, max
    10
    • filtration fineness, micron
    5
    • total gas content, % max
    1.5
    Max oil output temperature in heating mode, ºС/ ºF 60/140
    Min outlet pressure, MPa 0.2
    Oil heater power, kW max 36
    Max power consumption, kW 40
    Electric power
    • voltage, V
    380
    • AC frequency, Hz**
    50/60
    Dimensions, mm/ft
    • length
    1550/5’1’’
    • width
    1000/3’3’’
    • height
    1850/6’1’’

    Note: * Parameters indicated in the table imply the following initial conditions:

    • volumetric gas content – below 10.5%
    • mass moisture content – below 0.005% (50 g/ton)
    • temperature – above 0 ºС/32 ºF
    • with initial heating of oil in the unit to +60± 5оС/ 140°± 9 ºF.

    **All equipment sold in the USA is designed to operate on 60 Hz AC Power

    • No need any sorbents, silica gel or zeolite for oil drying process
    • Unit is compact, protected with metal doors, can be trailer mounted for on field usage
    • Easy to operate and maintain, one-man operation
    • Low energy consumption, noiseless and highly effective
