CMM-1 MOBILE OIL PLANT

CMM-1 MOBILE OIL PLANT

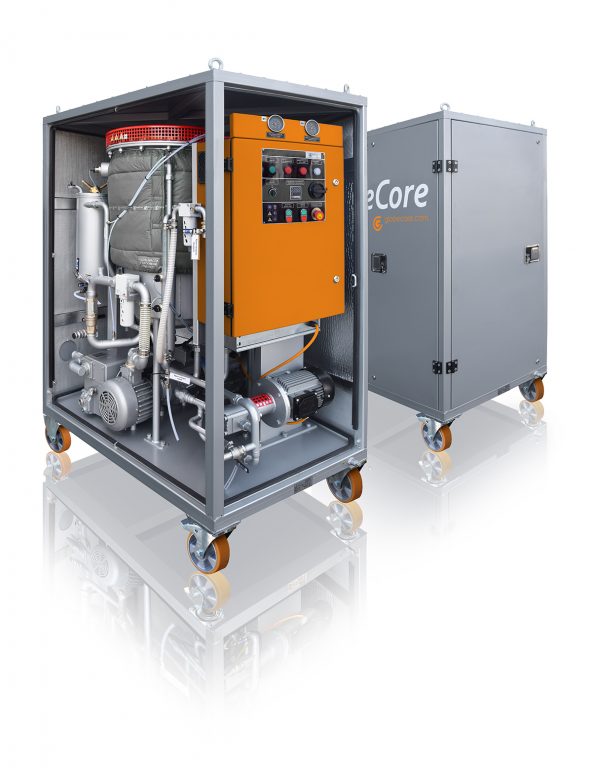

The CMM-1 mobile oil plant is assembled on a frame supporting all key components, including input and output oil pumps, a dielectric control cabinet, a vacuum chamber, coarse and fine cartridge filters, a vacuum pump, and pipelines with valves. The plant has a capacity of 1.0 m³/hour (264.7 gallons/hour).

DESCRIPTION
SPECIFICATION
ADVANTAGES
Application
Video
Publications

The plant is assembled on a frame, supporting the unit’s components: input and output oil pumps, dielectric control cabinet, vacuum¹ chamber, coarse and fine cartridge filters², vacuum pump³ and pipelines with valves.

Parameter	Value
Capacity, m³/h (gal/h)	1.0/ 264.7
Max oil outlet temperature in heating mode, °C/°F	60/ 140
Processed oil parameters*:	10.0
• mass moisture content, g/t, max	10.0
• filtration fineness, micron	5
Oil output head, m/ yd	20/ 21.86
Max inlet pressure, MPa	0.1
Oil heater power, kW	25.2
Oil heater max mean surface power, W/cm²	1.1
Nominal power, kW	29
50 Hz AC power voltage, V**	380
Dimensions, mm/ft	1,300/ 4’3’’
• length	1,300/ 4’3’’
• width	800/ 2’8’’
• height	1550/ 5’1’’
Weight, kg/lbs	540/ 1,193

Note: * Initial oil parameters:

Mass moisture content – below 0.05 % (50 g/t);
heating of oil in the unit up to +60 ºC ±5 ºС/ 140 ºF ±9 ºF for 30 minutes;
gas content below 10 %.

**All equipment sold in the USA is designed to operate on 60 Hz AC power.

Oil is purified by heat and vacuum, no need to reactivate or dispose of sorbent media
Easy operation and servicing
Mobility
Several operation modes (filtration, heating, filtration and vacuum purification, degassing)
