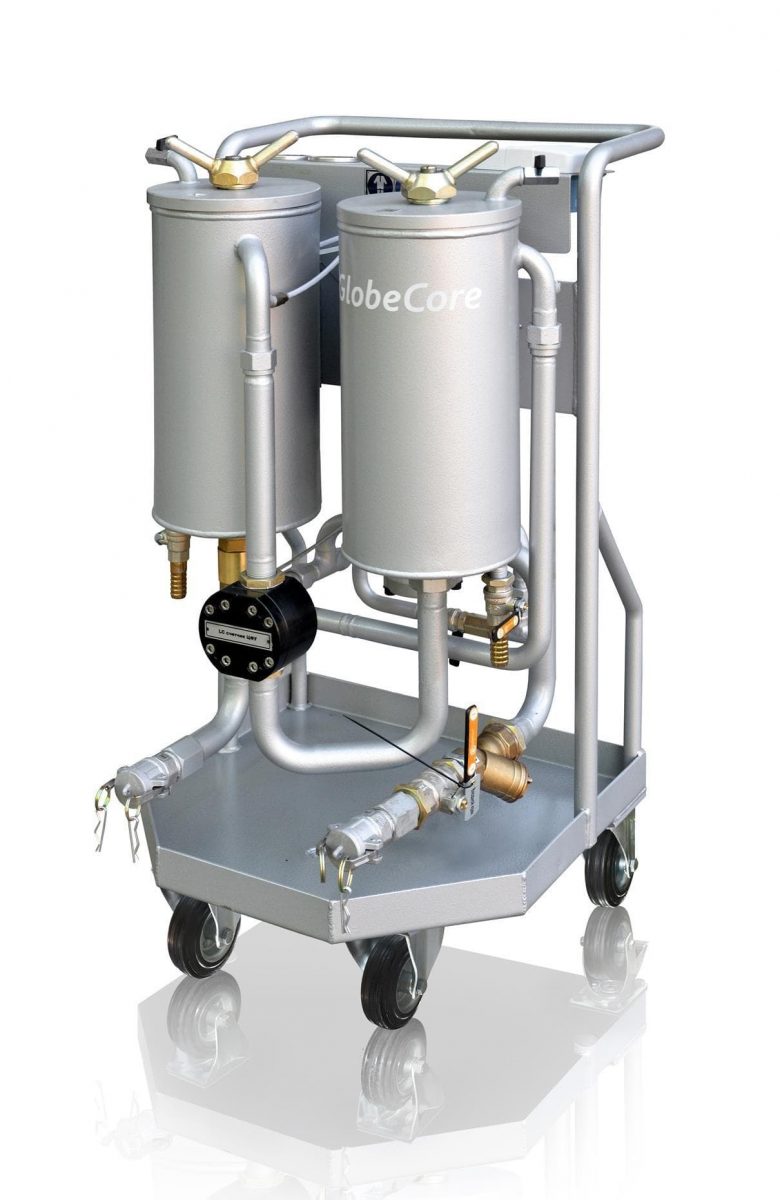

CMM-4,0F Oil filtration unit

The CMM-4,0F unit is an on-site portable filtration1Oil Filtration is a partial removal of solid particles through filter medium. Oil...
    Advantages
    • Easy to maintain and operate;
    • Compact size;
    • Mobility;
    • Spare parts included.

The CMM-4,0F unit is an on-site portable filtration1Oil Filtration is a partial removal of solid particles through filter medium. Oil filtration systems generally use a multistage filtration with coarse and fine filters. Centrifugation is separation of oil and water, or oil and solid particles by centrifugal forces. unit designed for removal of solid particles from lube and dielectric insulation oils2Insulating oil is an oil that is stable at high temperatures and has excellent electrical insulating properties. with viscosity3Absolute viscosity provides a measure of a fluid’s internal resistance to flow. of no more than 70 cSt at 50°C/122°F.

Ambient conditions for operation:

  • ambient temperature 283 to 308 K (+10 to +35°C/ 49.7 to 97.73°F);
  • pressure 84 to 106.7 kPa (630 to 800 mm.hg);
  • elevation up to 2000 meters/6561 feet above sea level;
  • explosion and fire safe area.

The CMM-4,0F is an on-site filtration cart featuring an adsorption4Adsorption is the adhesion of atoms, ions or molecules from a gas, liquid or dissolved solid to a surface. filter5Filter is a device which separates solids from fluids (liquids or gases) by adding a medium through which only the fluid can pass. that is designed for: (1) removal of solid particulate matter; (2) removal of ash; (3) removal of dissolved water; (4) removal of water-soluble acids; and (5) removal of alkali from industrial oil with viscosity of no more than 70 cSt at 50°C/122°F.

Ambient conditions for operation:

  • ambient temperature +10 to +35°C/ 50 to 98°F);
  • pressure 84 to106.7 kPa (630 to 800 in. hg);
  • max elevation above sea level 2000 meters/6561 feet;
  • Explosion and fire-proof area.

Parameter

Value

CMM-1.0F

CMM -2,0F

CMM -4,0F

Capacity, m3/hour / gals. per hour

1.0/264

2/528

4/1056

Filtration fineness, micron**

5

5

5

Nominal power, kW

0.75

1.1

1.5

Output oil pressure, bar

5

5

5

AC 50 Hz power voltage, V**

Any options on customer’s request

Any options on customer’s request

Any options on customer’s request

Dimensions, mm (in):

– length

– width

– height

580 (23)

560 (22)

1115 (44)

580 (23)

560 (22)

1115 (44)

580 (23)

560 (22)

1115 (44)

Weight, kg (lbs)

115/254

125/276

145/320

*Depends on the type of oil processed

**Filtration fineness and voltage parameters may vary depending on the requirement of the Client or the region of use of the product

Note. Specifications are valid for oils, which contain no:

  • surfactants or other substances facilitates trapping water in the oil;
  • water emulsions created mechanically or chemically.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
