USB-5 high-speed mixing unit for production of sanitizers (1.1 m3/cycle)

GlobeCore / Products / Blending systems / USB-5 high-speed mixing unit for production of sanitizers (1.1 m3/cycle)

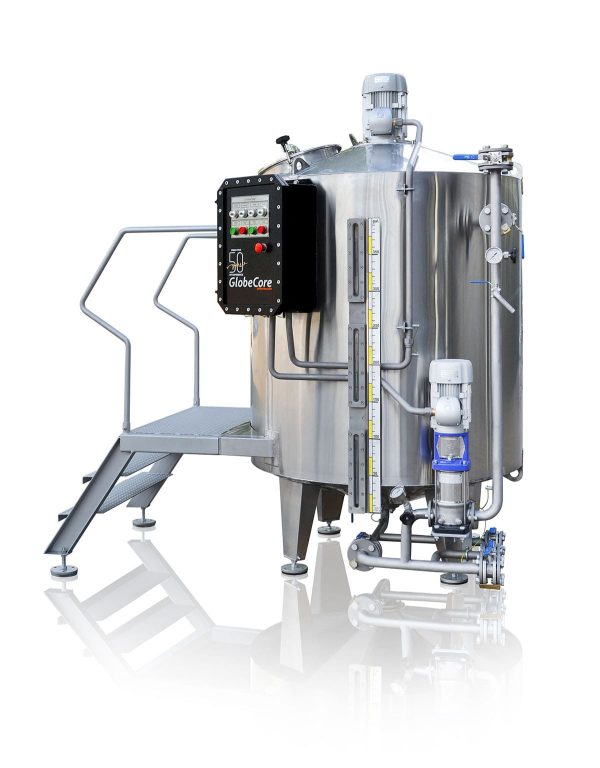

USB-5

USB-5 batch-type unit is intended for production of sanitizers based on alcohols and water solutions. The design provides for mixing...
    Advantages
    • reasonable price;
    • compact sizes and light weight;
    • simplicity of design;
    • mixing two to four ingredients;
    • the unit design allows for operation at both newly constructed and existing enterprises.

USB-5 batch-type unit is intended for production of sanitizers based on alcohols and water solutions. The design provides for mixing two to four separate liquids (main ingredient, additional ingredients) fed batchwise by a transfer pump into a tank equipped with a mixer. If necessary, it is possible to increase the quantity of mixed ingredients. The free-flowing ingredients which are soluble in liquid and have the particle sizes permissible for utilized transfer pump can be added through a feeding hatch.

Seq.

No.

Indicators

Values
1. Quantity of mixed ingredients

2–4*
2. Capacity, gal./cycle, not less than

300*
3. Number of recommended operating cycles, cycles/hour

2
4. Total tank volume, gal.

450
5. Minimum operating volume, gal.

200
6. Maximum operating volume, gal.

375
7. Mixer rotation speed, rpm

1,141
8. Required power, kW

5.3
9. Power voltage (60 Hz, 3 phases), V

480
10. Dimensions in working position, mm (inch)

– length

– width

– height



2,200 (86.6)

1,550 (61)

2,300 (90.6)
11. Weight, kg (lb), not more than

450 (204)
12. Dimensions in packaging, mm (inch)

– length

– width

– height



2,500 (98.4)

1,650 (65)

1,500 (59)
13. Weight in packaging, kg (lb), not more than

600 (272)

* The quantity of mixed ingredients and the capacity depend on the formulation.

Aplication :

  • reasonable price;
  • compact sizes and light weight;
  • simplicity of design;
  • mixing two to four ingredients;
  • the unit design allows for operation at both newly constructed and existing enterprises.

Aplication :

GlobeCore High-speed Mixing Unit Application Fields

GlobeCore impeller mixers can be used in chemical, building, food, pharmaceutical, cosmetic, oil and other industries.

GlobeCore impeller mixers application in chemical industry:

GlobeCore impeller mixers application in building industries:

GlobeCore impeller mixers application in food industry:

GlobeCore impeller mixers in pharmaceutical industries:

GlobeCore impeller mixers application in cosmetic industry:

GlobeCore impeller mixers application in oil industry:

GlobeCore impeller mixers application in other industries:
