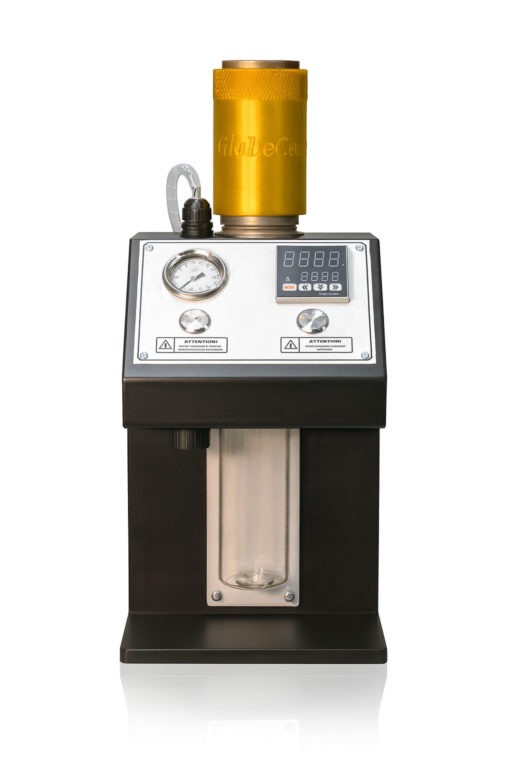

Laboratory Oil Filtration Unit СММ-0,001U

GlobeCore / Products / Oil Regeneration / Laboratory Oil Filtration Unit СММ-0,001U
The purpose of the laboratory СММ-0,001U unit is to test the possibility of purifying1Oil (fuel) purification removes oil contaminants in order...
    Advantages
    • compact size;
    • easy transportation;
    • connects to a normal power socket;
    • cleans oil samples on-site;
    • quiet operation.

The purpose of the laboratory СММ-0,001U unit is to test the possibility of purifying1Oil (fuel) purification removes oil contaminants in order to prolong oil service life. a specific petrochemical product.

The types of mineral oil which can be regenerated & filtered, among others, are:

  • industrial oil;
  • transformer oil2Transformer oil is an oil that is stable at high temperatures and has excellent electrical insulating properties.;
  • turbine oil3Turbine Oil – any oil used to lubricate the bearings and auxiliary machinery in steam and hydraulic turbines, in turbopumps, and in air, gas, and refrigeration turbocompressors. Turbine oils are also used as lubricants and working fluids in various types of closed-cycle industrial machinery.;
  • diesel oil4Diesel fuel in general is any liquid fuel used in diesel engines, whose fuel ignition takes place, without any spark, as a result of compression of the inlet air mixture and then injection of fuel.;
  • heating oil5Heating oil is a low viscosity, liquid petroleum product used as a fuel oil for furnaces or boilers in buildings. Home heating oil is often abbreviated as HHO.;
  • hydraulic oil6A hydraulic fluid or hydraulic liquid is the medium by which power is transferred in hydraulic machinery.;
  • vacuum oil;
  • essential oil7An essential oil is a concentrated hydrophobic liquid containing volatile (easily evaporated at normal temperatures) chemical compounds from plants.;
  • transmission oil;
  • gas condensate8Natural-gas condensate, also called natural gas liquids, is a low-density mixture of hydrocarbon liquids that are present as gaseous components in the raw natural gas produced from many natural gas fields.;
  • kerosene9Kerosene, also known as paraffin, lamp oil, and coal oil (an obsolete term), is a combustible hydrocarbon liquid which is derived from petroleum..

DESIGN

The unit consists of:

  • oil filtration10Oil Filtration is a partial removal of solid particles through filter medium. Oil filtration systems generally use a multistage filtration with coarse and fine filters. Centrifugation is separation of oil and water, or oil and solid particles by centrifugal forces. pod;
  • frame;
  • vacuum11Vacuum is space devoid of matter. An approximation to such vacuum is a region with a gaseous pressure much less than atmospheric pressure. chamber;
  • vacuum pump12A vacuum pump is a device that removes gas molecules from a sealed volume in order to leave behind a partial vacuum.;
  • piping;

The filtration pod is a vessel, half-filled with sorbent13A sorbent is a material used to absorb or adsorb liquids or gases. which regenerates the percolating oil. Sorbent and oil are put into the pod from the top.

The bottom of the pod has a lid, through which the pod is evacuated and from which saturated sorbent is extracted. The regenerated oil is pumped out from the bottom as well.

The external surface of the pod is wrapped with an electric heater tape and insulated.

The frame is a metal structure supporting all the unit’s components.

The Vacuum chamber is a rectangular vessel filled with regenerated oil. The top part of the vessel is equipped with a ball valve to connect the chamber with the vacuum pump. The bottom of the vessel is equipped with a ball valve, through which the oil is sucked into the vacuum vessel, and a valve to drain the oil. The vessel is also equipped with a visual liquid level meter and a vacuum gauge.

The Vacuum pump creates vacuum in the vacuum chamber.

Name of parameter Value
1 Regeneration productivity, l/h:

– transformer oil

– industrial oil *

3-5*

2-4*

 2 Regenerating powder consumption in % from the weight of cleaning oil

– transformer oil

– industrial oil *

3-10*

3-10*

3 The weight of regenerating powder for filling, kg 3
4 Loss (oil product) in % from initial volume (that what remains in a sorbent)

– transformer oil

– industrial oil

1-5

1-5

5 Total capacity of heaters, kW 0,16
6 Rate capacity, kW 1,0
7 Voltage of the one-phase alternating current main with a frequency of 50 (60) Hz, V 220
8 Overall dimensions, mm not more

– length

– width

– height

500

550

750

9 Weight, kg not more 50
