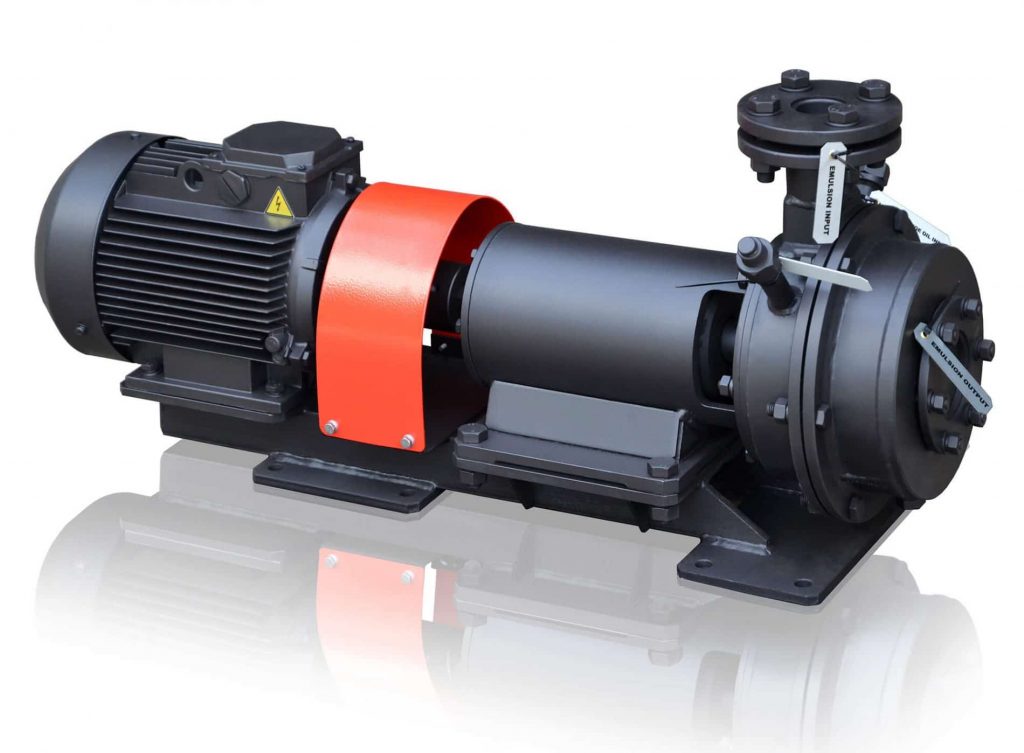

INDUSTRIAL MIXER – COLLOID MILLS CLM-4 SMALL
INDUSTRIAL
-
ADVANTAGES
- Delamination resistance of mixture;
- Equipment of high-quality;
- Fast order execution time;
- Efficient replacement of turbine stirrer;
- Works in standalone mode;
- Thermal jacket;
- Adjusted rotor-stator gap without need of disassembling;
- Fine grinding up to 1 μm;
- Temperature modes from -30 to 180 ° C.
- Optional soundproofing.
The CLM-4 industrial mixer1, is designed for the production of highly stable colloidal2 solutions, extremely fine suspensions3, mixtures4 and emulsions5. “Wet” grinding technique is used, as the rotor and stator cone gap is wider at the inlet and narrower at the outlet. Additionally, the complex micro relief of the stator surface creates increased turbulence, shearing the particles. Under the influence of centrifugal force and high velocity of the rotor relative to the stator, liquid and semi-liquid substances are finely dispersed6 and homogenized7, any mix of materials are also emulsified, homogenized and dispersed.
The CLM-4 industrial mixer allows for simultaneous dispersion and homogenization. Heating jacket allows to heat or to cool the crushing zone as required.
The CLM-4 industrial mixer features high production rate; it allows to produce highly stable emulsions as well as colloid suspensions, and ensures high degree of homogenization with particle size down to 1 micron8.
Additionally, cavitation9 occurs in the mill, i.e. explosion of micro cavities by internal pressure. The mill can be retrofitted into existing production lines. To facilitate high quality milling, the product must enter the mill at designated solid to liquid phase ratio and at a constant rate.
Particle size and pumping performance may vary depending on physical and mechanical properties of the material and carrier phase.
Industrial mixer CLM-4 and its modifications are applied in:
- road-construction industry, for bitumen modification10 by polymers etc, for producing anionic11 and cationic bitumen emulsions12, liquid rubber13 and so on.
- machine-building industry, for the production of lubricating and cooling emulsions, lubricants, process mediums for cooling in heat intensive processes.
- power industry, for heavy oil in water emulsion production and burning in boiler houses and other power generation systems (reduces heavy oil consumption by 7-10% due to increased combustion efficiency, boiler efficiency increase by 2-3%, decrease of carbon and nitrogen oxide emissions up to 50%, waste product disposal). Conversion of liquid oil waste products into fuel (oil refinery, seaport, industrial waste). Mixing of stable fuel emulsions from oil sludge.
- chemical industry, for improvement of interphase component contact in multiphase heterogeneous systems, for extracting14, for oil product and waste water purification, for production of household chemicals, glues, varnishes, polishes and antiseptics.
- paint industry.
- food industry, for dairy processing, for fat emulsion production, for corn starch production, for making of fruit puree, mayonnaise, yoghurts, soft cheese, kefir, condensed milk, melted cheese, for milk powder and cream production.
- pharmaceutical, perfumery and cosmetic industries, for the production of high quality stable shampoos, gels, creams, emulsions, medical products, ointments, pastes.
№ | Parameter | CLM – 4.1 |
1 | ***Capacity (water), m3/hour | 4 |
2 | Operating pressure, bar. | 0,5 |
3 | Rotation speed, RPM. | 3000 |
4 | **Max heat carrier temperature, °С. | 160 |
5 | **Minimum coolant temperature, °С. | -4 |
6 | Dispersion, microns. | <50 |
7 | Nominal pressure/suction bore diameter, mm. | 32/65 |
8 | Drive power, kW. | 5,5 |
9 | *Dimensions, mm:– length
– width – height |
960
310 400 |
10 | Weight, kg. | 125 |
Note.
* – Dimensions are driven assembly.
** – If necessary, the product can be either heated or cooled to a desired temperature.
*** – Depending on the physical and chemical characteristics of the product capacity may vary.
Warranty period is 12 months from the moment of commissioning.
Equipment can be delivered to anywhere in the world.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
