GlobeCore / Products / Wind Turbine Service / CMM-G wind turbine gearbox oil changer (with dimensions adapted to the customer's trailer ones)

500 LPH filling rate | 250 LPH drain rate | 1250 L tank size | Generator

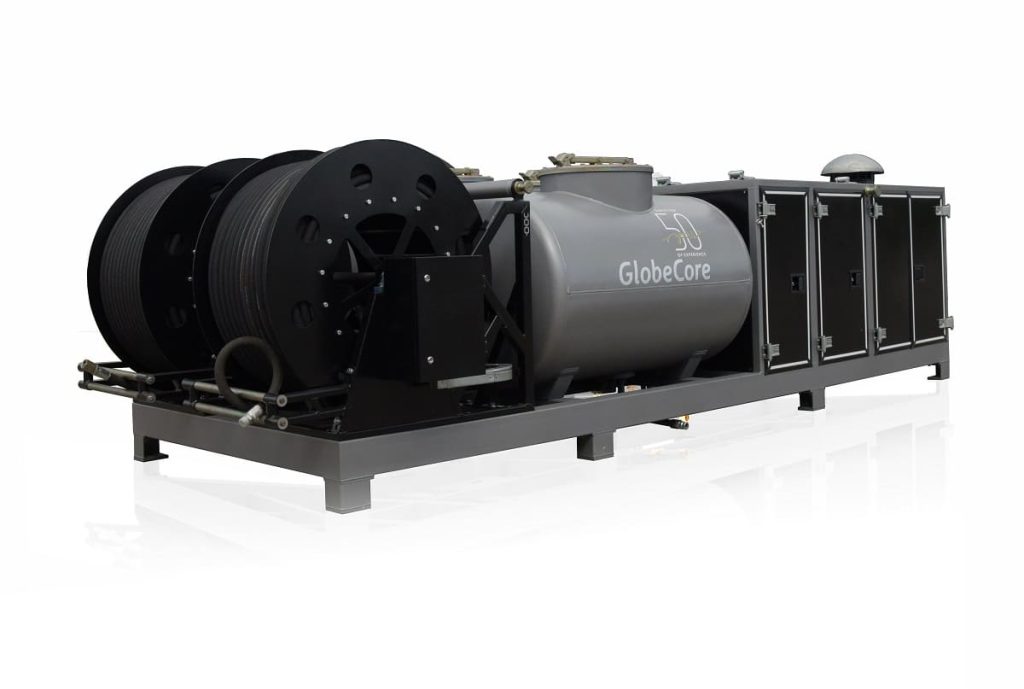

The CMM-G unit is designed to perform all operations related to changing oil in wind turbine gearboxes and can heat clean oil before refilling if needed. The unit is frame-mounted, with dimensions tailored to fit the customer’s trailer, and includes a built-in generator for operation without a grid connection. It supports six operation modes: filling the gearbox with clean oil, pumping used oil out, heating oil before filling, draining used oil from the unit, flushing the gearbox with cleaning oil, and transferring oil between tanks.

The CMM-G unit is designed for changing oil in wind turbine gearboxes including  draining, flushing and refilling. The CMM-G can also heat clean oil before refilling gearbox if necessary. The adaptation of unit’s overall dimensions to the dimensions of the customer’s trailer is a feature of this model.

The equipment is able to function with mineral and synthetic oils of the following properties:

  • kinematic viscosity at 40°С, mm2/s – 8-320;
  • density at 20°С, kg/m3 – 800-900;
  • ISO6 4406 purity class – 14 min.

Principle of operation

It is possible to use the CMM-G unit in six operation modes:

  • filling gearbox with clean oil;
  • pumping used oil out of the gearbox;
  • heating oil before filling the gearbox;
  • draining used oil from the CMM-G unit;
  • washing the gearbox inside with flushing oil;
  • pumping oil from tank to tank.

To supply power to the unit you can use the built-in generator or an external three-phase alternating current network. If the generator is switched on, the possibility of unit functioning in multiple modes simultaneously is blocked.

No.

Parameter

Value

1

Oil output rate, m³/h (gal/min), at least (at an oil temperature of 50°C)

0.5 (2.2)

2

Oil drain rate, m³/h (gal/min), at least (at an oil temperature of minimum 50°C)

0.25 (1.1)

3

Clean oil tank volume, L (gal), max

1,250 (330.2)

4

Flushing oil tank volume, L (gal), max

630 (166.4)

5

Pumped oil temperature in heating mode, °C (°F), max

65 (149)

6

Oil outlet pressure, MPa (psi), min

10 (1,450)

7

Oil heater #1 power requirement, kW, max

6.0

8

Oil heater #2 power requirement, kW, max

6.0

9

CMM-G power requirement, kW, max

11

10

Power supply:

·      voltage, V

·      AC frequency, Hz



Customizable

11

Overall dimensions, mm (in), max

·      length

·      width

·      height

4,960 (195.3)

2,260 (89)

1,560 (61.4)

12

Weight, kg (lbs), max

2,800 (6,173)

  • The unit performs all technological operations related to changing oil in wind turbine gearboxes.
  • The unit is based on the frame, and the unit’s overall dimensions are adapted to the customer’s trailer dimensions.
  • The clean oil tank capacity has been increased to 1,250 liters.
  • There is a built-in generator to power the unit if grid connection is unavailable.

Application:

What is the difference between the CMM-G and CMM-GL units?

The CMM-G is a fully automated unit with 16 operating modes. It allows operators to drain used oil from the gearbox, flush the gearbox housing, and refill it with fresh lubricant with minimal effort. The unit also comes with two tanks for used and clean oil, respectively. The CMM-G has two power supply options: it can operate from its own generator, which is included in the package, or be connected to the wind turbine’s external power supply. The CMM-GL, on the other hand, is a simplified version of the unit with manual controls. This unit can only be connected to the wind turbine’s external power supply.

What is the maximum height at which oil can be changed using the CMM-G and CMM-GL units?

The maximum height is 180 m.

What is the oil change rate at a height of 180 m?

The warmer the oil, the faster the oil change process, provided that the oil has not been overheated. In cold weather, this process takes longer. Overall, the oil change rate depends primarily on the human factor.

What filtration system is installed in the CMM-G and CMM-GL units?

A 12-micron mesh filter.

Can design modifications be made to the units at the customer's request?

For offshore wind turbines, the CMM-G unit is mounted on a frame rather than a wheeled trailer. The dimensions of the CMM-G unit and its storage tanks can be customized according to customer requirements. Additional oil heating can also be ordered. GlobeCore recommends that customers provide an auxiliary tank for flushing oil.

How can oil with a viscosity above 320 cSt be regenerated?

Synthetic gear oil cannot be regenerated. It can only be cleaned of mechanical impurities. It should be noted that the service life of high-viscosity oil depends on the operating conditions of the wind turbine.
