ZP-260 Sorbent Cartridges

Cap: 4000 LPH | Sorbent drying | 5 µm filtration | Two zeolite cartridges

The mobile oil station ZP-260 is designed for purification of lubricating and electrical insulation oils, removing mechanical impurities, and drying oils with a viscosity up to 70 cSt at 40 °C. The unit uses sorbent cartridges specifically engineered for drying oils with zeolite or other adsorbents, and features hatches for quick loading and unloading. Its throughput is 4 m³/h. The cartridges can also be filled with alternative adsorbents such as Fuller’s earth or silica gel, making the unit suitable for oil regeneration and acidity reduction. The ZP-260 is used during the assembly, maintenance, and operation of oil-filled high-voltage equipment up to 1,150 kV, including power transformers, high-voltage switches, and similar devices.
Request Price

ZP-260 sorbent1A sorbent is a material used to absorb or adsorb liquids or gases. cartridges are designed for drying2The drying process should be carried out to remove water from zeolite. of lubrication3Lubrication is the process or technique of using a lubricant to reduce friction and/or wear in a contact between two surfaces. and electrical insulation oils4Insulating oil is an oil that is stable at high temperatures and has excellent electrical insulating properties. by zeolite5Zeolites are microporous, aluminosilicate minerals commonly used as commercial adsorbents and catalysts. or other adsorbents. The unit is equipped with hatches for quick sorbent loading and unloading.  The cartridges of the ZP-260 unit can be filled not only with zeolite, but with other adsorbents, such as Fuller’s earth6Fuller’s earth is any clay material that has the capability to decolorize oil or other liquids without chemical treatment. or silica gel7Silica gel is an amorphous and porous form of silicon dioxide (silica), consisting of an irregular tridimensional framework of alternating silicon and oxygen atoms with nanometer-scale voids and pores., making the unit suitable for oil regeneration8Oil regeneration – is extraction of contaminants from oil in order to restore its original properties to be used equally with fresh oils. and acidity9Acid value (or neutralization number or acid number or acidity) is the mass of potassium hydroxide (KOH) in milligrams that is required to neutralize one gram of transformer oil. reduction.

Parameter

Value

ZP-130

ZP-260

Throughput, m3/h (gal/min)

2 (8.8)

4 (17.6)

Number of vessels

1

2

Total geometric vessel volume, L (gal)

130 (34.3)

260 (68.7)

Oil purity grade as per ISO 4406

-/14/12

-/14/12

Vessel use mode

Series mode only

Parallel or series mode

Filtration, μm

5 (1/ optional)

5 (1/ optional)

Max oil inlet temperature, °С (°F) 40 (104) 40 (104)
Dimensions, mm (in)
– length 900 (35.4) 1,100 (43.3)
– width 760 (29.9) 1,000 (39.4)
– height 2,100 (82.7) 2,190 (86.2)
Weight, kg (lbs) 170 (374) 570 (1,260)

  • Easy operation and servicing
  • Extended oil service life
  • Various configurations (fixed or mobile)
  • Sorbent regeneration by means of BRZ-100 unit with subsequent reuse of sorbent for oil processing

Loading...


Webinars

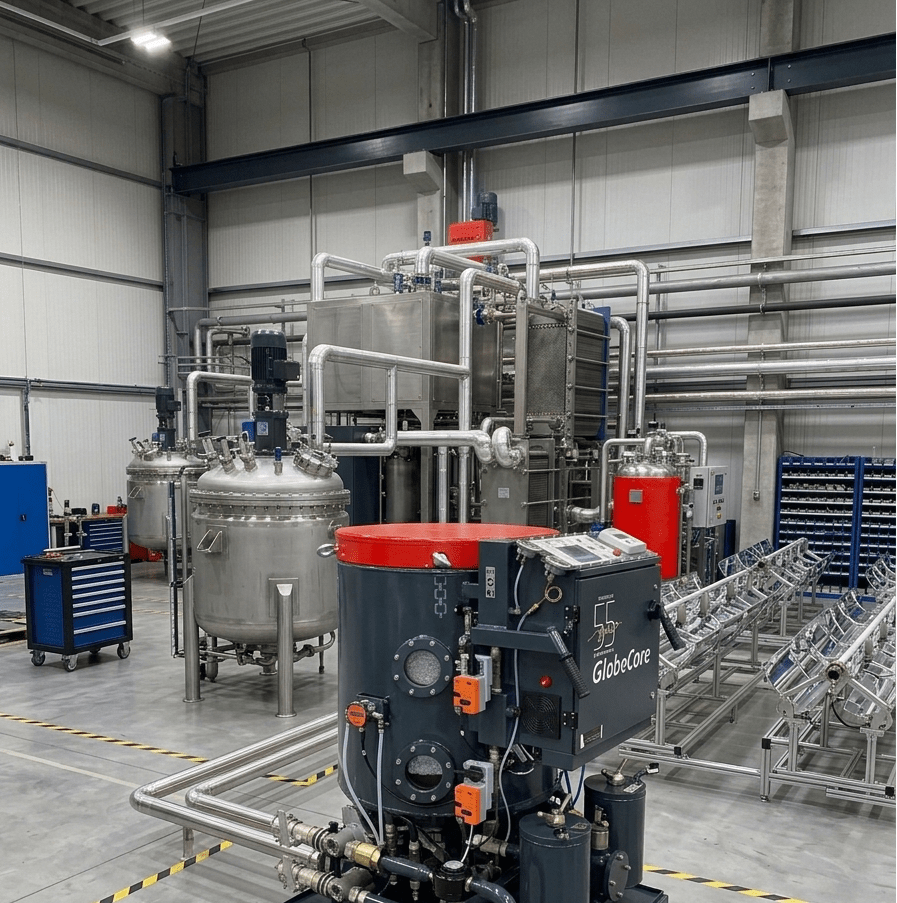

Heat Transfer Oil Purification - Why Mineral HTF Systems Need It
