CMM-4/7 portable oil degassing unit

GlobeCore / Products / Oil Degassing, Thermal Oil Vacuum Drying / CMM-4/7 portable oil degassing unit
CMM 4-7
This GlobeCore mobile oil processing unit is designed for degassing1Transformer oil degassing is a complex of processes targeted at the...
    Advantages
    • no need to use adsorbents to dehydrate transformer oil;
    • operation of equipment causes no air pollution or waste requiring storage and disposal;
    • easy to operate and maintain;
    • maximum oil specifications even after one treatment cycle;
    • low power consumption;
    • low noise level;
    • unit can be easily placed on a trailer and used on site.

This GlobeCore mobile oil processing unit is designed for degassing1Transformer oil degassing is a complex of processes targeted at the removal of water, gasses, and mechanical impurities from the dielectric oil., removal of solids and heating2Oil heating is used for treatment of oil in degassing, drying and regeneration machines to accelerate the process. Dehydration is based on the difference of water and oil boiling points. Since water boiling point is lower, heating can evaporate that water from the oil before the boiling point of oil is achieved. of oil for power transformers3A transformer is a static electrical device that transfers electrical energy between two or more circuits. with voltage up to 1,150 kV.

The unit can be used to: (1) heat electrical systems that contain insulating oil4Insulating oil is an oil that is stable at high temperatures and has excellent electrical insulating properties. with hot oil; (2) for vacuum5A transformer is a static electrical device that transfers electrical energy between two or more circuits. drying of transformers and (3) for vacuumizing6Vacuuming is carried out to remove moisture inside the transformer or to protect it from moisture.. The unit is best suited to facilities that install, repair and service oil filled electric power transformers and other oil filled electrical equipment.

The unit is not certified for use in and around explosive gases, toxic gases or other aggressive environments.

When indoors or other enclosed spaces, exhaust gases must be vented to the outside through hoses or pipelines.

Parameters Value
Capacity, m3/hour / gals. per hour:
  • degassing, nitrogenation, drying and filtration mode
4/1059.0
  • heating and filtration mode
7/1853.0
Capacity adjustment range, m3/hour / gals. per hour: 0.5-4.0/132-1059.0
Processed oil parameters*:
  • volumetric gas content %, max
0.1
  • mass moisture content, g/ton, max
10
  • ISO 4406 purity class
16/14/12
  • filtration fineness, micron
5
  • dielectric strength, kV, min
70
Oil temperature in heating mode, ºС/ ºF 90/194
Filtration rate ≥50
Outlet pressure, MPa 0.2
Oil output head, meters/yards 20/22
Oil heater power, kW 50
Oil heater mean surface power, W/cm2, max 1.15
Max power consumption, kW 65
Electric power
  • voltage, V
400
  • AC frequency, Hz**
50/60
Dimensions, mm (w/o trailer / with trailer)
  • length
2600/3750
  • height
1250/1840
  • width
1500/1940
Weight, kg (w/o trailer / with trailer) 1000/1400

Note: * initial oil parameters:

  • volumetric gas content – below 10,5%;
  • mass moisture content – below 0,05% (50 g/ton);
  • temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power

Mobile oil plant – GlobeCore



Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].

Aplication :

  • no need to use adsorbents to dehydrate transformer oil;
  • operation of equipment causes no air pollution or waste requiring storage and disposal;
  • easy to operate and maintain;
  • maximum oil specifications even after one treatment cycle;
  • low power consumption;
  • low noise level;
  • unit can be easily placed on a trailer and used on site.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].

Aplication :

The CMM-4/7 unit can be used for:

Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].

Aplication :

Loading...

Manual performance adjustment by valves (or smooth performance adjustment, see option). Functioning in semi-automatic modes. Stepped or smooth (see option) oil heating. PLC control

Automatic performance adjustment. Functioning in automatic modes. Smooth oil heating. Control from PLC + HMI

Frame open design

Shell is available

Performance adjustment with manual valves

Performance adjustment of the vacuum pump is executed with a regulator on the control panel by means of a valve with an electric drive. Visual monitoring of the flow rate is by the flow meter indicator

Performance adjustment of the vacuum pump is executed by setpoint selecting at the control panel screen for maintaining the level in the vacuum column. Setpoint is kept constant by means of a valve with an electric drive. Pump operation is smooth throughout the entire control range. There is a digital meter to control oil flow

The controller program switches the heater stages by contactors according to the algorithm. Operator sets the temperature and it is kept constant automatically

Solid state relay (SSR) adjusts the heater stages' current smoothly and non-contactly. The P-Int-Derivative Controller

Online monitoring the transformer tank oil level. Automatic shutdown of the procesing unit and automatic block of the oil hoses in case of an accident. Automatic performance adjustment option. Automatic smooth direct heating option

The language of text at the controller screen, devices, controls and the language of the technical documentation is English

The language of text at the controller screen, devices, controls and the language of the technical documentation is upon customer's request

Option to select the fine filter contaminant capacity

Option to select the fine filter contaminant capacity

Option to select the fine filter filtration degree

Option to select the fine filter filtration degree

Mechanical flow meter with total flow display

Digital flow meter with current and total flow display

Power supply analyzer displays the current, voltage, frequency by phases and other parameters

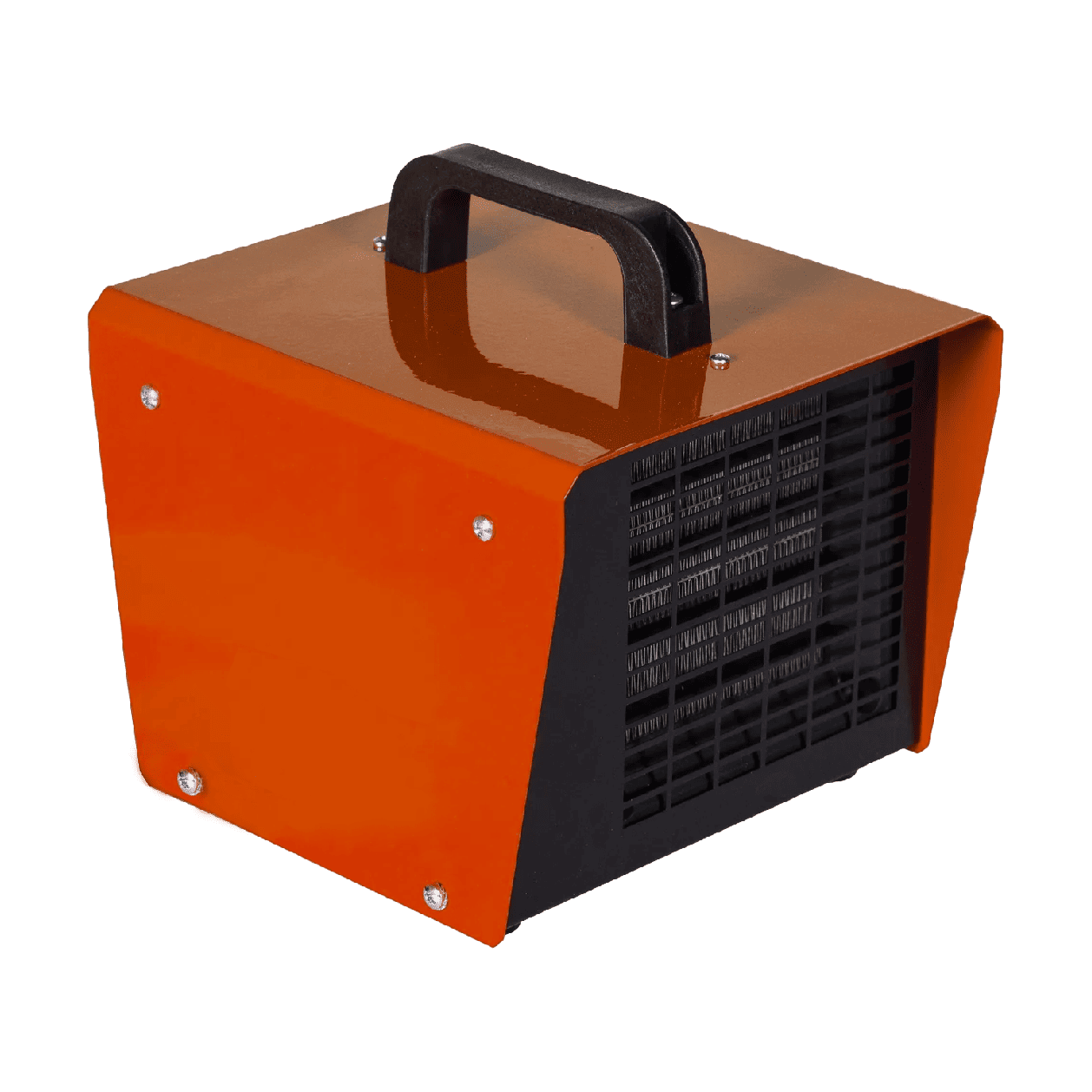

Industrial warmer with forced heat exchange to avoid condensation in the control cabinet

Capacitive transducer determines the activity of water dissolved in the oil and converts it into the absolute moisture content of the oil which entered the unit

Capacitive transducer determines the activity of water dissolved in the oil and converts it into the absolute moisture content of the oil which was processed by the unit

Capacitive transducer determines the activity of water dissolved in the oil and converts it into the absolute moisture content of the oil which entered the unit and which was processed by the unit

Sealing material: valve, rings, pump, gaskets

Sealing material: valve, rings, pump, gaskets

Four-wire flexible copper cable for external power supply

The cable is fitted with an industrial sealed connector, consisting of an internal plug and a cable socket

The cable wires' ends are fitted with a crimp terminals

The cable is fitted with an industrial sealed connector, consisting of an internal socket and a cable plug.
