Plaster production machine USB-5

Plaster production machine USB-5

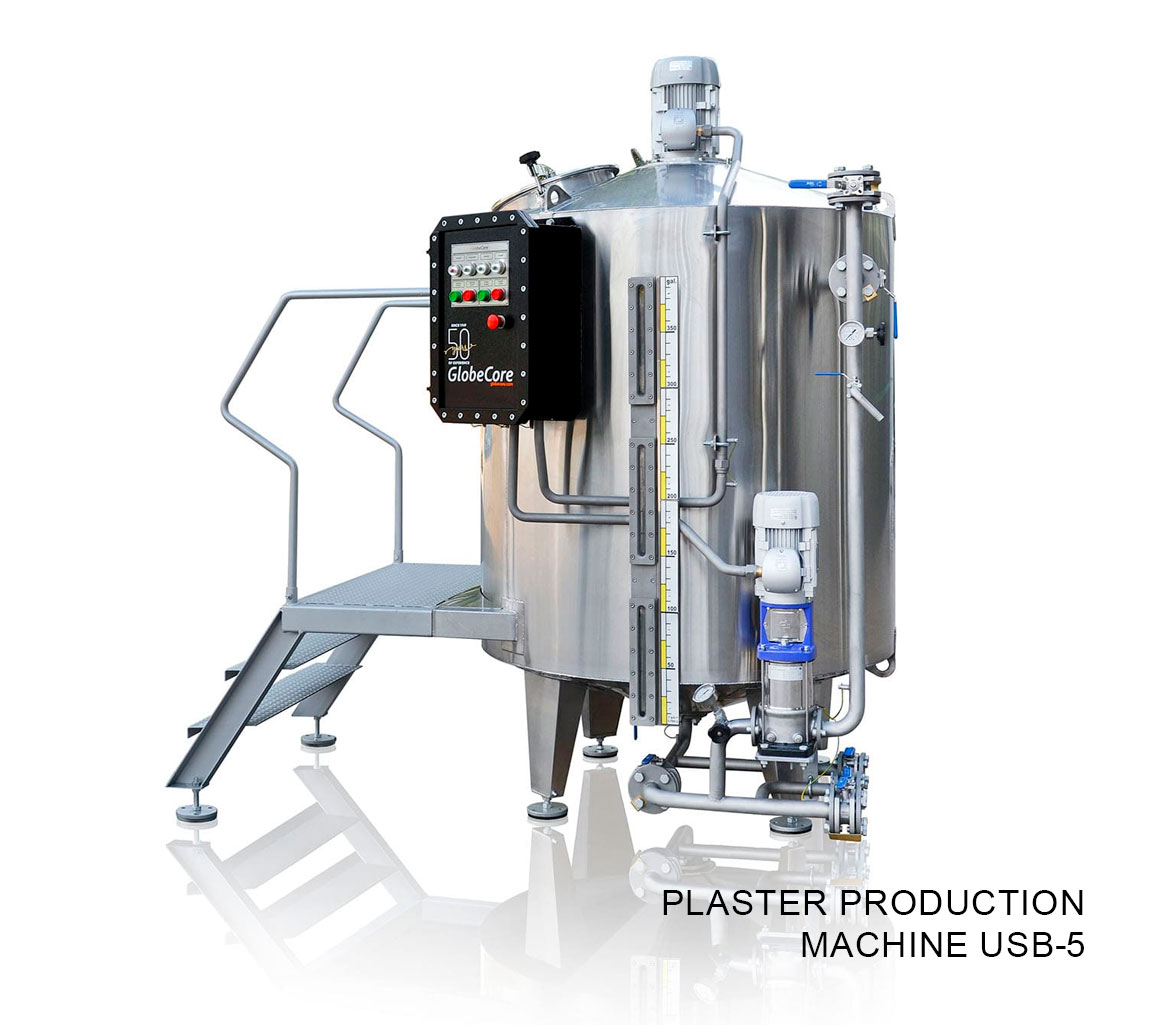

Globecore’s USB-5 plaster production machine is made to quickly and effectively prepare high-quality gypsum material. The device is perfect for businesses in the construction sector that make gypsum mixtures for building products and finishing work.
By precisely combining ingredients like gypsum powder, water, and different additions, USB-5 produces a uniform mass with the best possible consistency. For the purpose of creating gypsum with certain qualities, such as strength, plasticity, and setting time, the unit lets you modify process variables including mixing speed and constituent amounts. Businesses of all sizes can benefit from the USB-5’s user-friendly interface and small size. The unit is simple to maintain and may be readily incorporated into current production lines.

Plaster production machine USB-5 Specifications

Seq.

No.

Indicators Values
1. Quantity of mixed ingredients 2–4*
2. Capacity, gal./cycle, not less than 300*
3. Number of recommended operating cycles, cycles/hour 2
4. Total tank volume, gal. 450
5. Minimum operating volume, gal. 200
6. Maximum operating volume, gal. 375
7. Mixer rotation speed, rpm 1,141
8. Required power, kW 5.3
9. Power voltage (60 Hz, 3 phases), V 480
10. Dimensions in working position, mm (inch)

– length

– width

– height



2,200 (86.6)

1,550 (61)

2,300 (90.6)

11. Weight, kg (lb), not more than 450 (204)
12. Dimensions in packaging, mm (inch)

– length

– width

– height



2,500 (98.4)

1,650 (65)

1,500 (59)

13. Weight in packaging, kg (lb), not more than 600 (272)

* The quantity of mixed ingredients and the capacity depend on the formulation.
