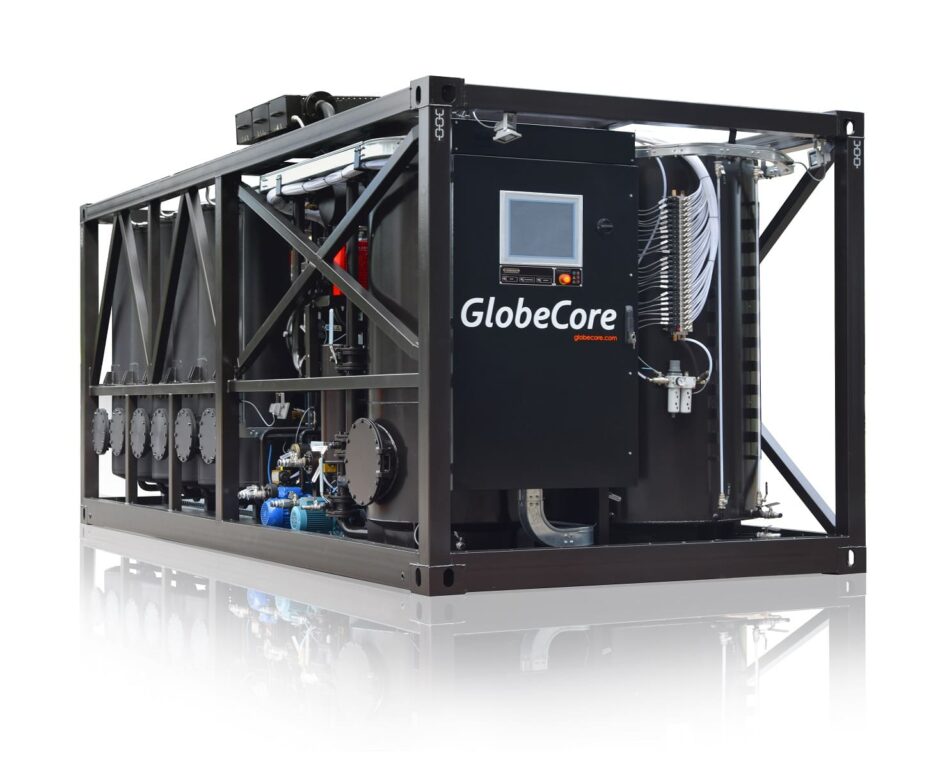

CMM-12R Oil Regeneration System (With Activated Bauxite)

The GlobeCore CMM-12R is a transformer oil regeneration system that restores aged oil by passing it through layers of activated bauxite sorbent. The process removes acidic compounds, sludge and degradation products, making the oil clean, transparent and close in quality to new oil. Regenerated oil can be reused in transformers throughout their service life, eliminating costly disposal and replacement. The CMM-12R supports integration with degassing units and allows sorbent reactivation up to 300 times, providing significant operational savings and sustainable long-term oil maintenance.

Request Price

Description
Specification
Advantages
Application
Configurator
Payback Period
Gallery
Publications

The CMM-12R unit is designed for the regeneration of transformer oil by passing it through layers of a special sorbent – activated bauxite.

During the regeneration process, oil degradation products and acidic compounds are removed, and the oil becomes clean and transparent.

The GlobeCore oil regeneration process restores used oil to a condition close to that of new oil. This process makes it possible to fill transformers with oil that would otherwise have to be disposed of. Such oil can be used in the transformer for its entire service life without replacement.

No.	Parameter	Value
1	Nominal capacity, l/h (gpm)	1000-2000 (4.4-8.8)
2	Oil losses during operation, %	2-25
3	Maximum allowed oil temperature, °C (°F)	90 (194)
4	Outlet pressure, bar (psi)	2.5 (36.25)
5	Maximum power consumption, kW	55
6	Rated vacuum suction speed, l/h (gpm)	280,000 (1232.8)
7	Activated bauxite mass, kg (lbs)	1600 (3527.4)
8	Electrical power parameters
	Voltage, V	Customizable
	Frequency, Hz	Customizable
9	Coarse filtration fineness (mesh filter), µm	100
10	Pre-filtration fineness, µm	25
11	Fine filtration fineness, µm	5
12	Dimensions, mm (in)
	Length	5500 (217)
	Width	2320 (91)
	Height	2450 (96)
13	Weight, kg (lbs)	6000 (13227)

Complete reclamation of waste transformer oils to a condition close to new;
Possibility of use with degassing units;
Possibility of reactivating the sorbent (activates bauxite) up to 300;
Money saving due to reclaiming and reusing the oil in transformers.

Application:

Unit’s total working hours per day, hour

Hourly rate of the unit’s service engineer

kWh cost in your region

Cost of one filter for replacement in your region (fineness of filtration — 0.3 microns)

Cost of one filter for replacement in your region (fineness of filtration — 5 microns)

Cost of one filter for replacement in your region (fineness of filtration — 25 microns)

Cost of one kg Fuller’s earth

Cost of one ton new oil

Cost of one ton used oil

Amount of purified transformer oil per hour, m3/hour

Choose CMM-R Model

CMM-6RL

CMM-10RL

CMM-6R

CMM-12R

Intermediate parameters

kWh cost consumed by the unit for 1 hour of operation

Annual working hours of the unit, hour

Amount of regenerated transformer oil per hour (minus 10%), m3

The cost of buying a new oil

Fuller’s Earth cost per 1 working hour

Cost of oil losses replenishment during regeneration per 1 working hour

Production cost of 1 working hour

Savings (difference between the cost of new and regenerated oil)

Required amount of oil to return investments for the unit, m3

Total amount of oil regenerated by the unit during 1 working day, m3

Payback period for the unit, days
