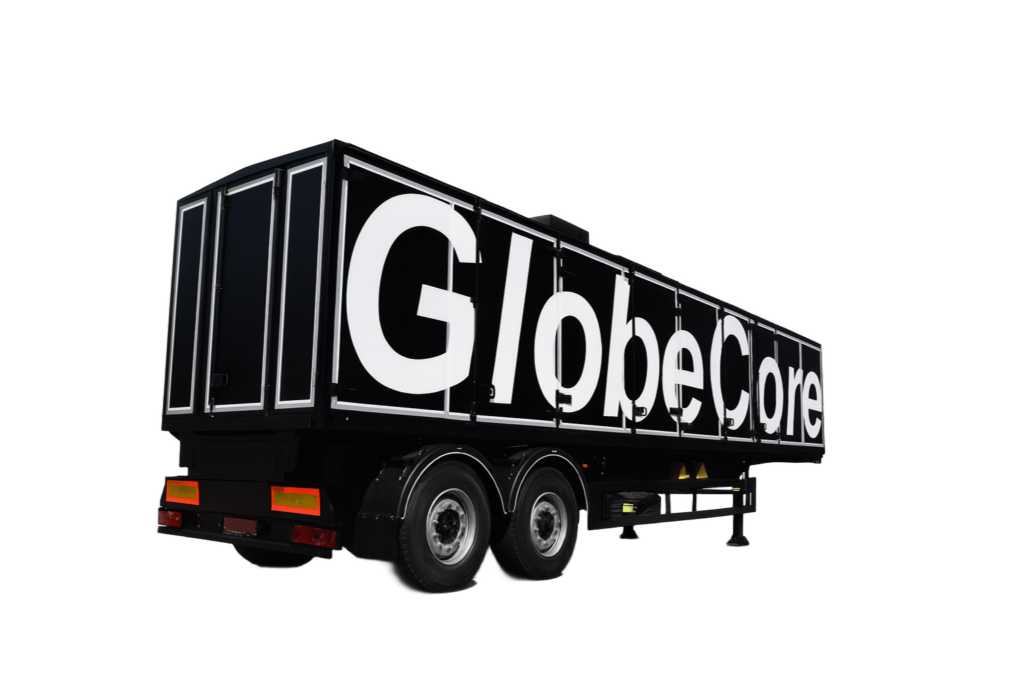

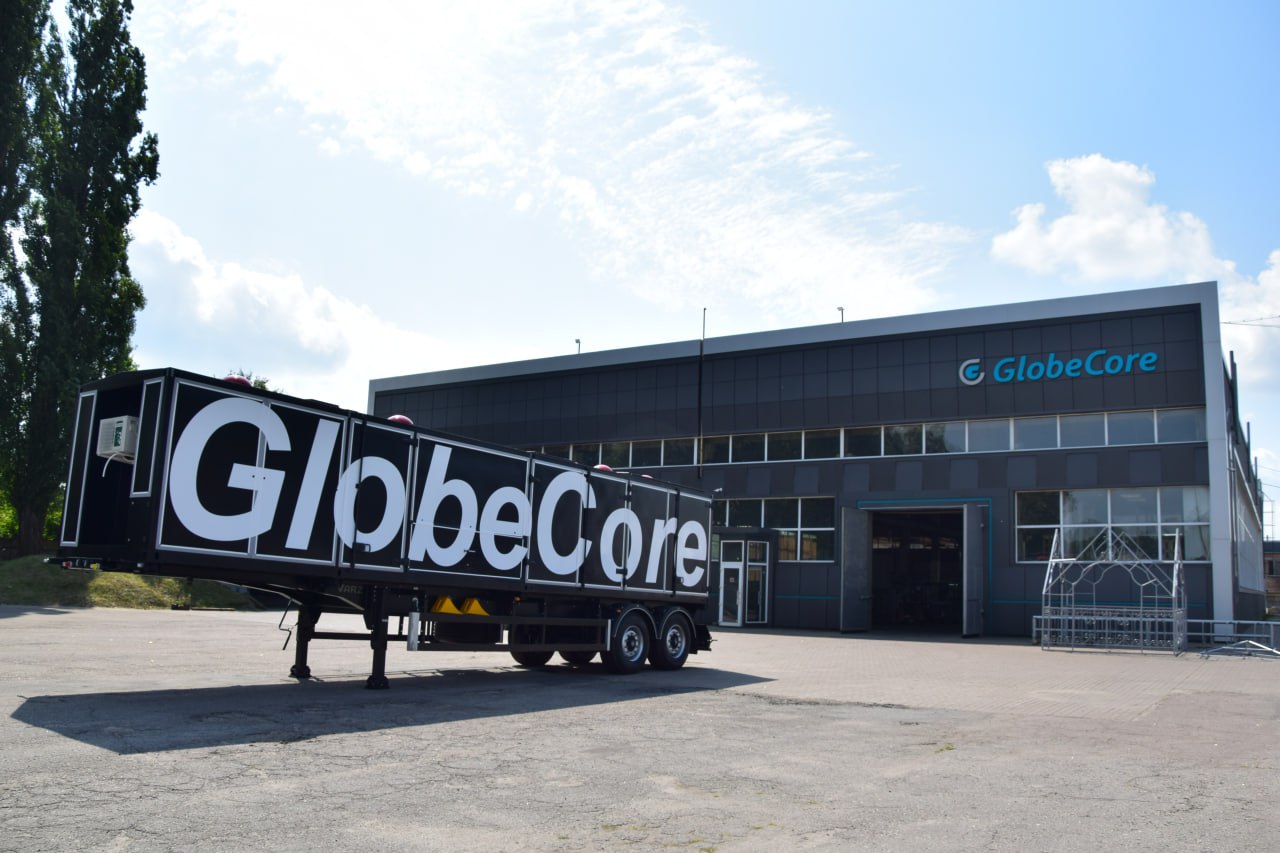

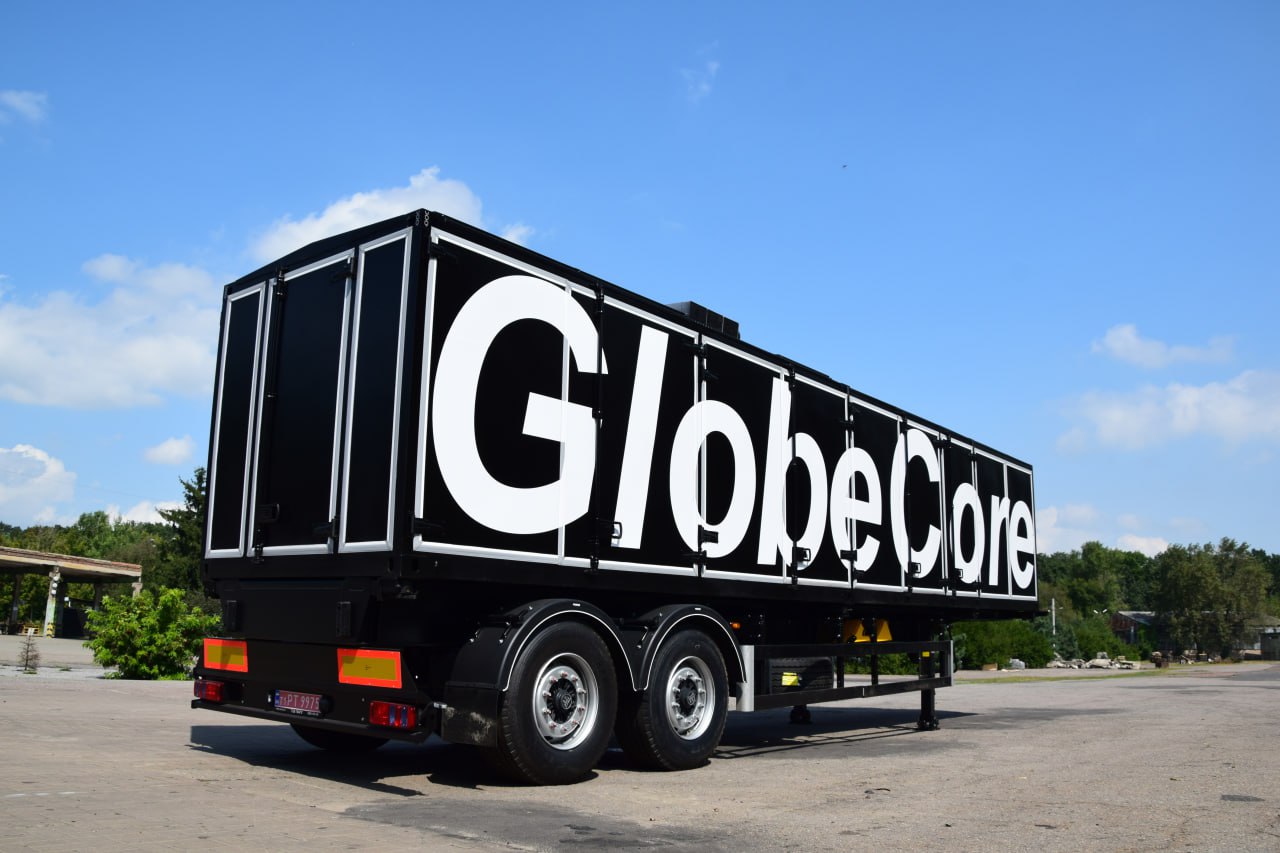

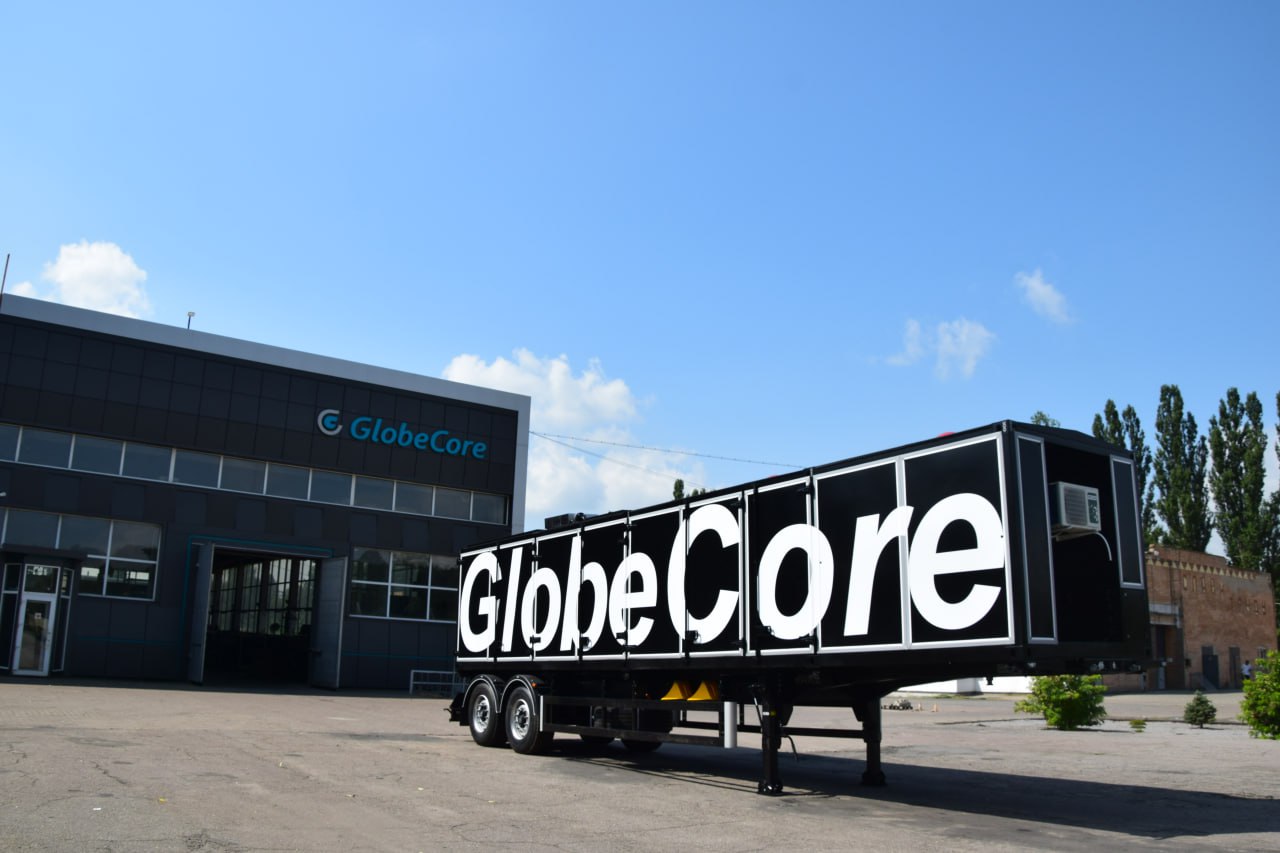

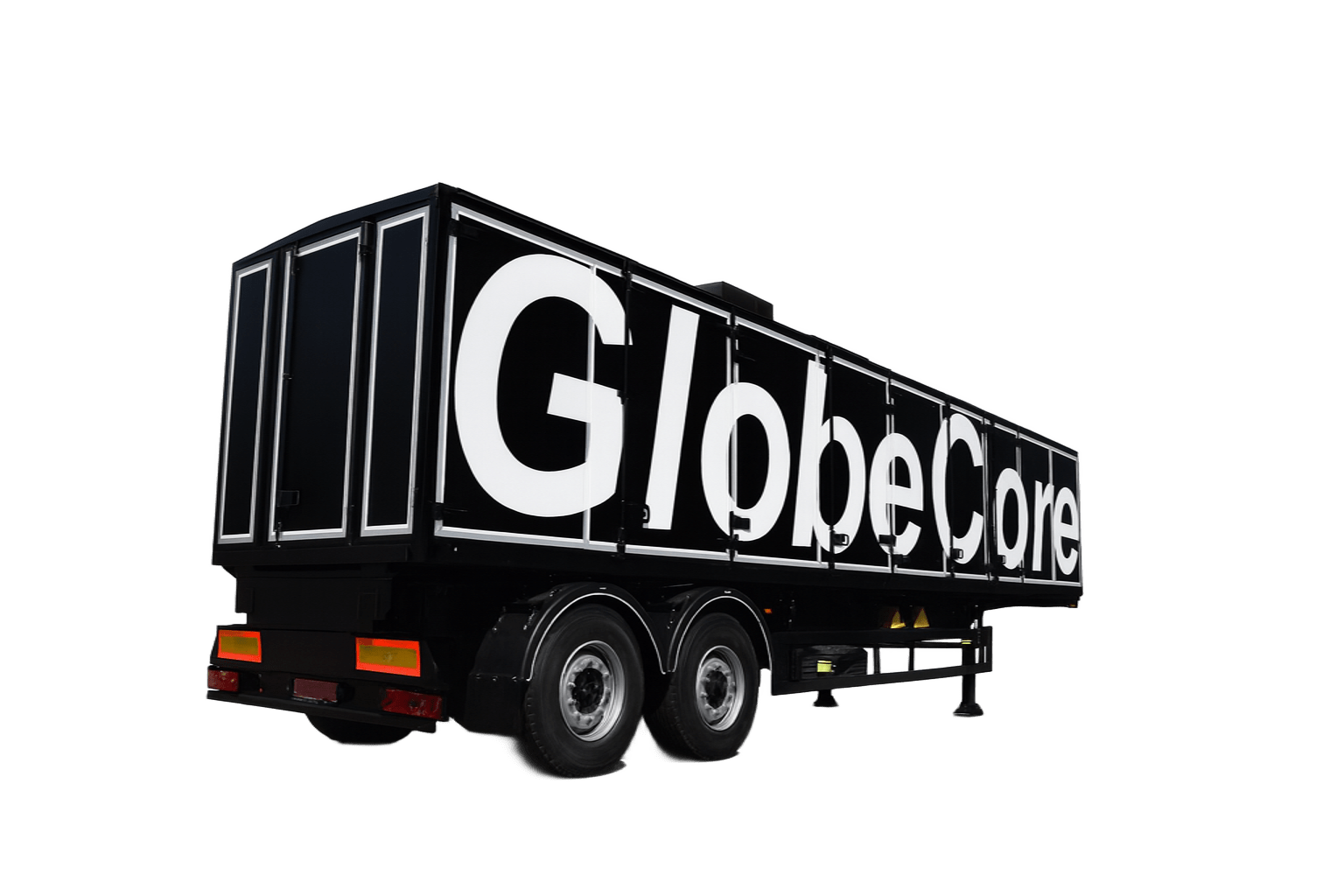

CMM-8RSL/4000 Transformer Oil Regeneration Plant (With Fuller’s Earth)
CMM-8RSL/4000 Transformer Oil Regeneration Plant (With Fuller’s Earth)
Cap: 4000 LPH | Regeneration | Degassing | Sorbent Reactivation
The GlobeCore CMM-8RSL/4000 is a transformer oil regeneration system that restores aged oil by passing it through layers of activated bauxite sorbent. The process removes acidic compounds, sludge and degradation products, making the oil clean, transparent and close in quality to new oil....
Request Price
The GlobeCore CMM-8RSL/4000 is a transformer oil regeneration system that restores aged oil by passing it through layers of activated bauxite sorbent. The process removes acidic compounds, sludge and degradation products, making the oil clean, transparent and close in quality to new oil. Regenerated oil can be reused in transformers throughout their service life, eliminating costly disposal and replacement. The CMM-8RSL/4000 supports integration with degassing units and allows sorbent reactivation up to 300 times, providing significant operational savings and sustainable long-term oil maintenance.
|
Parameter |
Unit |
Value |
| Max throughput (in degassing mode) |
Liters/hour |
4000 |
| Max throughput (in regeneration mode) |
Liters/hour |
4000 |
| Max oil temperature |
оС |
90 |
| Output pressure |
bar |
2,5 |
| Oil heater power |
kW |
75 |
| Vacuum level |
mbar |
0.5-1.0 |
| Fuller’s earth load |
kg |
1200 |
| Max power consumption |
kW |
127 |
| Power supply | ||
| Phases |
3p+1N+PE |
|
| Voltage |
V |
400 / as required |
| AC frequency |
Hz |
50 / as required |
| Connections | ||
| Oil input |
DN |
40/Camlock C150 |
| Oil output |
DN |
40/Camlock C150 |
| Transformer evacuation inlet |
DN |
Flange DN50 |
| Vacuum pump exhaust |
DN |
50 |
| Reactivation exhaust |
DN |
50 |
| Filter elements specifications | ||
| Coarse filter (mesh strainer) |
mkm |
200 |
| Pre-filter with filtering element |
mkm |
25 |
| Regeneration section filter with filtering element |
mkm |
0,3х2 |
| Fine filter with filtering element |
mkm |
1 |
| Dimensions with trailer | ||
| Length |
mm |
8300 |
| Width |
mm |
2950 |
| Height |
mm |
3800 |
| Weight |
kg |
10000 |
New oil specifications after processing
|
Parameter |
Unit |
Value |
| One heat and vacuum degassing cycle | ||
| Moisture content by weigth |
ppm |
10 |
| Gas content by volume |
Vol % |
0.1-0.2 |
| Three heat and vacuum degassing cycles | ||
| Moisture content by weigth |
ppm |
3-5 |
| Gas content by volume |
Vol % |
0.1 |
- Complete reclamation of waste transformer oils to a condition close to new;
- Possibility of use with degassing units;
- Possibility of reactivating the sorbent (activates bauxite) up to 300;
- Money saving due to reclaiming and reusing the oil in transformers.
Application:
GlobeCore delivered three containerized transformer oil treatment complexes to Iraq
GlobeCore has supplied three containerized complexes to Iraq. Each complex includes two units — the CMM-6R for regeneration and the CMM-10 for degassing of transformer oil.The CMM-6R unit is designed...
Read More

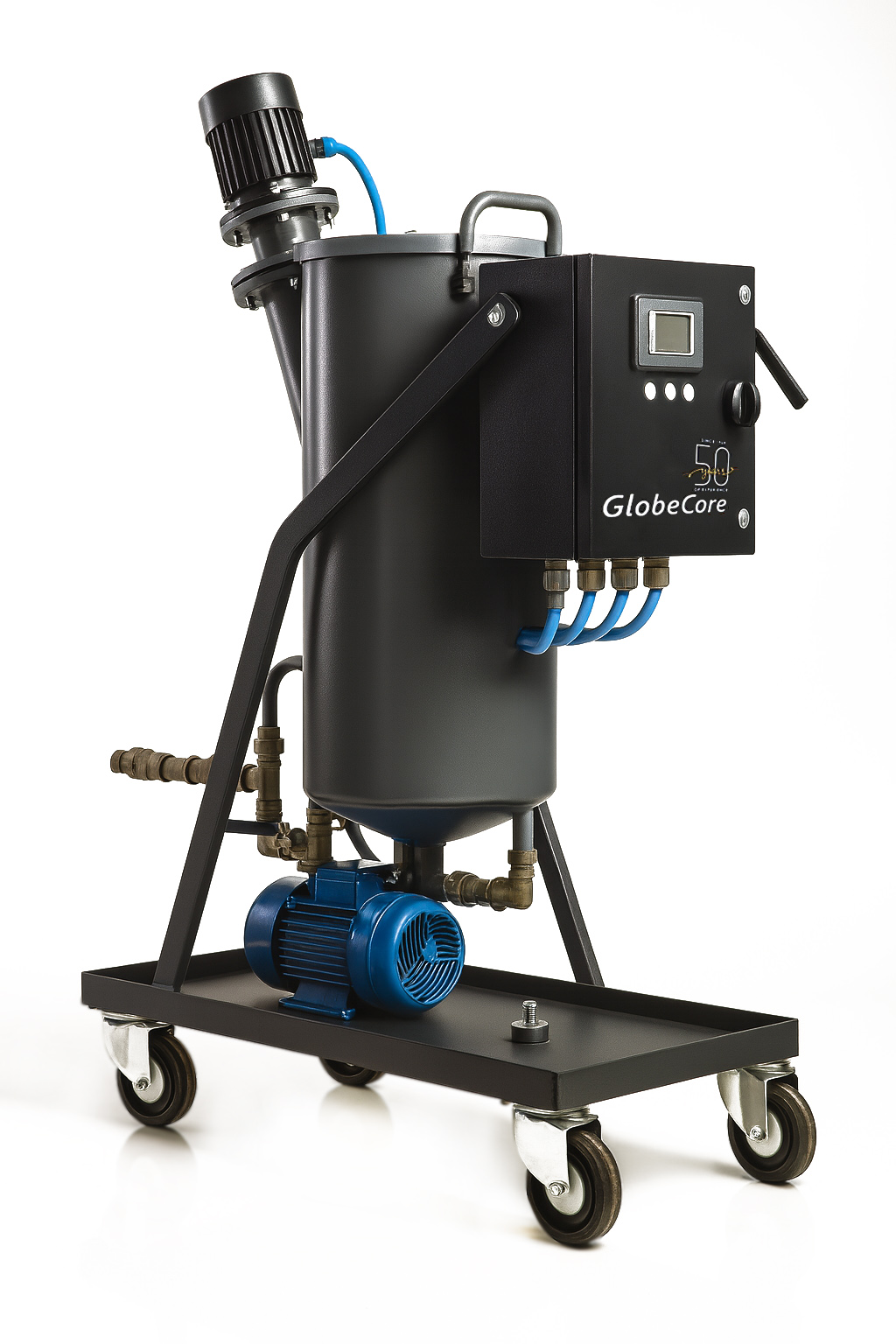

Reactivation clay polishing system for oils and fuels
