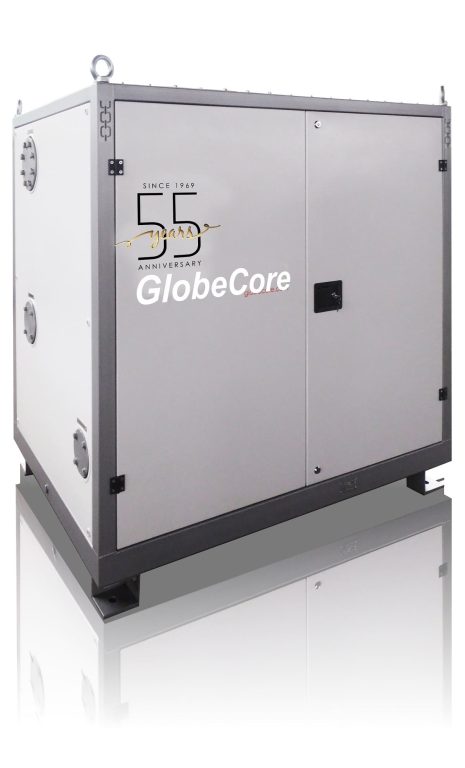

BV-5000 Transformer Evacuation Unit (Capacity 5000 m³/hour)
BV-5000
-
Advantages
- Fast removal of air, vapor, non-aggressive gasses, and vapour-gas mixtures due to a booster;
- Units can be used for servicing and exploitation of oil-filled transformers and high voltage switches up to 1150 kV of voltage;
- Evacuation of a high level.
The transformer evacuation unit BV-5000 is designed to gain the vacuum bulk needed for the evacuation of the transformer tank. Operate the Unit when assembling, servicing, and exploiting oil-filled equipment (power transformers, high voltage switches, etc.) up to 1150 kV of voltage. The unit may be used for transformer evacuation and transformer dry-out. The unit can be used for installation, repair, and maintenance companies that deal with transformer oil treatment and transformer service.
The unit is not fit for operation in an explosive or toxic environment, as well as an environment reactive to lubrication materials.
When operating the unit indoors, install a gas exhaust line to evacuate gases into the atmosphere.
| № | Parameter | Value |
| 1 | Geometric pumping speed, m3/hour | 5000 |
| 2 | Operating vacuum, mbar | <1 |
| 3 | Cooling method | Air |
| 4 | Maximum power consumption, kW | 32 |
| 5 | Connection, inlet/outlet | Dn200/Dn65 |
| 6 | Dimensions mm, not more: | |
| 7 | – length, mm | 2350 |
| 8 | – width, mm | 1440 |
| 9 | – height with/without eyebolts, mm | 1650/1520 |
| 10 | Weight, kg, not more | 2200 |
- Fast removal of air, vapor, non-aggressive gasses, and vapour-gas mixtures due to a booster;
- Units can be used for servicing and exploitation of oil-filled transformers and high voltage switches up to 1150 kV of voltage;
- Evacuation of a high level.
BV GlobeCore unit can be used for:
- evacuation of electricity network distribution transformers;
- evacuation of power transformers at electric power plants;
- evacuation of traction transformers in electric trains;
- evacuation of mining power transformers;
- evacuation of marine transformers;
- evacuation of electric oven transformers;
- evacuation of step-up transformers in wind power plants;
- evacuation of transformers for the oil and gas industry which are used in oil and gas production complexes to power the extra heavy-duty equipment;
- evacuation of transformers used in airports to power the lighting, navigation systems and other critical equipment;
- evacuation of transformers for irrigation systems used in the agricultural sector to power the pumps and other equipment in large outdoor areas;
- evacuation of transformers used in medical institutions to power the medical equipment that requires a stable power supply;
- evacuation of transformers used in railway signaling and communication systems to power the safety and communication systems on railways;
- evacuation of transformers used in the subway to power the underground electricity supply systems, including the lighting, ventilation systems and escalator drives;
- evacuation of seaport infrastructure transformers used to power the marine cranes, dock loaders, and other waterfront equipment;
- evacuation of transformers for water treatment plants that power the pumps, aeration systems, and other equipment used for water treatment;
- evacuation of transformers used in the chemical industry to power the equipment at the chemical factories producing a variety of chemical substances and materials;
- evacuation of transformers used to power the mining equipment, especially in underground settings where it is important to have a reliable and safe power supply;
- evacuation of transformers for lighting of large sports arenas which ensure powerful and reliable lighting for sporting events at night;
- evacuation of transformers used to power the traffic control systems, including the traffic lights, information boards, and other сomponents of the traffic infrastructure;
- evacuation of transformers used for power supply to hospitals and other medical institutions;
- evacuation of transformers used to power the data processing centers (data centers);
- evacuation of transformers used for power supply to military bases and national security facilities;
- evacuation of transformers used for power supply to emergency response systems and rescue services, including the fire-fighting stations, police stations, and emergency medical services;
- evacuation of transformers used for power supply to telecommunication towers and centers;
- evacuation of transformers used for power supply to banks and financial institutions.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
