CMM-15 Oil Degassing Plant

CMM-15 Oil Degassing Plant

Cap: 15000 LPH | Deep degassing | Vacuum drying | 5 µm filtration

The CMM-15 plant is designed for degassing, removing solids, and heating oil for power transformers with voltages up to 1,150 kV. The unit has a processing capacity of 15,000 liters per hour. It is built as a self-contained system, with all components and operational assemblies protected by metal panels and equipped with gas-spring-loaded doors on the sides and back for easy access.

Request Price

Description
Specification
Advantages
Application
Configurator
Payback Period
Video
Publications

The CMM-15 plant is designed for degassing, removal of solids and heating of oil for power transformers with voltage up to 1,150 kV. The processing capacity of the machine is 15,000 liters per hour.

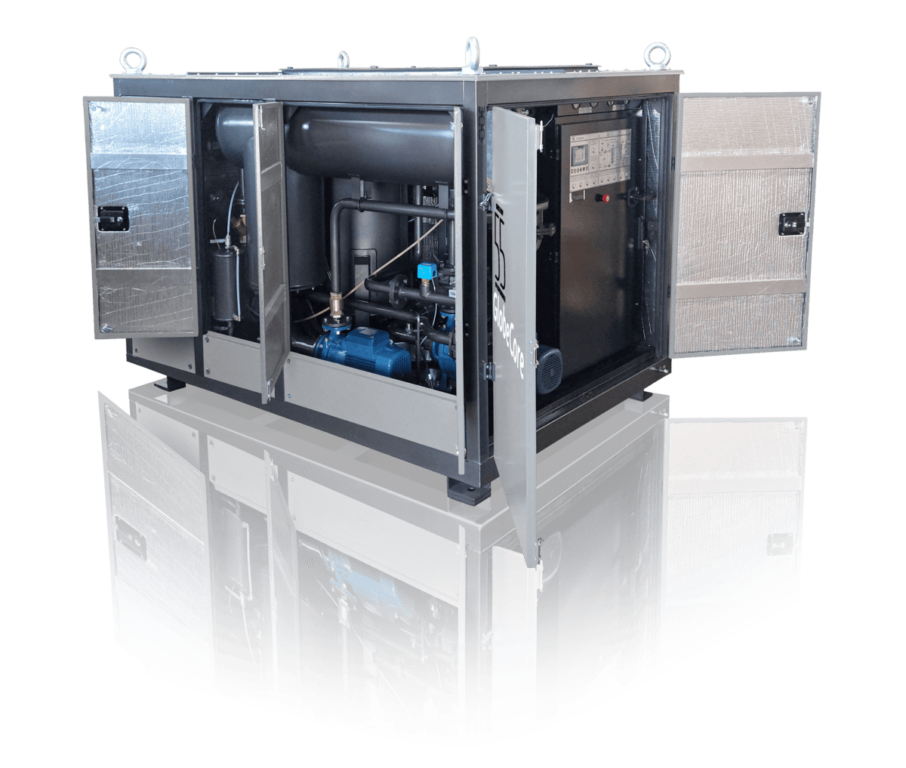

The CMM-15 plant is built as a self-contained unit with all components and operating assemblies protected by metal panels and easy opening gas-spring loaded doors on the sides and back of the unit.

The unit consists of a vacuum chamber, input and output oil pumps, coarse and fine filters, oil trap, oil heater, pipelines with valves, vacuum pump section and a control cabinet.

№	Parameter	Value
1	Capacity (degassing, drying and filtration mode), m³/hour (gpm)	15 (66)
2	Capacity (heating and filtration mode), m³/hour (gpm)	17 (74.84)
3	Processed oil parameters*: volumetric gas content %, max mass moisture content, ppm, max filtration fineness, micron	0.1 10 ppm or 5 ppm or 5 ppm+ (optionally) 1
4	Oil output temperature in heating mode, ºС (ºF)	90 (194)
5	Outlet pressure, MPa (psi)	58 (0.4)
6	Max power, kW	205
7	Residual pressure in vacuum chamber during degassing, Pa (psi)	267 (0.039)
8	Residual pressure in vacuum chamber during air tightness test, Pa (psi)	26.7 (0.0039)
9	Power supply parameters	Any options on customer’s request
10	Dimensions, mm (in)
	— length	4,365 (172)
	— height	2,270 (89)
	— width	2,300 (91)
11	Weight, kg (lbs)	3,100 (6,834)

Note: * initial oil parameters:

volumetric gas content – below 5%;
mass moisture content – below 01% (100 g/ton);
temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power

versatility;
no need to use adsorbents for transformer oil drying;
no air pollution and no waste streams to dispose of or store;
simple operation and servicing;
best oil quality even after one processing cycle;
low power requirements;
low noise levels.

Application:

Unit's total working hours per day, hour

Hourly rate of the unit's service engineer

kWh cost in your region

Cost of one filter for replacement in your region (fineness of filtration - 5 microns)

Cost of one filter for replacement in your region (fineness of filtration - 25 microns)

Filtration cost of 1 m3 of oil made by other contractor

Delivery cost for 1 m3 of oil to the contractor for filtration services

Amount of purified transformer oil per hour, m3/hour

Intermediate parameters

kWh cost consumed by the unit for 1 hour of operation

Annual working hours of the unit, hour

Production cost of 1 working hour

Production cost for filtration of 1 m3 of oil by the contractor

Savings (difference between production cost from the contractor and your production cost of filtation with GC unit)

Required amount of oil to return investments for the unit, m3

Total amount of oil purified by the unit during 1 working day, m3

Payback period for the unit, days
