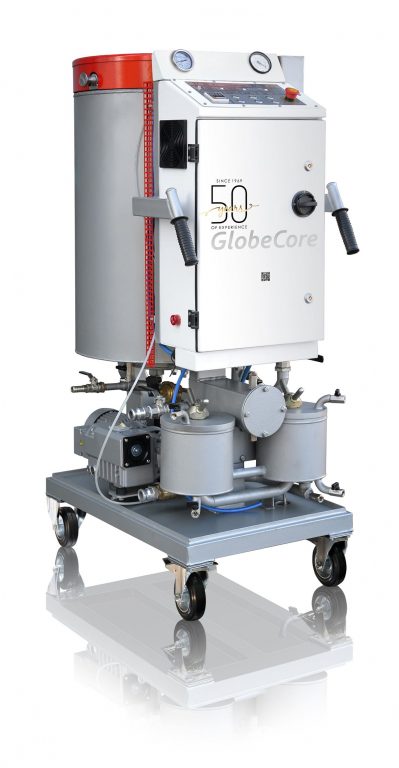

CMM-1.0LT Transformer Oil Purification Unit
CMM-1.0LT
-
Advantages
- сompactness;
- mobility;
- ease of control;
- used to purify industrial oils of various types: turbine, hydraulic, compressor, etc.
СММ-1.0LT unit is designed for thermal vacuum drying and filtration of industrial oils used in lubrication, sealing, hydraulic control systems of gas turbine and gas pumping units, gas engine compressors, and in transformers. In addition to oil purification, CMM-1.0LT may be used for heating and drying the oil-filled electrical devices.
Principle of operation
The oil driven by vacuum passes through a coarse filter with the filtration fineness of 200 microns after which it gets inside a vacuum tank where a heater is located. Rising from bottom to top, the oil heats up and gets into the other part of the chamber through a special channeled lid coming directly to special fillers. Next, the oil flows down the fillers, while the moisture vapor and gases are removed from the oil by vacuum. Then, the oil is pumped out from the tank bottom through two fine filters to the unit outlet. The filtration fineness of the filters can be selected at 5, 3, 1, or 0.3 microns.
Design features
The heater is located inside the vacuum tank which made it possible to reduce the unit dimensions and to diminish the heat losses while heating the oil.
The oil is sucked into the vacuum chamber due to the underpressure generated by a two-stage vacuum system consisting of a backing pump and a booster pump. A new layout has been applied to the rest of the unit components. All of these innovations have given good results in terms of the small equipment size.
|
Parameter |
Value |
|
| 1. Capacity, m3/h (gpm), not less than | ||
| – in the thermal vacuum drying and filtration mode |
1.0 (4,4) |
|
| 2.* Processed oil parameters (in several passes): | ||
| – total gas content, %, not more than |
1,5 |
|
| – oil moisture mass content, ppm, not more than |
10 ppm or 5 ppm or 5 ppm+ (optionally) |
|
| – industrial purity class of ISO 4406 |
-/14/12 |
|
| 3. Max output oil temperature, ºС (ºF) |
55 (131) |
|
| 4. Output pressure, bar (psi) |
3 (43,5) |
|
| 5. Oil heater power, kW, not more than |
12 |
|
| 6. Max power requirement, kW, not more than |
15 |
|
| 7. Electric current parameters | ||
| – voltage, V |
380 |
|
| – AC with frequency, Hz |
50 |
|
| – number of phases |
3 |
|
| 8. Dimensions, mm (in), not more than (w/o trailer/with trailer) | ||
| – length |
910 (36)/2450 (96) |
|
| – width |
620 (24)/1420 (56) |
|
| – height |
1500 (59)/1910 (75) |
|
| 9. Weight, kg, not more than (w/o trailer/with trailer) |
280 (617)/730 (1600) |
|
Note:
* At initial parameters of oil:
- volumetric gas content — not more than 10.5%;
- moisture mass content — not more than 0.005% (50 ppm);
- temperature — not lower than 0ºС (32ºF)
- when the oil passes through the unit multiple times.
Aplication :
- сompactness;
- mobility;
- ease of control;
- used to purify industrial oils of various types: turbine, hydraulic, compressor, etc.
Aplication :
The CMM-1.0LT unit can be used for:
- turbine oil filtration;
- transformer oil filtration;
- hydraulic oil filtration;
- industrial oil filtration;
- cable oil filtration;
- compressor oil filtration;
- gear oil filtration;
- silicone oil purification;
- purification of dielectric fluid Midel 7131;
- FR3 natural ester transformer fluid purification;
- oil purification of X-ray machines;
- purification of fire-resistant turbine oil Fyrquel.
Aplication :
Aplication :
Aplication :
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
