Vortex layer device

Disintegrator machine from GlobeCore

Vortex layer device for DRY CONSTRUCTION MIXTURES

Mechanical activation,mixing, milling and grinding with One Unit

The Vortex Layer Device, or the AVS unit, has been tested in various industrial facilities. Practice shows that AVS efficiently replaces such devices as ball, vibration, hammer mills, various pulverizers and dispersers. AVS units are used as reactors, mixers etc.

Who the machine is designed for?

The construction industry and all possible manufacturers of construction materials.

The use of AVS in production of various construction materials, such as nano-modified concrete, finely dispersed cement, extra-strong silex bricks, dry paint pigments etc, is very promising.

milling

WHAT DOES THE UNIT OFFER?

  • improve the quality of final product;
  • increase product yield;
  • reduce production time and energy consumption;
  • simplify production process;
  • make you more efficient day by day.

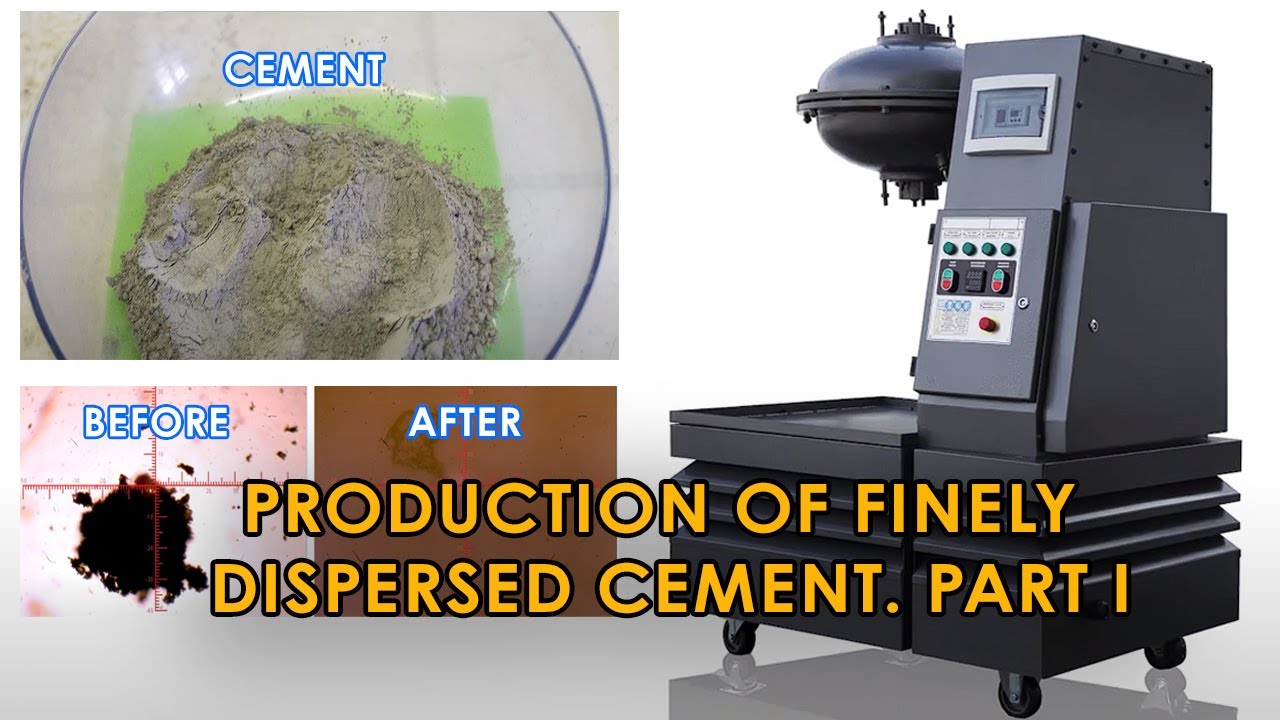

PULVERIZING SOLID MATERIALS: PORTLAND CEMENT

The main feature of the AVS devices, while pulverizing solid materials, are the multiple and frequent shocks and friction forces, which does not only cause pulverization of solid particles, but also activation of their surface due to deformation of the crystal lattice.

Since cement hydration begins on the surface of cement particles, the total area of the particles defines the amount of material which can be hydrated. Therefore, the rate of hydration depends on the particle size, fine grinding being necessary for quick increase of strength.

To confirm this, we experimented by atomizing 400 grade Portland cement for use as an additive in quick settling cement mix for high vibration and dynamic forces.
In this test we used 500 grams of 400 grade Portland cement, pulverized by steel ferromagnetic elements for 30 minutes.

As a result, the treatment of cement/concrete on AVS allows to:

  • reach 15-25% of cement economy;
  • increase concrete strength in 2-3 times;
  • reduce concrete primary crystallization time up to 4-6 hours (i.e. in 4-6 times);
  • obtain monodisperse fraction 0.5-10 micron 45-50%;

Technical specification

Parameter Type
AVS-100
Max processing rate, m3/hour– water water treatment 12
– suspension production 5
Operating pressure, MPa (kg/cm2), max: 0,25 (2,5)
Work zone diameter, mm 90
Magnetic induction in work zone, Т 0,15
Electric supply From AC network
Frequency, Hz 50
Voltage, В 380
Rotation of magnetic field in work area, RPM 3 000
Power consumption, kW 4,5
Dimensions, mm 1200×900×1610
Weight, kg 520

Pigment milling

Grinding of 400 grade portland cement

FINE-DISPERSED CHALK PRODUCTION

Vortex layer devices intensify the process of obtaining fine-dispersed chalk and receive high quality products. Devices are reliable and can be easily installed in the premises without special foundations. When choosing a particular arrangement (in sequence, parallel, etc.), almost any production line for fine-dispersed chalk could be achieved.


PRODUCTION OF FOAM CONCRETE

Using AVS allowed to reduce foaming agent consumption by 10%, lime consumption by 2%, without making the product heavier.The specific weight was reduced, while strength to weight ratio increased. The quality of foamed concrete can be increased by processing the lime-sand or cement-sand mix in the vortex layer to activate SiO2.


NANOTECHNOLOGIES IN CONCRETE PRODUCTION

Tests show that the samples prepared using only magnetic water, are 20-25% less durable. This is due to the improved quality of mix preparation in the vortex layer. Additive content over 1% shows decrease of strength, both flexing and compressive. The use of modified concrete allows to reduce metal amount per structure and to reduce costs.


PRODUCTION OF SILEX BRICK

The strength of the brick are directly correlated to the activation of SiO2 and uniform distribution of the components. Lime and sand mix was sifted through the AVS-100 unit. It is interesting that such brief processing (fractions of a second) did not cause pulverization of sand and lime.


QUARTZ SAND PULVERIZATION

The vortex layer devices have one important advantage: they can easily be retrofitted into the existing production lines to improve product quality.
Research shows that it only takes 2 minutes to pulverize 200 g of quartz sand to 1 micron in the vortex layer device, using 300 grams of 3 mm ferromagnetic particles.


PAINT AND LAQUER PRODUCTION

Intensive dispersion of solid material with simultaneous particle activation can be applied in paint production and laquer production. Iron oxide pigments, for instance, can be dispersed to the size less than 20 micron in 15-60 seconds in the AVS vortex layer device; in a ball drum, the same process takes several hours.

Extra services:

  • Personnel trainning;
  • Commissioning;
  • Our technician can travel to your location for start-up and commissioning of the unit;
  • Shipment assistance;
  • Special devices to protect the cargo from vibration, capsizing etc.
