The CMM-MSD is an online dielectric oil drying and moisture removal unit that operates directly on energized transformers. It maintains oil dryness and dielectric strength during operation. We will prepare a quotation with delivery details.

Online drying systems for transformer insulating oil are becoming increasingly important in modern asset management strategies, especially where continuous operation and minimal downtime are required.
These systems are designed to efficiently remove dissolved moisture from dielectric oil while the transformer remains in service, helping to prevent insulation degradation and maintaining stable dielectric strength over long-term operation.

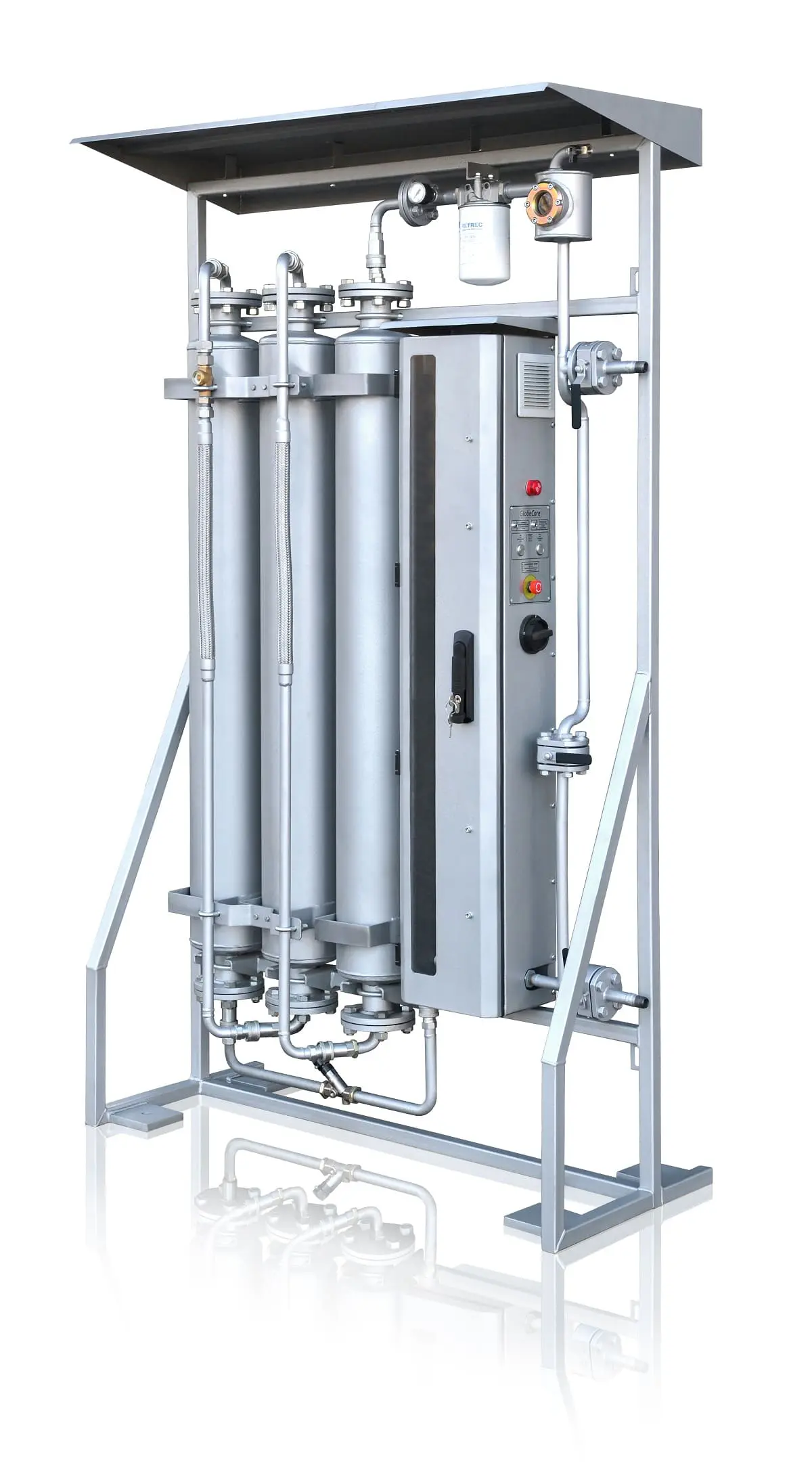

The image illustrates a CMM-260C online transformer dry-out system, designed for continuous moisture extraction from insulating oil without interrupting transformer operation. Such systems are typically integrated into closed-loop circulation circuits, where controlled adsorption processes ensure progressive reduction of water content in both oil and cellulose insulation.
This approach allows maintaining stable dielectric parameters over extended service periods, especially in machines operating under high electrical and thermal stress conditions.

Online drying systems for transformer insulating oil are becoming increasingly important in modern asset management strategies, especially where continuous operation and minimal downtime are required.
These systems are designed to efficiently remove dissolved moisture from dielectric oil while the transformer remains in service, helping to prevent insulation degradation and maintaining stable dielectric strength over long-term operation.
The image illustrates a CMM-260C online transformer dry-out system, designed for continuous moisture extraction from insulating oil without interrupting transformer operation. Such systems are typically integrated into closed-loop circulation circuits, where controlled adsorption processes ensure progressive reduction of water content in both oil and cellulose insulation.
This approach allows maintaining stable dielectric parameters over extended service periods, especially in machines operating under high electrical and thermal stress conditions.

Your summary is spot on: on-line transformer dry-out systems are a practical way to preserve dielectric strength and slow cellulose ageing while keeping the unit in service. The CMM-260C family is an example of that approach: it is designed for closed-loop circulation and progressive adsorption of dissolved moisture from oil and from the solid insulation, so dielectric parameters are maintained under continuous electrical and thermal stress. Regular operation with an on-line dryer reduces the frequency of major offline drying campaigns and the risk of accelerated ageing or partial discharge caused by elevated moisture levels.

For procurement and integration planning, note that GlobeCore’s on-line systems use zeolite cartridge adsorption with dedicated regeneration modules (BRZ/BRPS) to restore sorbent performance. Those regeneration blocks use a hot‑air regeneration method (heater power about 10.8 kW, blower throughput roughly 2.3 m3/min and hot air up to ~250 °C) and are compact units (roughly 1.1 m × 0.65 m footprint, ~210–220 kg). Typical operational goals are to drive oil water content into the low tens of ppm and progressively reduce paper moisture to low single‑digit percent over weeks to months, monitored by oil Karl Fischer titration and humidity/dew‑point sensors in the circulation. To prepare a precise quote or sizing, provide transformer type and rated power, oil volume and oil type (mineral/ester), target water content or dew point, connection points and allowable pressure drop, maximum working temperature, whether the transformer remains energized during installation, required mobility (fixed vs trailer), power supply available, and any hazardous‑area/ATEX requirements. If you want, I can draft a sample RFQ text you can send to GlobeCore or help size a system around the specific transformer data you supply.

Your summary is accurate: on-line transformer dry‑out systems remove dissolved moisture from dielectric oil and, by re‑establishing moisture gradients, help extract water from solid insulation while the unit stays energized, so dielectric strength and long‑term insulation life are preserved. The CMM‑260C family is a representative GlobeCore solution for that purpose — it connects to transformers of any type for temporary or permanent installation, uses zeolite/sorbent cartridges that capture water regardless of oil temperature (allowing drying without oil heating), and supports continuous operator control. For sizing and procurement reference, typical published performance points include a minimum throughput of about 30 L/h, sorbent water uptake up to around 9 L with adsorbent loads on the order of 20 kg per column, and compatibility with closed‑loop circulation where dew point/Karl‑Fischer monitoring is used to track progress. Regeneration is handled by dedicated BRZ or BRPS hot‑air blocks (hot‑air regeneration, heater power ~10.8 kW, blower ~2.3 m3/min, air up to ~250 °C) which restore cartridge performance for repeated campaigns.

To prepare a precise quote or recommend a final configuration I’ll need the transformer specifics: rated power and type, total oil volume and oil type (mineral or ester), current oil water content and your target ppm or target dew point, available connection points and maximum allowable pressure drop, whether the unit must be installed while energized, site power supply and any mobility/packaging constraints (fixed skid, container, or trailer), and any hazardous‑area or local certification requirements. If you prefer, I can draft a ready‑to‑send RFQ text for GlobeCore or size a CMM‑260C configuration around the transformer data you provide; note that if you specifically require a CMM‑MSD model, that model isn’t in the available spec set I have here, so I’ll base recommendations on the CMM‑260C family and the BRZ/BRPS regeneration options unless you tell me otherwise.
