GlobeCore’s AVSk-150 wastewater treatment machine is a cutting-edge option for industrial businesses, offering effective fluoride wastewater treatment. Wastewater tainted with fluoride poses a significant threat to the environment because fluoride compounds can build up in the environment and harm ecosystems and living things. Strict environmental requirements were taken into consideration when designing AVSk-150, which offers a high level of wastewater treatment and shields the environment from dangerous emissions.
The superior filtration and chemical treatment technologies underpin the AVSk-150’s operation. To remove fluoride from wastewater, the plant uses a multi-stage treatment system that combines chemical and physical processes. Fluoride is bonded and precipitated into harmless molecules that can be recycled as a result of these processes. Water treated with AVSk-150 so satisfies environmental requirements.

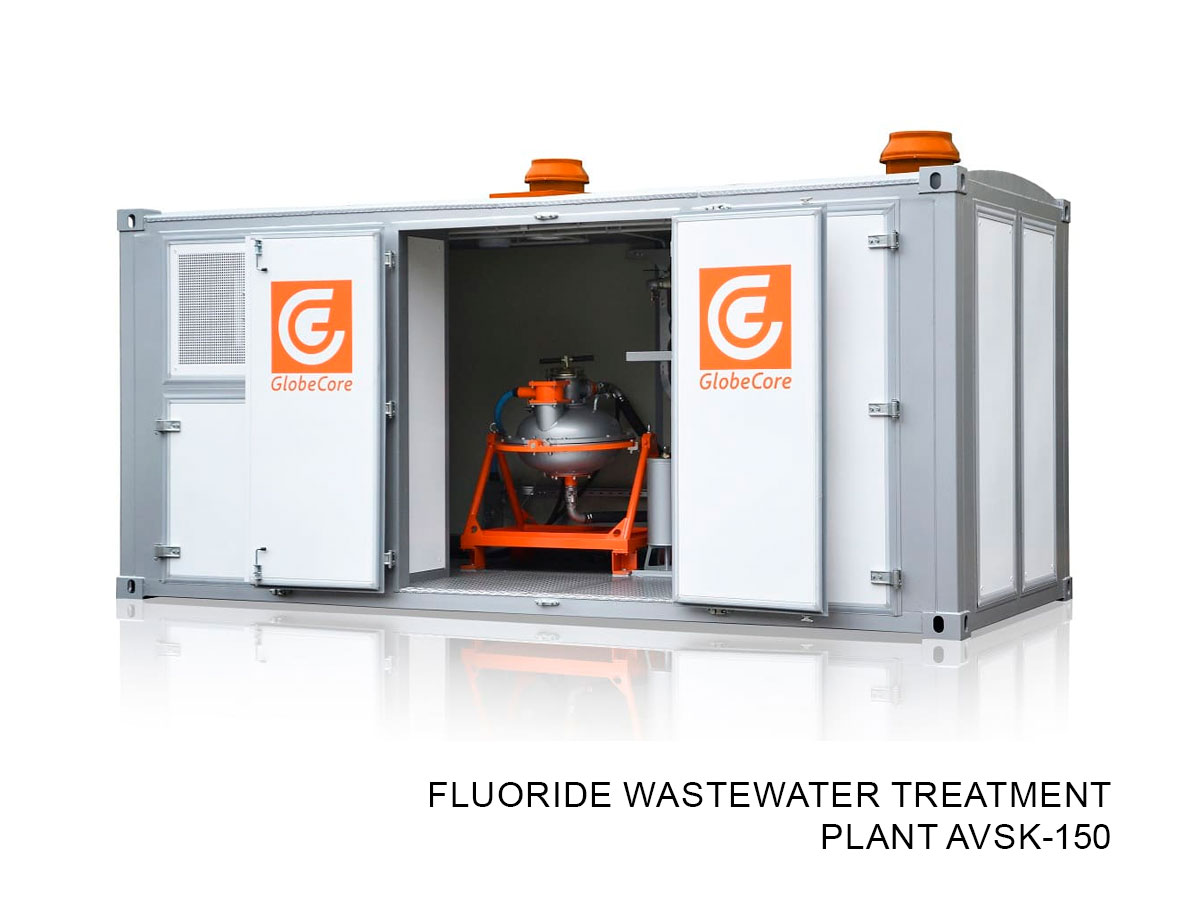

Fluoride wastewater treatment plant AVSK-150 Specifications
| No |
Parameter |
Value |
| 1 |
Wastewater purification capacity for heavy metals removal, m³/hour (gpm) (max) |
18 (80) |
| 3 |
Process chamber length, mm (in) |
156 (6) |
| 4 |
Magnetic induction in the center of the bore, Т |
0,12 |
| 5 |
Max flow velocity, m/sec (in/sec) |
0,2 (8) |
| 6 |
Max pressure in the process chamber, MPa (psi) |
0,16 (23) |
| 7 |
Dynamic viscosity of the material, Pa·sec (lbf·s/ft²) |
1 (0,02) |
| 8 |
Max product temperature, ºС (ºF) |
70 (158) |
| 9 |
Power source parameters |
Custom |
| 10 |
Active power, kW |
9,5 |
| 11 |
Total max power, kVA |
22 |
| 12 |
Capacitor, kVAr |
40+25+25 |
|
13 |
Max dimensions, mm (in): Container: – length – width – height AVS unit: – length – width – height AVS control section: – length – width – height |
4800 (189) 2100 (83) 2500 (98)
1060 (42) 910 (36) 1250 (49)
1050 (41) 800 (31) 1960 (77) |
| 14 |
Weight, kg (lb), max: Container (with the unit and purification system included) Process section Control section |
5000 (11000) 380 (830) 300 (660) |
