USB-6 Impeller Stirrer
USB-6
-
Advantages
- universality. The stirrers are installed in different containers are used to obtain various products ;
- multifunctional. The stirrers are used for dissolving, emulsifying, weighing solids (mass content of particles up to 50%), heat transfer intensification, temperature equalization, fibrous materials mixing.
Impeller stirrer USB-6 is designed for mixing liquid layers in a container or tank. It is used for producing different emulsions and suspensions, including antiseptic and disinfectants.
Principle of operation

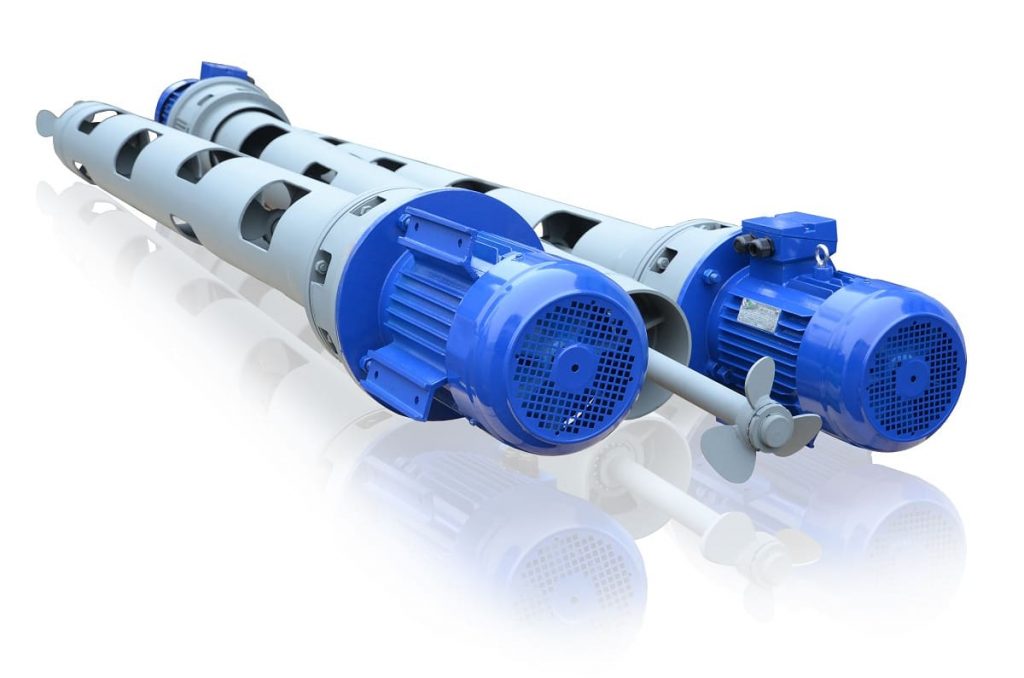

Stirring device consists of a rotating shaft, on which propellers are installed at several levels, which push the liquid along the guide tube. The guide tube has window-holes, through which the liquid is drawn inside – thus equable mixing is achieved regardless of the liquid level inside the container.
The devices are designed for vertical mounting on horizontal tanks. A hole is made in the container into which the mixer is inserted. The agitator flange is welded to the vessel.
| № |
Parameter name |
Value |
| 1 |
Rotation frequency, rpm |
750 |
| 2 |
Mixer immersed part length, m |
1,5-2 |
| 3 |
Installed power, kW (not more) |
5,5 |
| 4 |
Overall dimensions, mm* |
|
|
– length |
1180 |
|
|
– width |
1000 |
|
|
– hight |
1800 |
|
| 5 |
Weight, kg, (not more) |
105 |
* – overall dimensions are given taking into account the dimensions of the container, which is not included in the standard delivery set.
Equipment configurations that are not included in this configurator can be implemented via a separate request to [email protected].
- universality. The stirrers are installed in different containers are used to obtain various products ;
- multifunctional. The stirrers are used for dissolving, emulsifying, weighing solids (mass content of particles up to 50%), heat transfer intensification, temperature equalization, fibrous materials mixing.
Application Fields of GlobeCore Impeller Mixers
GlobeCore impeller mixers can be used in chemical, construction, food, pharmaceutical, cosmetic, petroleum, and other industries.
Application of GlobeCore impeller mixers in chemical industry:
- preparation of chemical agents in chemical reactions;
- mixing of chemical agents and cellulose for paper pulp production;
- production of insecticides and fungicides for plants;
- production of liquid fertilizers for plants;
- homogenization of pesticides and other agricultural chemicals for spraying of plants;
- production of liquid detergents and household chemicals;
- production of repellents against malaria mosquitoes;
- varnish production;
- paint production;
- bitumen production;
- rubber production;
- homogenization of mixes for production of plastics and polymers;
- homogenization of glass masses for producing different types of glass.
Application of GlobeCore impeller mixers in construction industry:
- production of liquid construction grouts and mixes;
- production of water-soluble materials for wall finishing;
- plasters production;
- glue production;
- sealants production;
- production of waterproof coatings.
Application of GlobeCore impeller mixers in food industry:
- beverages production;
- sauce and marinade production;
- yogurt production;
- ice-cream production;
- juices production;
- beverages oxygenation;
- wine blend preparation;
- beer production;
- production of liqueurs and alcoholic
Application of GlobeCore impeller mixers in pharmaceutical industry:
- saline solutions production;
- antiseptics production;
- syrup production;
- liquid medicines production;
- suspension production;
- medical cream and ointment obtaining;
- extracts obtaining;
- vaccines production;
- production of various multi-ingredient medicines.
Application of GlobeCore impeller mixers in cosmetic industry:
- cosmetic cream production;
- shampoo production;
- lotions production;
- liquid soap production;
- toothpaste production;
- mouth rinses production;
- perfume production.
Application of GlobeCore impeller mixers in petroleum industry:
- resins production;
- as mixers for petroleum products.
Application of GlobeCore impeller mixers in other industries:
- mixing of germ cultures in bioreactors;
- homogenization of biotic substrates for biofuel production;
- homogenization of coal slurry in coal power plants for improved combustion efficiency;
- wastewater treatment: mixing of wastewater with chemical agents, flocculants and coagulants, adding of disinfectants, for example, chlorine, hypochlorite, and ozone;
- mixing of chemical agents and ores for efficient recovery of minerals;
- mixing of germ cultures in a laboratory setting;
- when processing the livestock and chicken manure.
