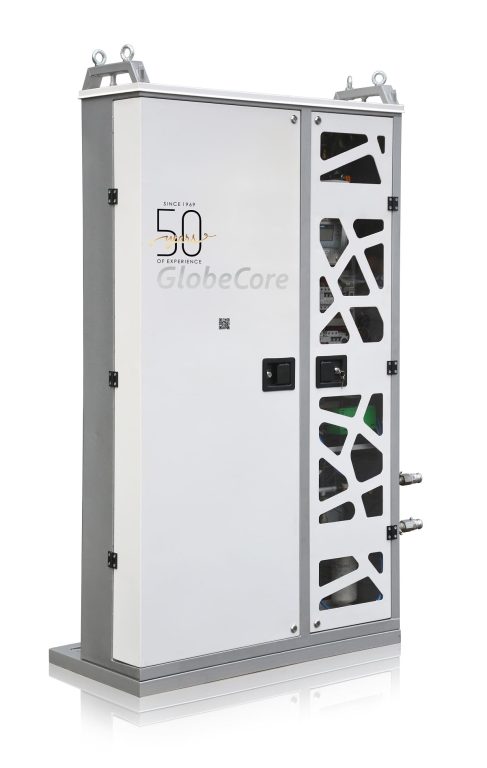

The TOR-4 transformer oil drying unit is designed to remove water from the transformer, keeping it dry independently of the temperature and the state of water in the oil.
Ambient conditions for operation:
- ambient temperature 278 to 313К (+5 to + 40)°С;
- atmospheric pressure 84 to 106,7 kPa(630 to 800 mm. Hg.);
- elevation above sea level up to 2000 m;
- in open air under a canopy;
- indoors with ventilation.
Principle of operation
The TOR-4 online transformer dry-out system is equipped with adsorbers filled with zeolite sorbent, which absorbs water molecules as the treated liquid passes through it.
If necessary, the adsorbers can be easily dismantled and replaced with new ones, or the sorbent can be reactivated using the BRPS (BRZ) zeolite regeneration unit.
The system is connected to the transformer by rigid or flexible pipework. A pump pumps the oil from the transformer through the filter, then pumps it through the adsorbers (where moisture is removed from the oil) and the filter back to the transformer.
The operation of the system is monitored by a logic controller. The controller displays the moisture content of the oil before and after drying, the pressure on the filter, and the operation of the injection pump.
To protect the transformer against leakage, the oil level in the transformer is monitored. The required level is set and maintained in the controller. In case of oil leakage, automatic valves cut off oil flow from the transformer and the TOR-4 system stops.
| № |
Parameter
|
Value
|
| 1 |
Capacity in drying mode, l/hour |
30
|
| 2 |
Amount of adsorbed water, l |
9
|
| 3 |
Sorbent load per one column, kg |
21
|
| 4 |
Output pressure, bar |
2
|
| 5 |
Output head, m |
20
|
| 6 |
Max power requirement, kW |
0,2
|
| 7 |
Power supply |
| Phases |
3p+1N+PE
|
| Voltage, V |
220
|
| Frequency, Hz |
60
|
| 8 |
Connections |
| Oil inlet, Dn |
20
|
| Oil outlet, Dn |
20
|
| 9 |
Dimensions, mm, max |
| length/length |
1180
|
| width/width (frame design) |
350/550
|
| height/height (frame design) |
2035/2085
|
| 10 |
Weight, kg, max |
500
|
- connection to a transformer of any type and age;
- the process of connection takes less than an hour;
- the sorbent captures water regardless of its temperature and form;
- the machine dries the oil without heating and does not require constant operator control;
- the machine can be installed temporarily or permanently;
- a robust housing that reliably protects the system;
- once saturated with water, the sorbent can be reactivated using the BRPS (BRZ) unit and reused for oil drying.
TOR-4 GlobeCore system can be used for:
- drying of electricity network distribution transformers;
- drying of power transformers at electric power plants;
- drying of traction transformers in electric trains;
- drying of mining power transformers;
- drying of marine transformers;
- drying of electric oven transformers;
- drying of step-up transformers in wind power plants;
- drying of transformers for the oil and gas industry which are used in oil and gas production complexes to power the extra heavy-duty equipment;
- drying of transformers used in airports to power the lighting, navigation systems and other critical equipment;
- drying of transformers for irrigation systems used in the agricultural sector to power the pumps and other equipment in large outdoor areas;
- drying of transformers used in medical institutions to power the medical equipment that requires a stable power supply;
- drying of transformers used in railway signaling and communication systems to power the safety and communication systems on railways;
- drying of transformers used in the subway to power the underground electricity supply systems, including the lighting, ventilation systems and escalator drives;
- drying of seaport infrastructure transformers used to power the marine cranes, dock loaders, and other waterfront equipment;
- drying of transformers for water treatment plants that power the pumps, aeration systems, and other equipment used for water treatment;
- drying of transformers used in the chemical industry to power the equipment at the chemical factories producing a variety of chemical substances and materials;
- drying of transformers used to power the mining equipment, especially in underground settings where it is important to have a reliable and safe power supply;
- drying of transformers for lighting of large sports arenas which ensure powerful and reliable lighting for sporting events at night;
- drying of transformers used to power the traffic control systems, including the traffic lights, information boards, and other сomponents of the traffic infrastructure;
- drying of transformers used for power supply to hospitals and other medical institutions;
- drying of transformers used to power the data processing centers (data centers);
- drying of transformers used for power supply to military bases and national security facilities;
- drying of transformers used for power supply to emergency response systems and rescue services, including the fire-fighting stations, police stations, and emergency medical services;
- drying of transformers used for power supply to telecommunication towers and centers;
- drying of transformers used for power supply to banks and financial institutions.
